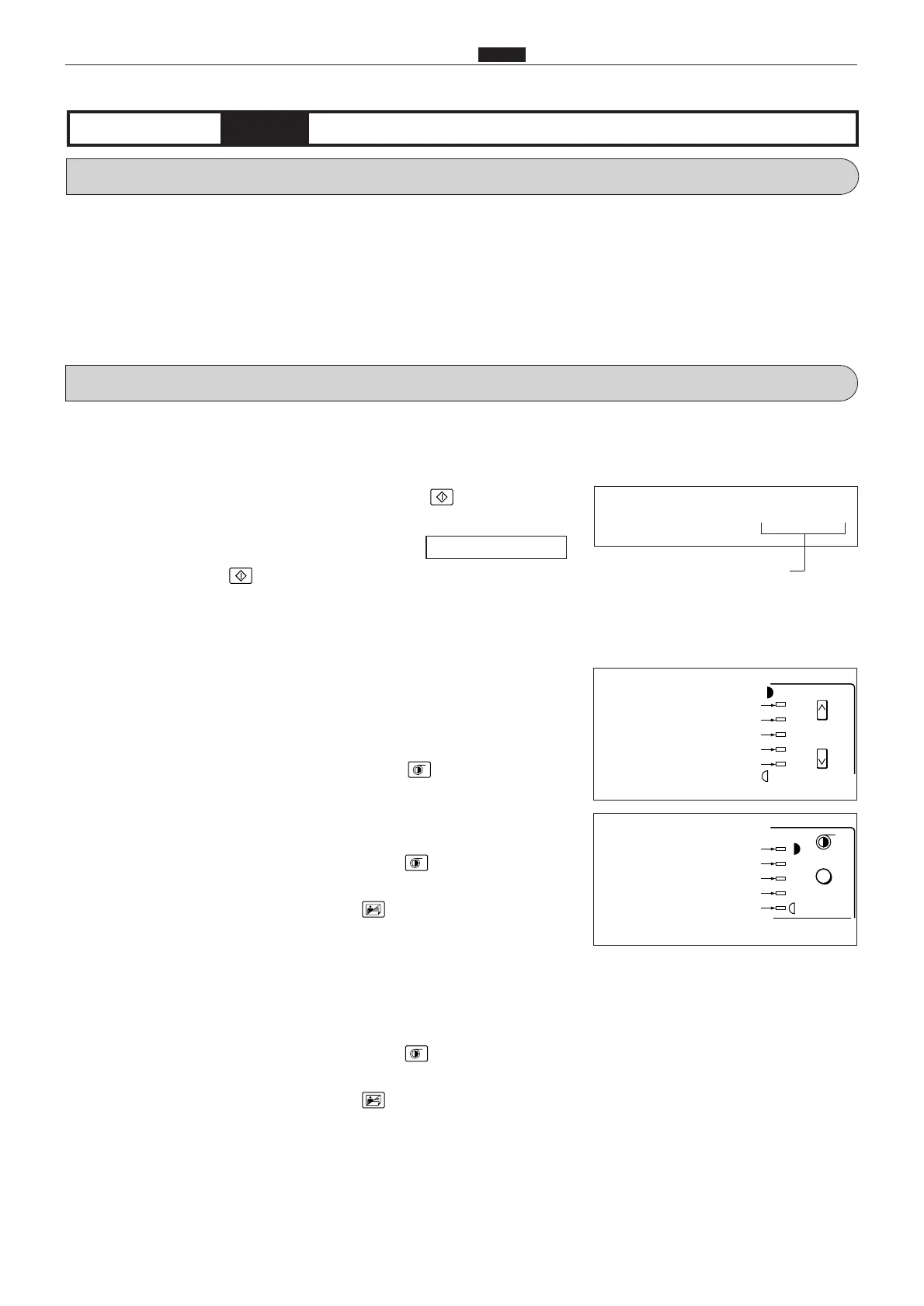

c HELP Mode Function and Operation Procedures
chap.7
w
Select one of the items below, and follow the procedure given for it.
SS
Display of document size
¡ Display of sensed size of document (in primary scanning
direction) on the document glass:
a Use the PLATEMAKING DARKNESS key to select the
DARKER2 item.
¡ Display of sensed size of document (in primary scanning
direction) in the ADF:
a Use the PLATEMAKING DARKNESS key to select the
DARKER1 item.
Press the TEXT/PHOTOGRAPH key as many times as
needed to select the TEXT item.
Provided there is a document in the ADF, it will be fed and
ejected, and its size will be sensed, automatically.
¡ Display of sensed size of document (in secondary scanning
direction) in the ADF:
a Use the PLATEMAKING DARKNESS key to select the
DARKER1 item.
Press the TEXT/PHOTOGRAPH key as many times as
needed to select the PHOTOGRAPH item.
Provided there is a document in the ADF, it will be fed and
ejected, and its size will be sensed, automatically.
1. Functions
(1) Display of document size and document darkness
values (for use in factory checks)
(1) Display of document size and document darkness
values (for use in factory checks)
q
Access HELP mode H-11, and press the PRINT key.
For the basic procedure for accessing HELP modes.
¡ When the PRINT key is pressed, the optical system will move
to the position for sensing the document size, and the indicators
will light. The sensed size will be displayed (as a 3-place value,
[***]).
2. Operation procedures
H-11
(1) Sensor/switch condition displayHELP mode
***
Sensed size display
