z Electorical Parts Layout and Their Functions
chap.8
CN 7
CN 6CN 5CN 4
CN 3
CN 2
CN 1
CN 19
CN 20
CN 8
CN 11
CN 18
CN 16
CN 15 CN 14 CN 13 CN 12
CN17
U 43
U 54
U 33
SW 1
CN21
CN22
CN 10
CN 9

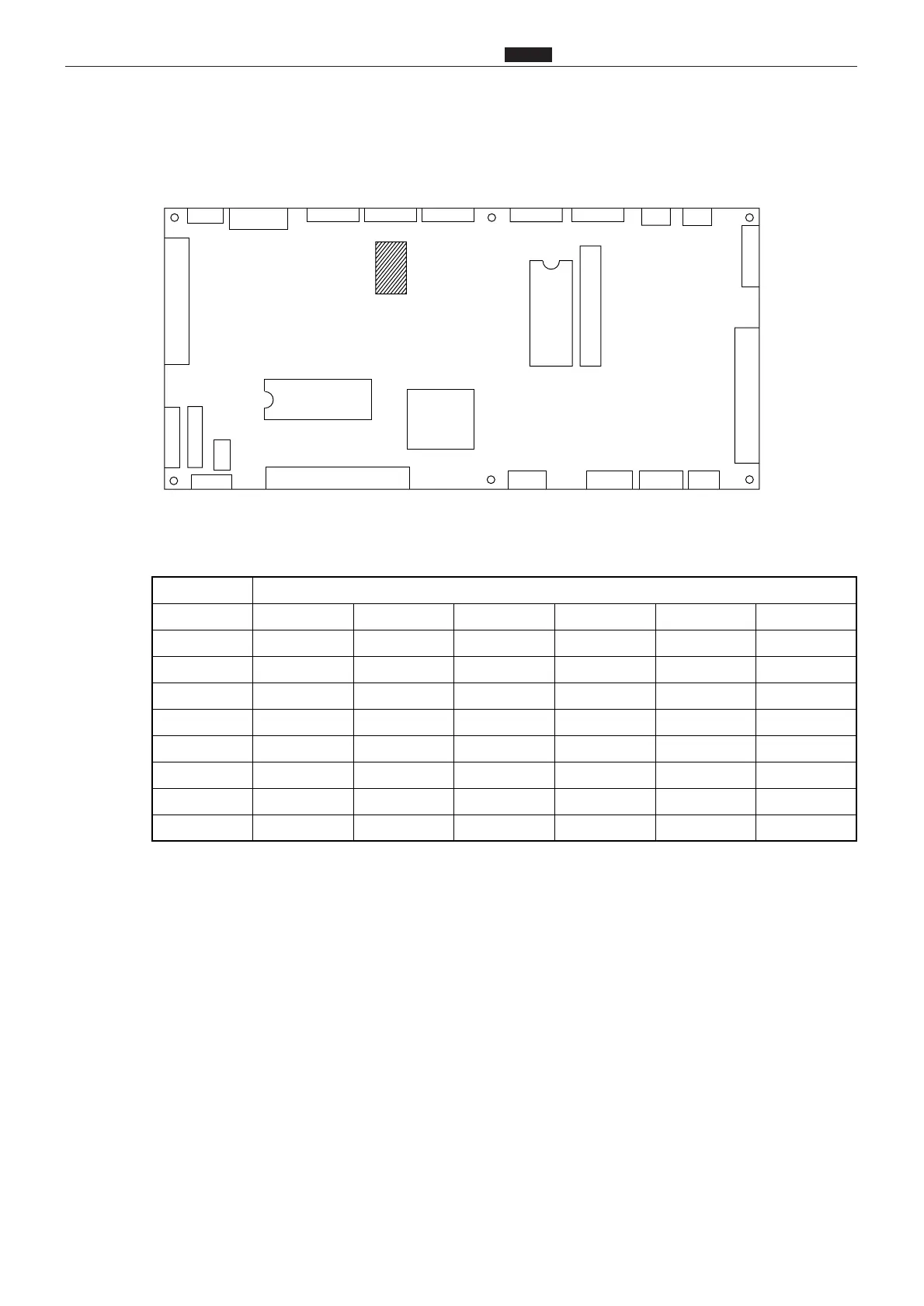

8) Main PCB unit
The switches of SW1 of service part main PCB units are all set to OFF at shipment. Therefore,
they must be set in accordance with the machine model before installation.
Settings for the different models
The table below shows the correct SW1 switch settings for the different machine models.
Model
SW1 43E 43S 33E 33S 31E 31S
1
OFF OFF OFF OFF ON ON
2
OFF OFF ON ON OFF OFF
3
ON ON OFF OFF OFF OFF
4
ON OFF ON OFF
ON
OFF
5
OFF OFF OFF OFF OFF OFF
6
OFF OFF OFF OFF OFF OFF
7
OFF OFF OFF OFF OFF OFF
8
OFF OFF OFF OFF OFF OFF
