Duplo Duprinter DP-43S User Manual

374

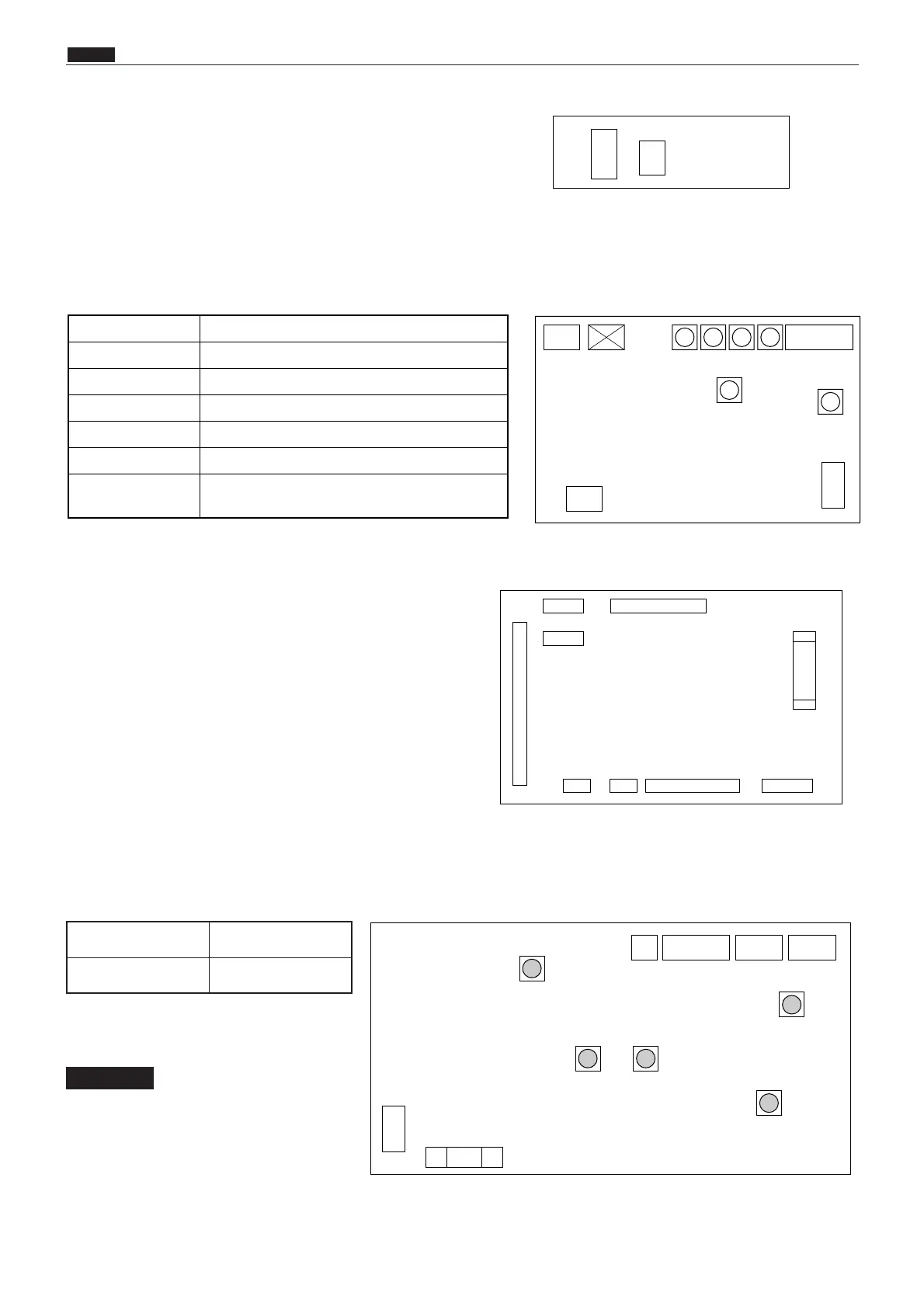

z Electorical Parts Layout and Their Functions
chap.8
CN 1 U 1
FUSE
125V
4A
CN 4
CN 6
CN 3
CN 7 CN 8 CN 2 CN 1
CN 5
9) Battery PCB '98 unit
11) Drive PCB unit
CN 2
CN 3
CN 4 CN 5
CN 1
VR3
VR1
VR4
VR2
VR5
FUSE
125V 5A
VR
VR1 - VR5
Function
*Voltage timing
adjustment
Asterisk indicates adjusted prior to
shipment.
12) Regulated power supply
¡
Do NOT move the above VRs
(variable resistors).
IMPORTANT
10) Main Motor PCB unit
VR Function
VR SLOW1 Adjusting slow speed 1
VR SLOW2 Adjusting slow speed 2
VR PRINT Adjusting print speed: 1st speed - 3rd speed
VR PRINT4 Adjusting print speed: 4th speed
VR PRINT5 Adjusting print speed: 5th speed
VR JOG
Adjusting JOG speed (speed implemented by
pressing drum rotation switch)
CN 3
CN 2
CN 1
CN 5
CN 4
PRINT4
PRINT PRINT5
JOG
SLOW1 SLOW2
