Codepad Indicators 47
CP5 Eight Zone LCD Codepad
The codepad is the communications interface between you and your alarm
system. The codepad allows you to issue commands and offers both visual
and audible indications that guide you through the general operation.
The codepad incorporates numerous indicators. There are
ZONE
indicators
that are used to show the condition of each zone and seven others for general
status. The following is a list of situations and the relevant indications that
will be seen.

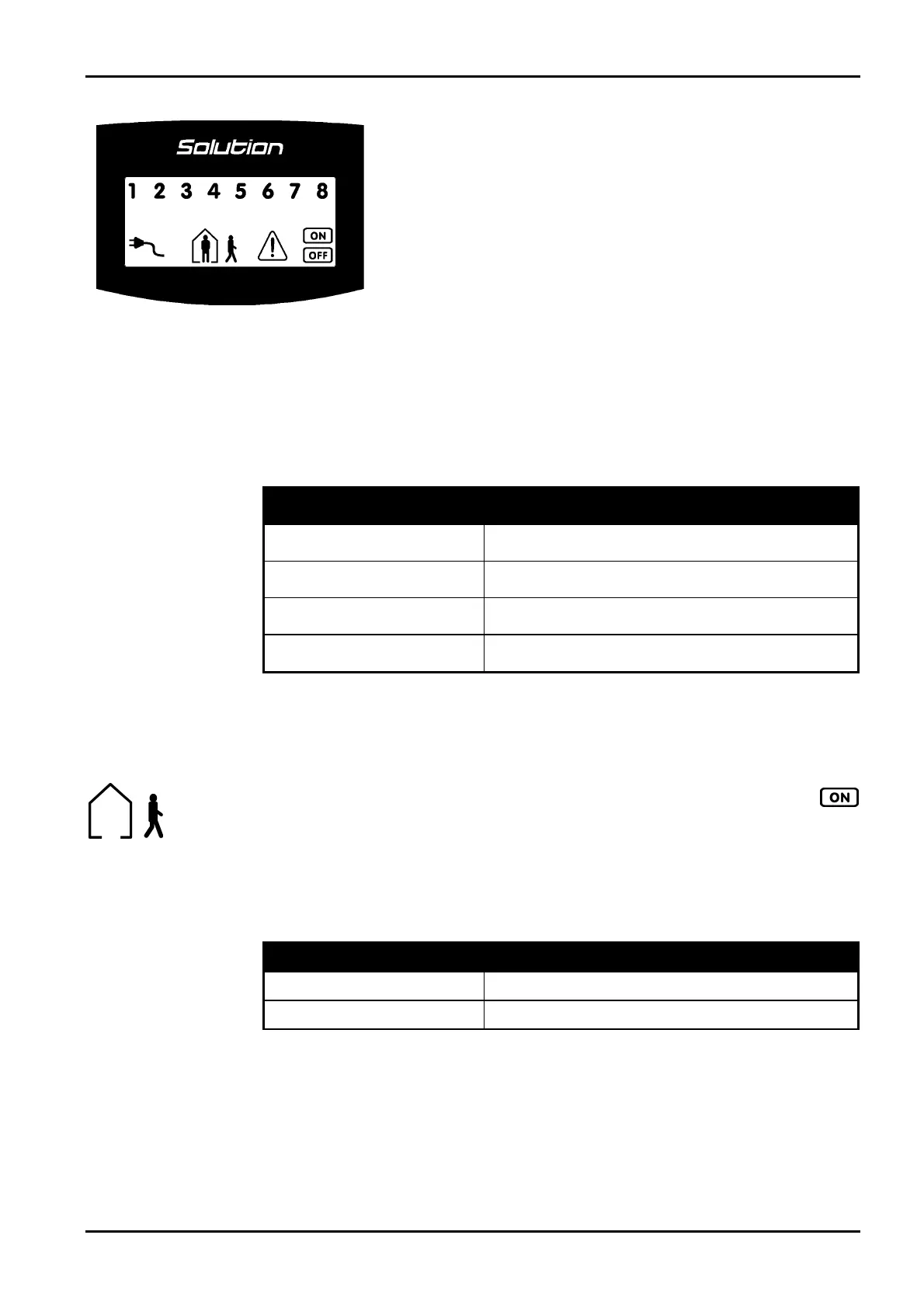

Figure 2: CP5 Eight Zone LCD Codepad
(CP508L)
Zone Indicators
The
ZONE
indicators are used to display the status of the zones. The following table lists the
1 2 3 ....
various circumstances that the indicators will display (i.e. Zone Sealed, Zone Unsealed).
Indicator Definition
On
Zone Is Unsealed
Off
Zone Is Sealed
Flashing Fast
(0.25 Sec On – 0.25 Sec Off)
Zone Is In Alarm Condition
Flashing Slow
(1 Sec On – 1 Sec Off)
Zone Is Manually Isolated
Table 14: Zone Indicators
AWAY Indicator
The
AWAY
indicator is used to display that the system is armed in
AWAY
Mode. The
indicator will also illuminate when the system is armed in AWAY Mode. The
AWAY
indicator
will also flash in unison with the
STAY
indicator when Installer’s Programming Mode or
Master Code Functions are used.
Refer to page 52 for more information on the different methods on arming the system in
AWAY Mode.
Indicator Definition
On
System Is Armed In AWAY Mode
Off
System Is Not Armed In AWAY Mode
Table 15: AWAY Indicator
Electronics Design and Manufacturing Pty Limited ISSUE130
