Positions of PCBs and electrical parts (dryer section, conveyor and order classification section)
1/2
6. Electrical parts
63271
63271
Conveyor and order classification section (positions of PCBs and electrical
parts)
!
!!

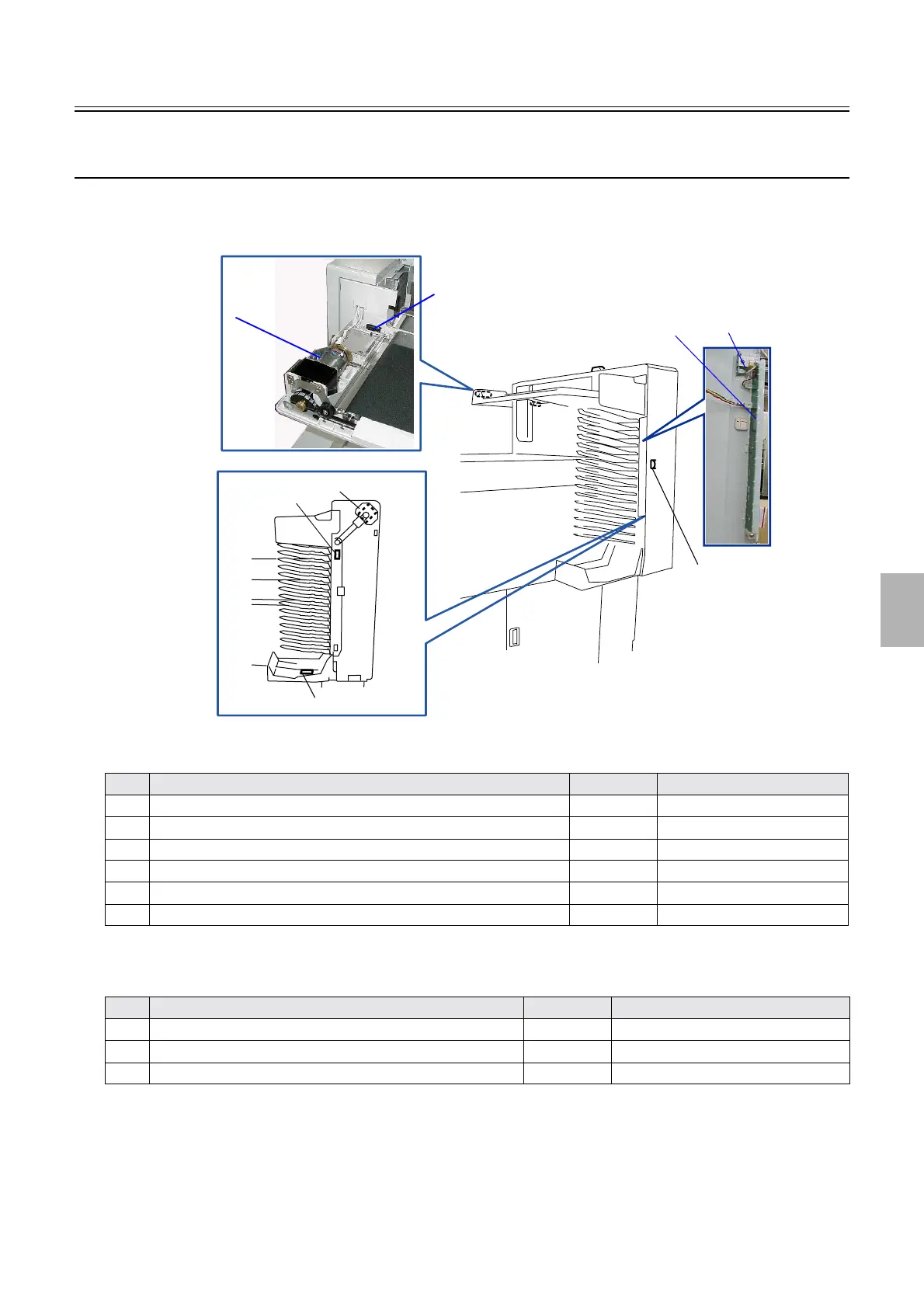

! Layout diagram [Print sorter unit (6-inch type, 17/14 orders)]
Conveyor, order classification section (electrical parts)
*1. For the operations of the processor condition light and manual sorter switch, see ☞63275.
Order classification section (PCBs)
No. Name Symbol Remarks
1Sorter motor DM4
2 Sorter home sensor SE26
3 Print full sensor SE27
4 Manual sorter switch (manual replenishment switch)
*1
SW1
5 Conveyor unit sensor SE25
6 Conveyor motor DM3
No. Name Manual No. Remarks
7 Order specifying LED PCB 1
☞66840
8 Order specifying LED PCB 2 ☞66850 Print sorter unit (6-inch type/14 orders)
9 Order specifying LED PCB 3 ☞66860 Print sorter unit (6-inch type/17 orders)
1
5
4
2
3
6
7
8, 9
G085265
