6. Electrical parts
63271
63271

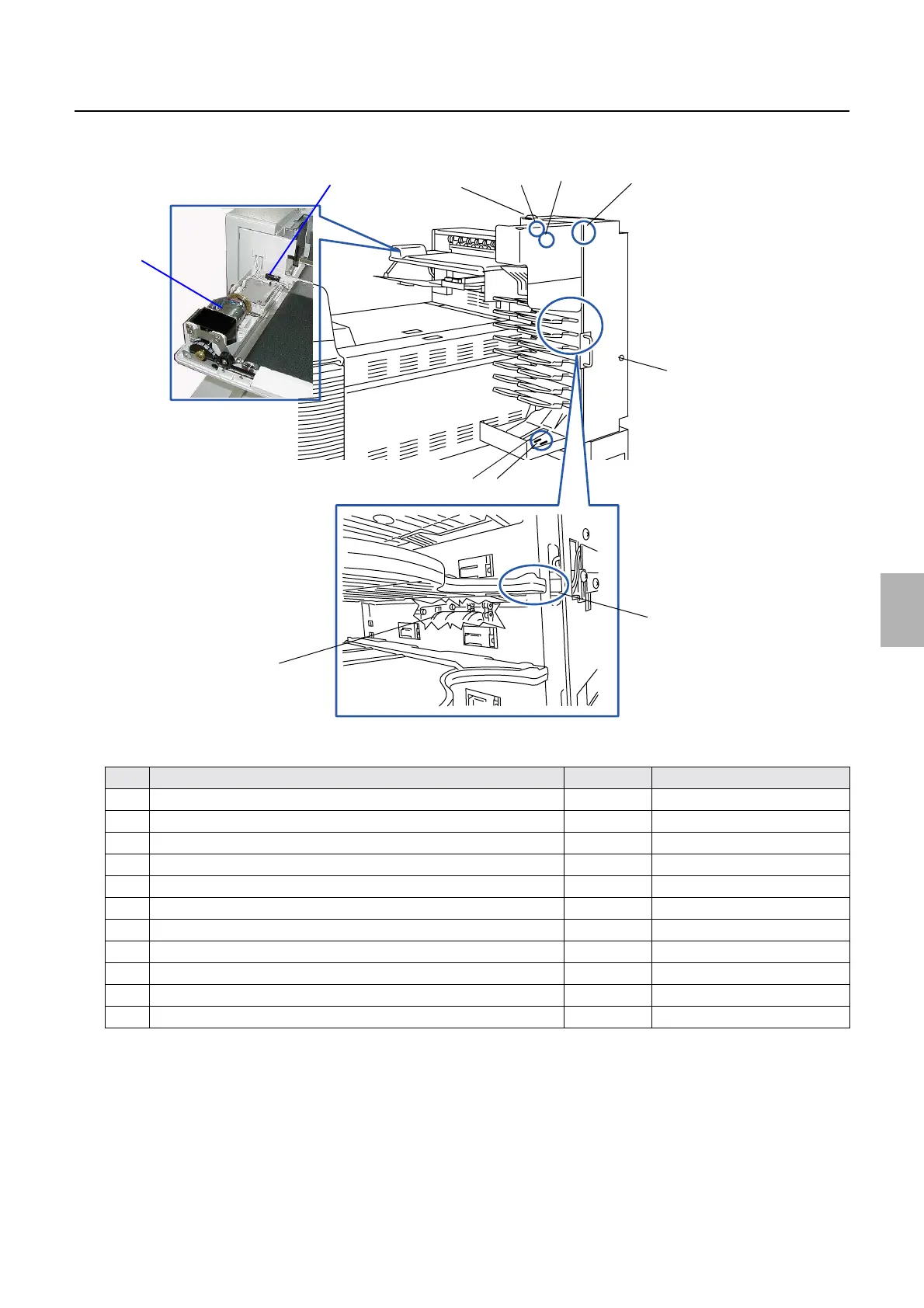

Positions of PCBs and electrical parts (dryer section, conveyor and order classification section)
!
!!
! Layout diagram [Print sorter unit (10-inch type)]
Conveyor, order classification section (electrical parts)
*1. For the operations of the processor condition light and manual sorter switch, see ☞63275.
No. Name Symbol Remarks
1 Manual sorter switch (manual replenishment switch)
*1
SW1
2 Processor condition light
*1
3Sorter motor DM4
4 Sorter home sensor SE26
5 Print full sensor 1 SE27
6 Print full sensor 2 SE49
8 Paper guide close sensor SE99
7 Paper guide open sensor SE100
9 Paper guide motor DM20
10 Conveyor unit sensor SE25
11 Conveyor motor DM3
1
4
3
2
56
8
9
7
10
11
G085377
