6. Press the levers either side of the connector to disconnect the ribbon cable from the front panel.

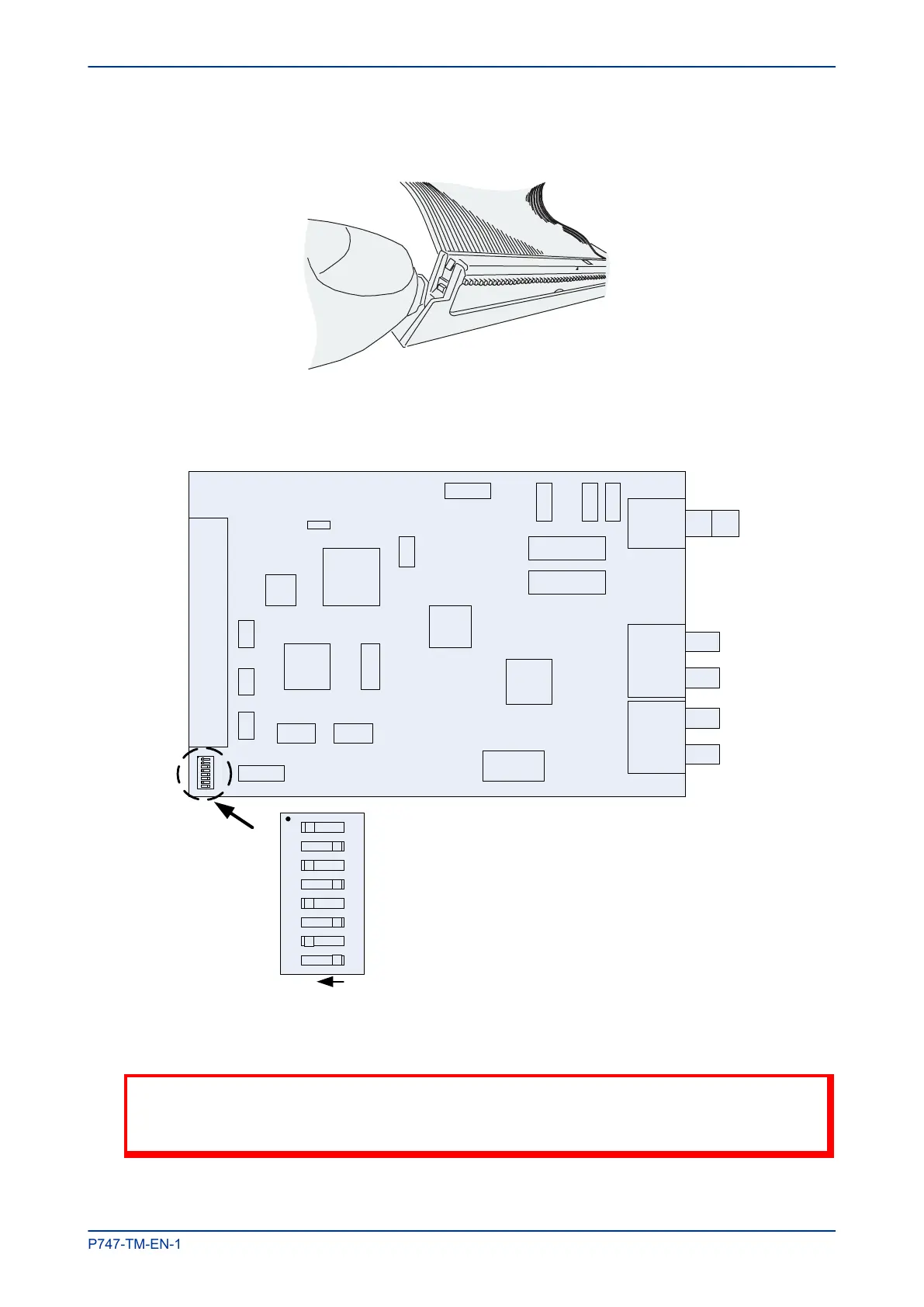

7. Remove the redundant Ethernet board. Set the last octet of IP address using the DIP switches. The
available range is 1 to 127.
V01022
1
2
4
8
16
32
64
Unused
SW2 Top view
ON
Example address
decimal 85
1 + 4 + 16 + 64 = 85
8. Once you have set the IP address, reassemble the IED, following theses instructions in the reverse
order.
Warning:
Take care not to damage the pins of the ribbon cable connector on the front panel when
reinserting the ribbon cable.
MiCOM P747 Chapter 8 - Redundant Ethernet
P747-TM-EN-1 261
