3 MOUNTING THE DEVICE
The products are dispatched either individually or as part of a panel or rack assembly.
Individual products are normally supplied with an outline diagram showing the dimensions for panel cut-outs
and hole centres.
The products are designed so the fixing holes in the mounting flanges are only accessible when the access
covers are open.
If you use a P991 or MMLG test block with the product, when viewed from the front, position the test block
on the right-hand side of the associated product. This minimises the wiring between the product and test
block, and allows the correct test block to be easily identified during commissioning and maintenance tests.
If you need to test the product for correct operation during installation, open the lower access cover, hold the
battery in place and pull the red tab to remove the battery isolation strip.

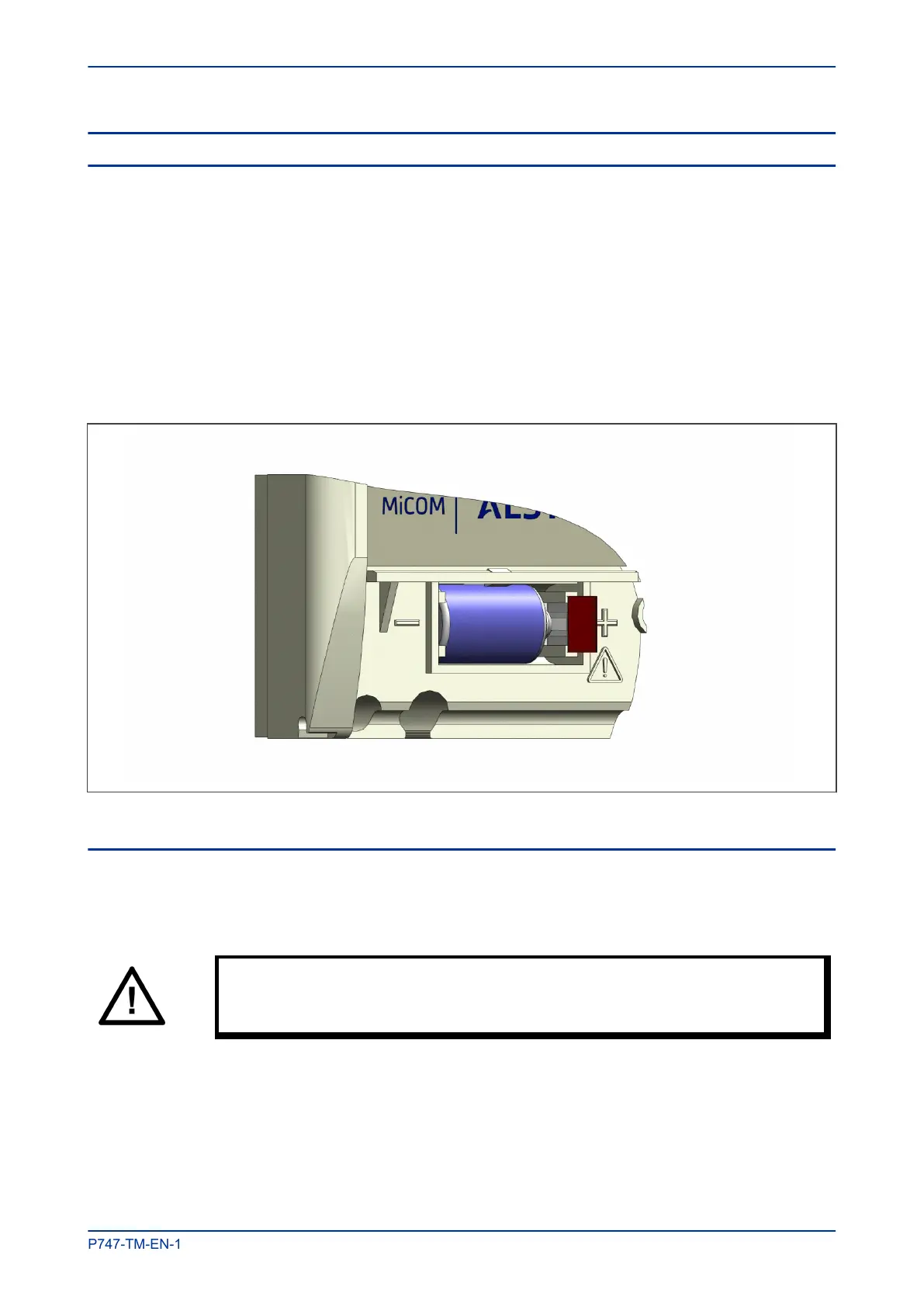

Figure 90: Location of battery isolation strip
3.1 FLUSH PANEL MOUNTING
Panel-mounted devices are flush mounted into panels using M4 SEMS Taptite self-tapping screws with
captive 3 mm thick washers (also known as a SEMS unit). These fastenings are available in packs of five
(our part number ZA0005 104).
Caution:
Do not use conventional self-tapping screws, because they have larger heads
and could damage the faceplate.
Alternatively, you can use tapped holes if the panel has a minimum thickness of 2.5 mm.
For applications where the product needs to be semi-projection or projection mounted, a range of collars are
available.
If several products are mounted in a single cut-out in the panel, mechanically group them horizontally or
vertically into rigid assemblies before mounting in the panel.
MiCOM P747 Chapter 13 - Installation
P747-TM-EN-1 333
