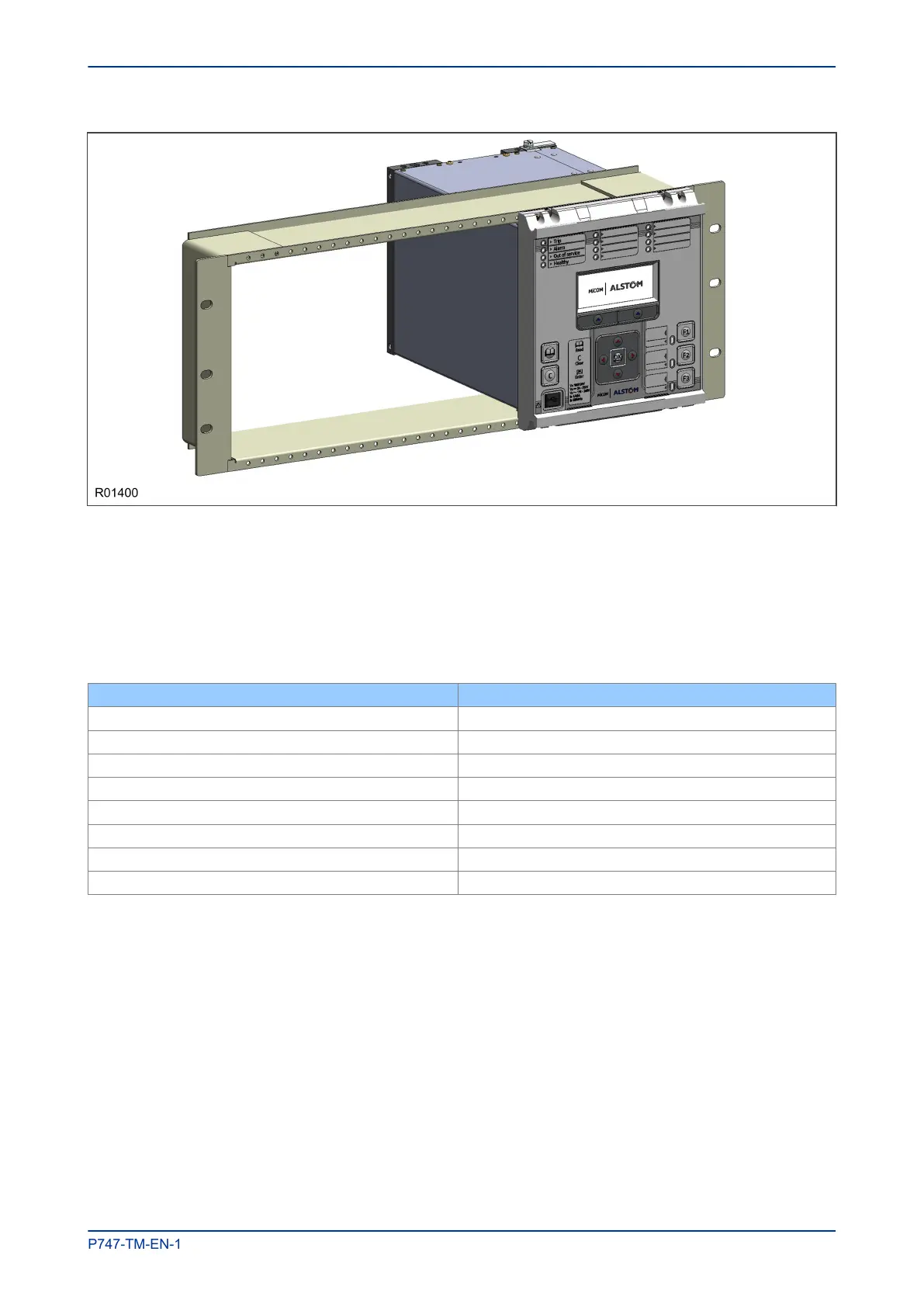

Figure 91: Rack mounting of products

Products can be mechanically grouped into single tier (4U) or multi-tier arrangements using the rack frame.

This enables schemes using products from different product ranges to be pre-wired together before

mounting.

Use blanking plates to fill any empty spaces. The spaces may be used for installing future products or

because the total size is less than 80TE on any tier. Blanking plates can also be used to mount ancillary

components. The part numbers are as follows:

Case size summation Blanking plate part number

5TE GJ2028 101

10TE GJ2028 102

15TE GJ2028 103

20TE GJ2028 104

25TE GJ2028 105

30TE GJ2028 106

35TE GJ2028 107

40TE GJ2028 108

MiCOM P747 Chapter 13 - Installation

P747-TM-EN-1 335

P747-TM-EN-1.1
