2 USING THE HMI PANEL
Using the HMI, you can:
● Display and modify settings
● View the digital I/O signal status
● Display measurements
● Display fault records
● Reset fault and alarm indications
The keypad provides full access to the device functionality using a range of menu options. The information is
displayed on the LCD.

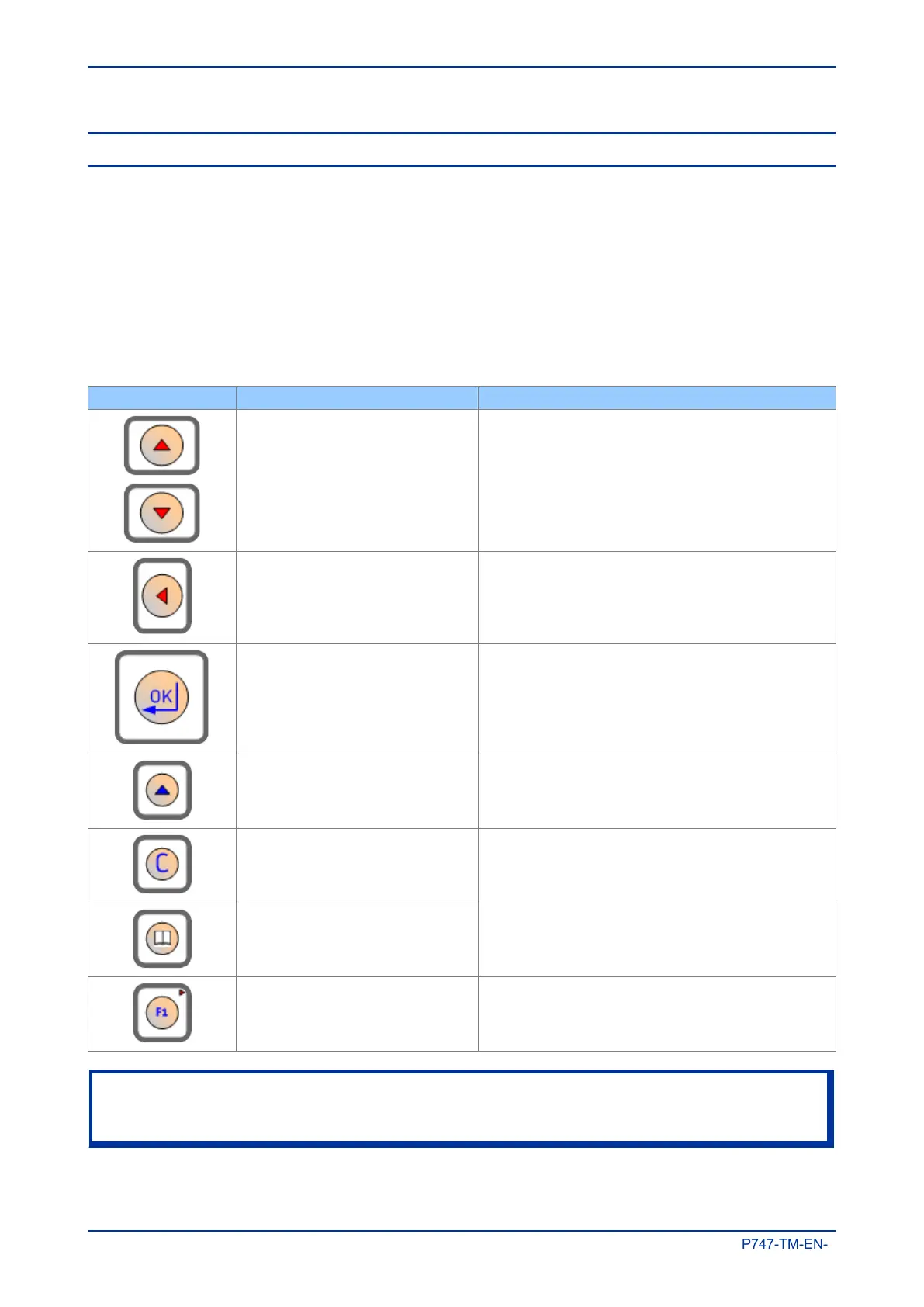

Keys Description Function
Up and down cursor keys
To change the menu level or change between settings in
a particular column, or changing values within a cell
Left and right cursor keys
To change default display, change between column
headings, or changing values within a cell
ENTER key For changing and executing settings
Hotkeys
For executing commands and settings for which
shortcuts have been defined
Cancel key To return to column header from any menu cell
Read key To read alarm messages
Function keys (not for 20TE devices) For executing user programmable functions
Note:
As the LCD display has a resolution of 16 characters by 3 lines, some of the information is in a condensed mnemonic
form.
Chapter 4 - Configuration MiCOM P747
58 P747-TM-EN-1
