GE Vivid S60N - Front View of the VIVID S60 N;VIVID S70 N Ultrasound Unit

D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
3-16 Section 3-3 - Receiving and Unpacking the Equipment
PRELIMINARY
3-4-3-2 Front View of the Vivid S60N/Vivid S70N Ultrasound Unit

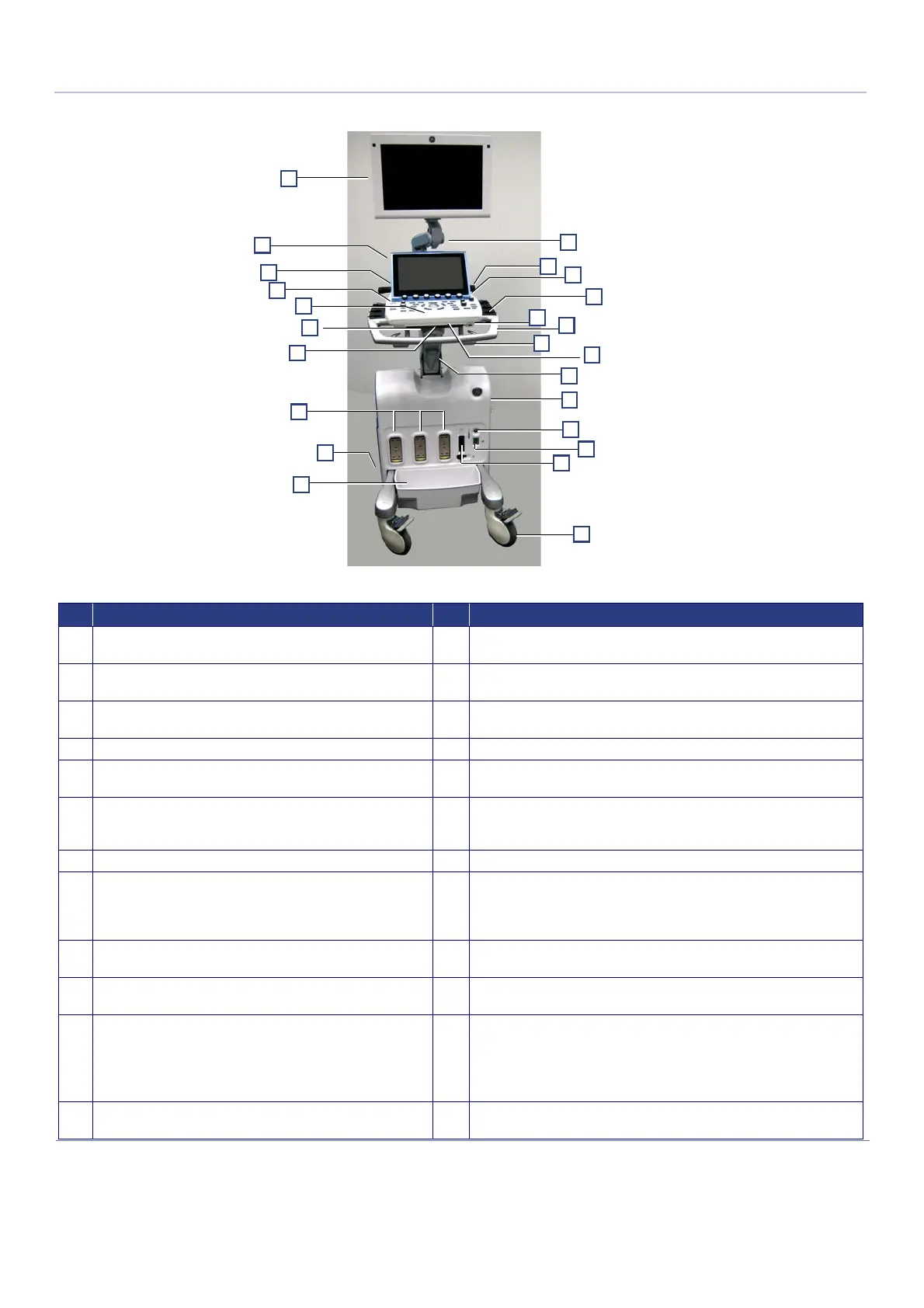

Figure 3-16 Front View of the Vivid S60N/Vivid S70N Ultrasound Scanner
# Item # Item
1
Display Monitor:
Tilts up and down and swivels left and right.
13 Front handle
2
Touch Screen: Mounted in a fixed position behind the Control
Panel at a convenient angle for viewing.
14 Probe-cable hooks
3
Monitor Articulated Arm. Includes Release pin that enables
locking of the monitor in the 90 degree position.
15 Pull-out Alphanumeric Keyboard (optional)
4 Rear Handle 16 Up/down "Flex-Fit" Arm
5 OPIO Basket: Holds paper and other utensils, as required. 17
Air inlet and Subwoofer: Air flow is via a built-in filter on the side cover,
for system air cooling. A subwoofer speaker provides superb sound.
6
ON/OFF: Power ON/OFF knob enables the user turn ON the
system (when power is connected and the system is either in
Shutdown or Standby mode).
18 Probe Connectors (PDT type)
7 Speakers: Two loudspeakers provided for Doppler sound. 19 Doppler Pencil Probe Connector
8
Control Panel: Contains the buttons used to operate the
ultrasound unit and the alphanumeric keyboard (optional).
20
ECG Cable Connector: Provides External ECG input connection to an ECG
monitor device outlet, or direct patient three-contact ECG lead connection.
Important: Do not use the Vivid 7 ECG cable with the Vivid S60N/Vivid
S70N system.
9
Probe and gel holders: Provides a safe, rubber-cushioned
resting place for probes. (Both sides of the Control Panel).
21 Probe Connector (RS type for TEE probe).
10
Control Panel swivel release handle: Enables locking of the
control panel in position; swiveling it left or right.
22
Rear Caster Wheel: Enables locking of swivel motion, or free rolling and
swiveling.
11
Control Panel up/down release handle:
Enables locking of the control panel in position, or changing
the location of the arm by moving it upwards and away from
the user, or downwards and away from the system. Provides
leg room for the user who may then be seated beside system.
23
Probe-cable management tray (removable). Note: should be used only
for small-footprint items of a total weight not exceeding 1 Kg (2.2 lbs).
12 Front USB port. 24
Front Caster Wheel: Enables full-locking of swivel motion, or free rolling
and swiveling.
1
2
3
10
11
23
17
24
9
4
8
5
6
15
13
7
22
16
18
21
19
20
12
14
