3-3-3 Unpacking the Cardboard Shipping Carton
As previously described, the Vivid S60N/Vivid S70N ultrasound unit is packed in a single cardboard
shipping carton comprising a durable outer cardboard carton cover and a wooden platform base; these
are firmly joined together with plastic straps. After completing a visual inspection of the shipping carton
and Drop/Tilt indicators, proceed to the unpacking instructions below, as appropriate
3-3-3-1 Unpacking the Vivid S60N/Vivid S70N Scanner with Peripherals
1.) Cut the plastic straps securing the shipping carton to the wooden base - see Figure 3-8 on page 3-7.
2.) Remove the options peripherals box (smaller-sized cardboard shipping carton) from the top of the
main cardboard shipping carton that contains the scanner.
3.) Carefully cut the adhesive tape used to close the shipping carton lids, and open the cartons from the top.
4.) Undo the re-sealable water-proof carton liners.
5.) Remove the packing slip (shipping consignment note) detailing the contents of the shipping carton
and keep close to hand ready to mark the check list - refer to Physical Inspection on page 3 - 14.
6.) Continue with unpacking the main cardboard shipping carton that contains the scanner, as
indicated in Unpacking the Vivid S60N/Vivid S70N Scanner on page 3 - 9.
3-3-3-2 Unpacking the Vivid S60N/Vivid S70N Scanner
1.) Cut the two plastic straps securing the shipping carton to the wooden base - see Figure 3-9 on
page 3-8.
2.) Carefully cut the adhesive tape used to close the shipping carton upper lid and open the four folded
flaps - see Figure 3-11.
3.) Remove the outer cardboard walls pulling them gently upwards and away from the system
(Figure 3-12).
CAUTION
WHEN USING SHARP TOOLS TO OPEN PACKING MATERIALS, TAKE CARE TO AVOID
CUTTING OR DAMAGING ANY OF THE CONTENTS.
CAUTION
WHEN USING SHARP TOOLS TO OPEN PACKING MATERIALS, TAKE CARE TO AVOID
CUTTING OR DAMAGING ANY OF THE CONTENTS.

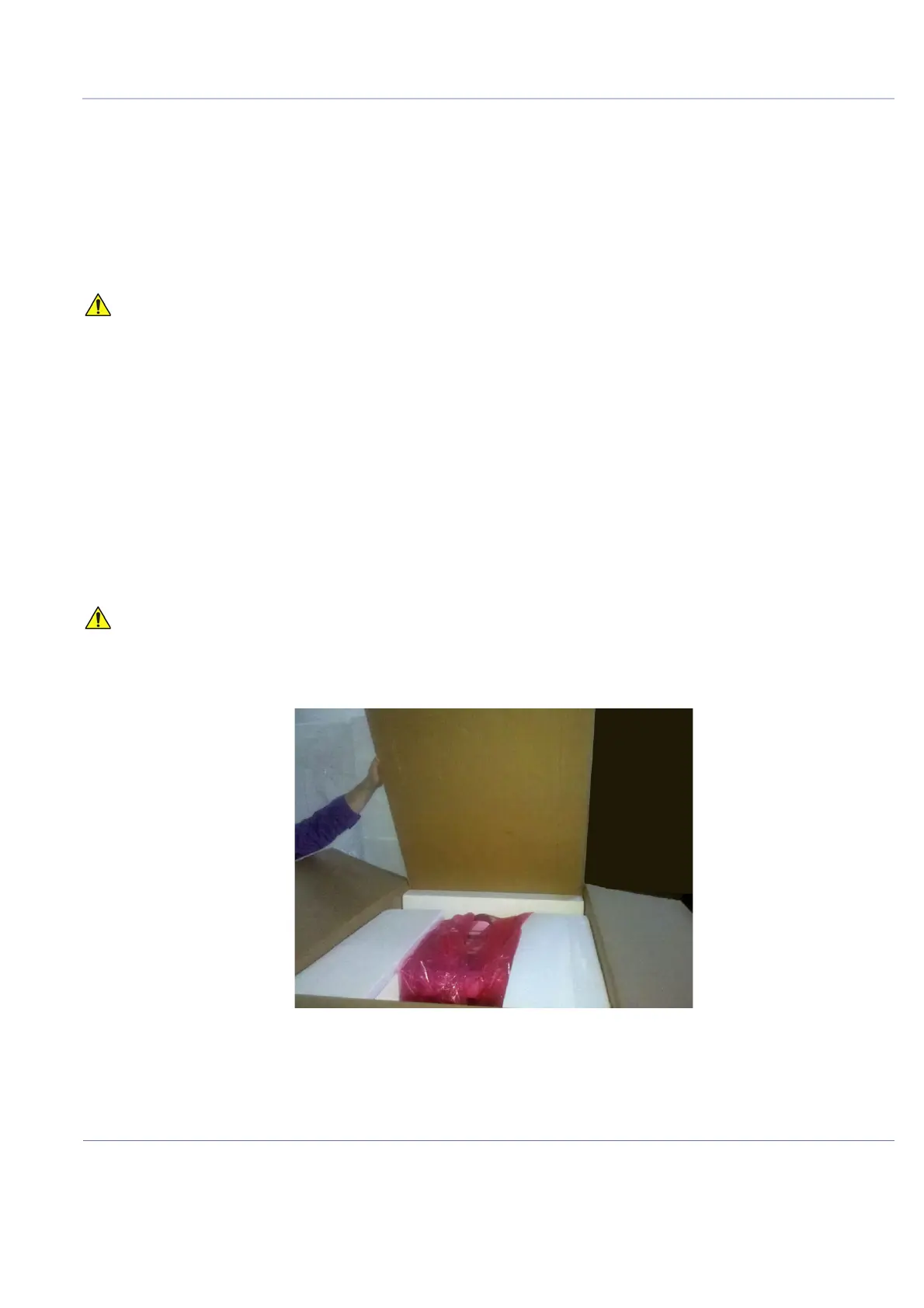

Figure 3-11 Opening the Shipping Carton
Note: Picture for illustration only
