D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-26 Section 8-2 - Covers - Replacement Procedures
PRELIMINARY
8-2-11 OPIO Basket Replacement Procedure
8-2-11-1 Tools
None
8-2-11-2 Time Required
5 min
8-2-11-3 Preparations
Remove all contents from the basket.
8-2-11-4 OPIO Basket Removal Procedure
1) Working from the rear of the system, grip the rear of the basket with both hands.
2.) Pull the basket towards you to release it from the two snap-lock securing clips - one on either side
of the keyboard interface column - see Figure 8-24. Remove the basket.
8-2-11-5 OPIO Basket Installation Procedure
1) Working from the rear of the system, return the basket to its original position on the keyboard
interface column.
2) Using both hands, carefully push it inwards to secure it on the two snap-lock securing clips - one on
either side of the column - refer to Figure 8-25.
Refer to Table 9-9 on page 9-8.

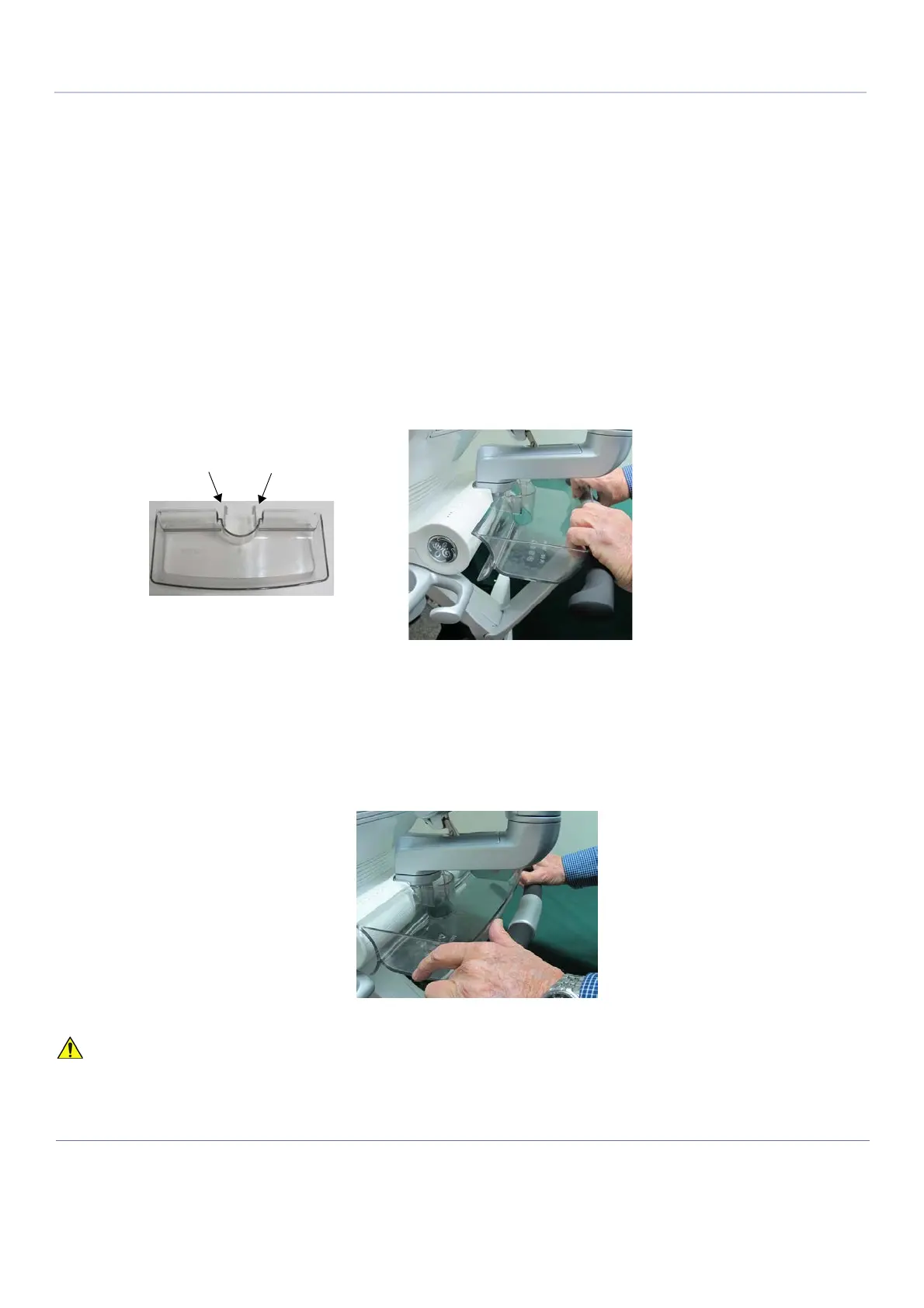

Figure 8-24 Removing the OPIO Basket
Figure 8-25 Installing the OPIO Basket
THE BASKET HAS A MAXIMUM CARRYING CAPACITY OF 4 KGS. DO NOT EXCEED THIS LIMIT!
