IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-102 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
8-5-7 Plastic Axis Holders for BEP Replacement Procedure
The BEP is located in the Cage and is positioned on two plastic axis holders on the base of the cage -
see Figure 8-127.
8-5-7-1 Tools
Appropriate Phillips and flat screwdrivers.
8-5-7-2 Time Required
15 minutes
8-5-7-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-7-4 Plastic Axis Holders for BEP Removal Procedure
1.) Remove the BEP:

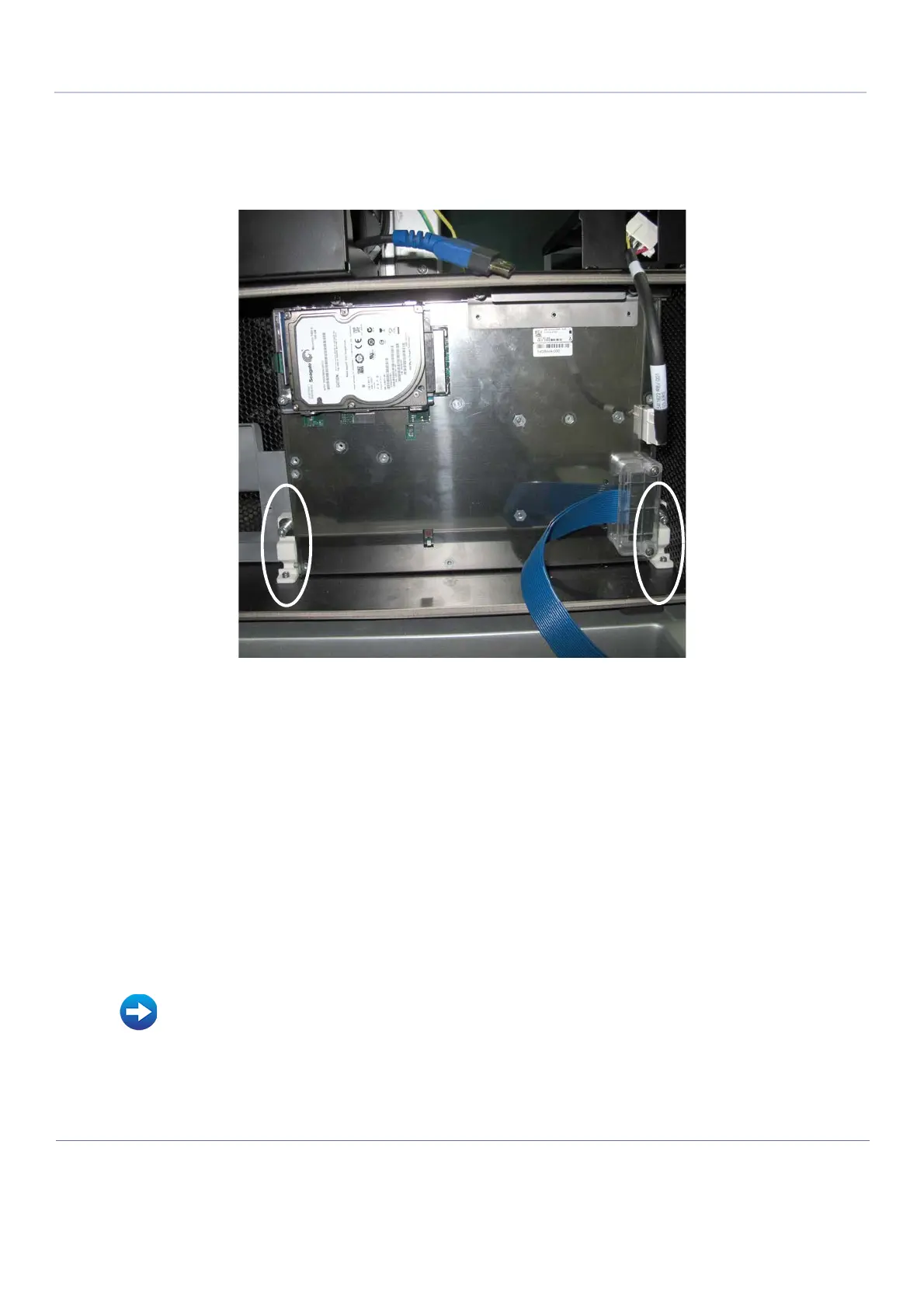

Figure 8-127 Plastic Axis Holders for BEP
Refer to Table 9-14 on page 9-13.
• BEP Removal Procedure on page 8 - 94
To Next Page
