IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-7
PRELIMINARY
8-2-2 Air Inlet (Left Side) Cover Replacement Procedure
NOTE: The Air Inlet cover (left side cover) is fastened in position on the side of the system by 4 snap-lock
securing clips - see Figure 8-2.
This cover contains an air filter, held in position by securing tabs.
For instructions on replacing the air filter only, see Air Filter Replacement Procedure on page 8 - 8.
8-2-2-1 Tools
None
8-2-2-2 Time Required
5 min
8-2-2-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-2-2-4 Air Inlet (Left Side) Cover Removal Procedure
1) Gripping the bottom of the cover, pull it out towards you to release it from the lower securing clips.
2) Pull the top of the cover out towards you, releasing it from the upper securing clips, then remove.

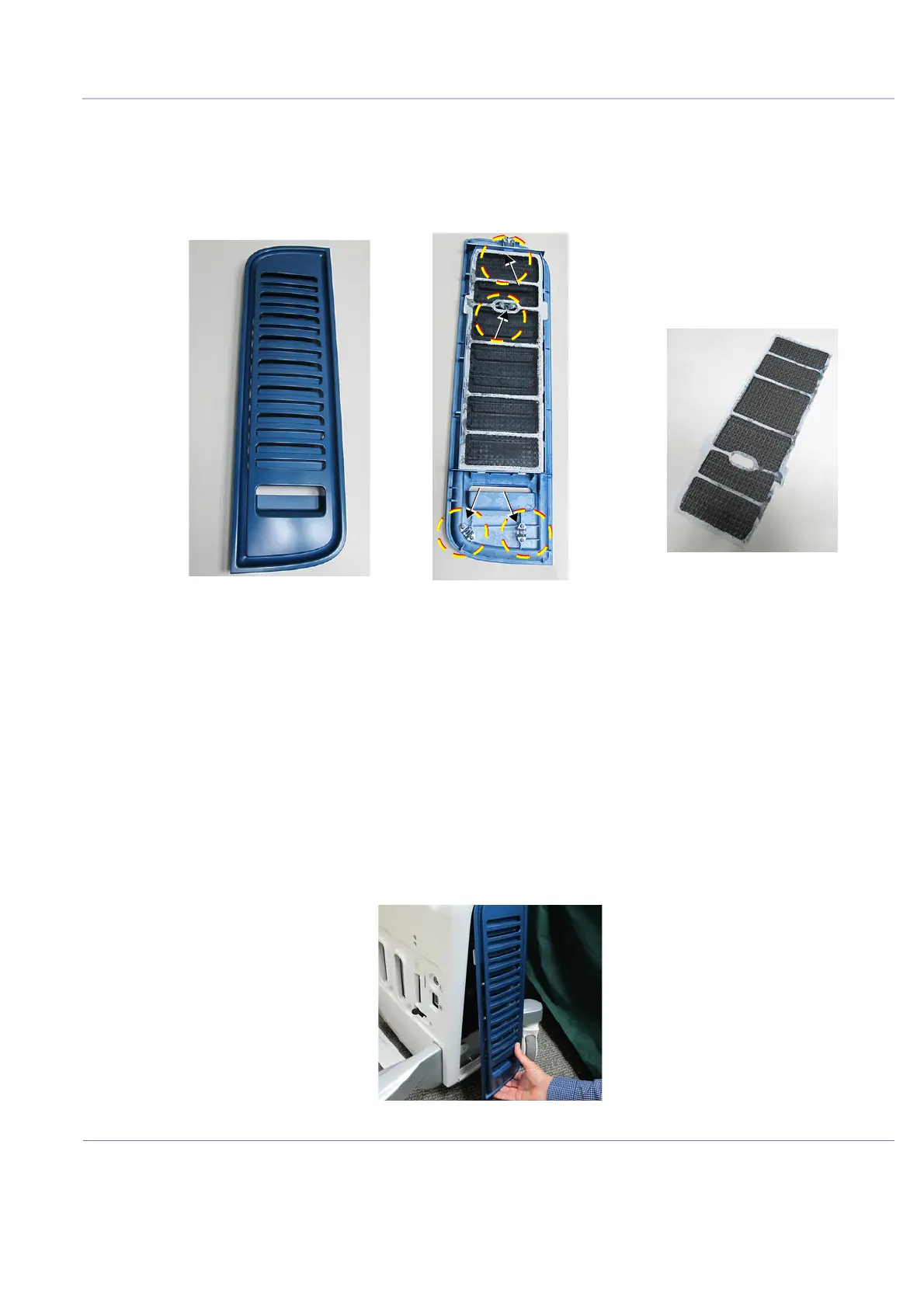

Figure 8-2 Air Inlet (Left Side) Cover - Front and Inside Views
Refer to Table 9-8 on page 9-7.
Figure 8-3 Removing the Air Inlet (Left Side) Cover
Front View
I
Snap-lock Securing Clips
Air Filter
