GE Vivid S60N - Air Inlet (Left Side) Cover Removal Procedure; Air Inlet (Left Side) Cover Installation Procedure; Air Filter Replacement Procedure

D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-8 Section 8-2 - Covers - Replacement Procedures
PRELIMINARY
8-2-2-5 Air Inlet (Left Side) Cover Installation Procedure
1) Return the air inlet side cover to the left side of the system, carefully aligning it with the securing clips.
2) Push the top of the cover upwards and inwards, until clicks into place.
3) Push the bottom of the cover upwards and inwards, until it clicks into place.
Make sure the cover is correctly seated.
8-2-2-5-1 Air Filter Replacement Procedure
1) Remove the Air Inlet cover from the left side of the system:
2) Lay the cover face-down on a flat, clean surface.
3.) Release the filter from the securing tabs, then lift it up and remove from the cover- Figure 8-4.
FRU Part #
Refer to Table 9-8 on page 9-7.
• Air Inlet (Left Side) Cover Removal Procedure

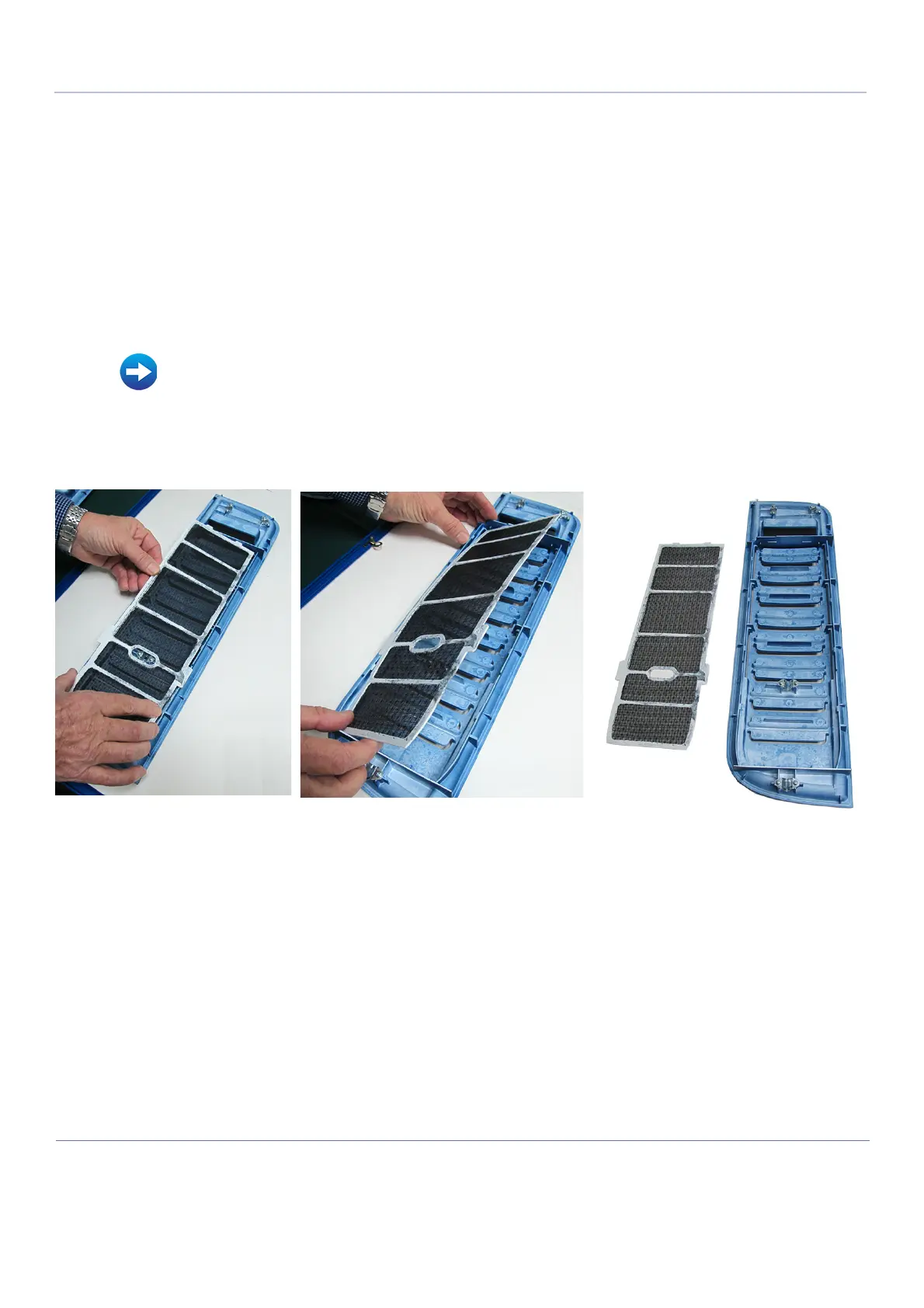

Figure 8-4 Removing the Air Filter from the Air Inlet Cover
