GE Vivid S60N - Gas Spring Replacement Procedure; Tools

D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-160 Section 8-6 - Mechanical Platform Components - Replacement Procedures
PRELIMINARY
8-6-9 Gas Spring Replacement Procedure
8-6-9-1 Tools
Use the appropriate Phillips screwdriver, light hammer, punch, and 5 mm Allen key.
8-6-9-2 Time Required
120 min
8-6-9-3 Preparation
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-6-9-4 Gas Spring Removal Procedure
1) Perform the following removal procedures:
2) Unscrew the shaft covering screws located on either side of the main column - see Figure 8-194. .
FRU Part #
Refer to Table 9-6 on page 9-5.
• 21.5" Monitor Replacement Procedure on page 8 - 31
• Operator Panel Keyboard Assembly Removal Procedure on page 8 - 44
• OPIO Basket Removal Procedure on page 8 - 26 (if attached to the system)

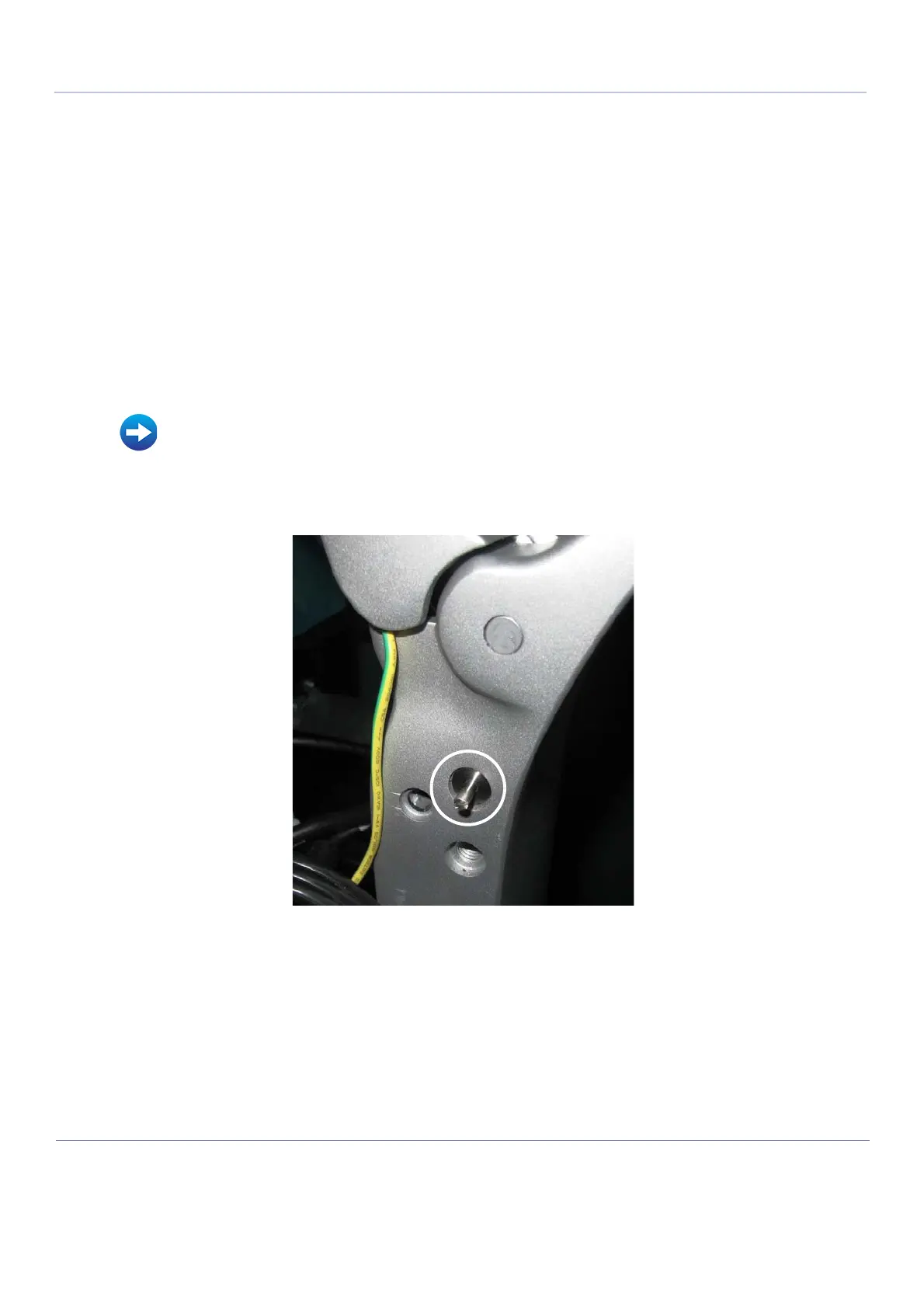

Figure 8-194 Shaft Covering Screws
