IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
9-10 Section 9-3 - Renewal Parts Lists and Diagrams
PRELIMINARY
9-3-4 Operator Panel

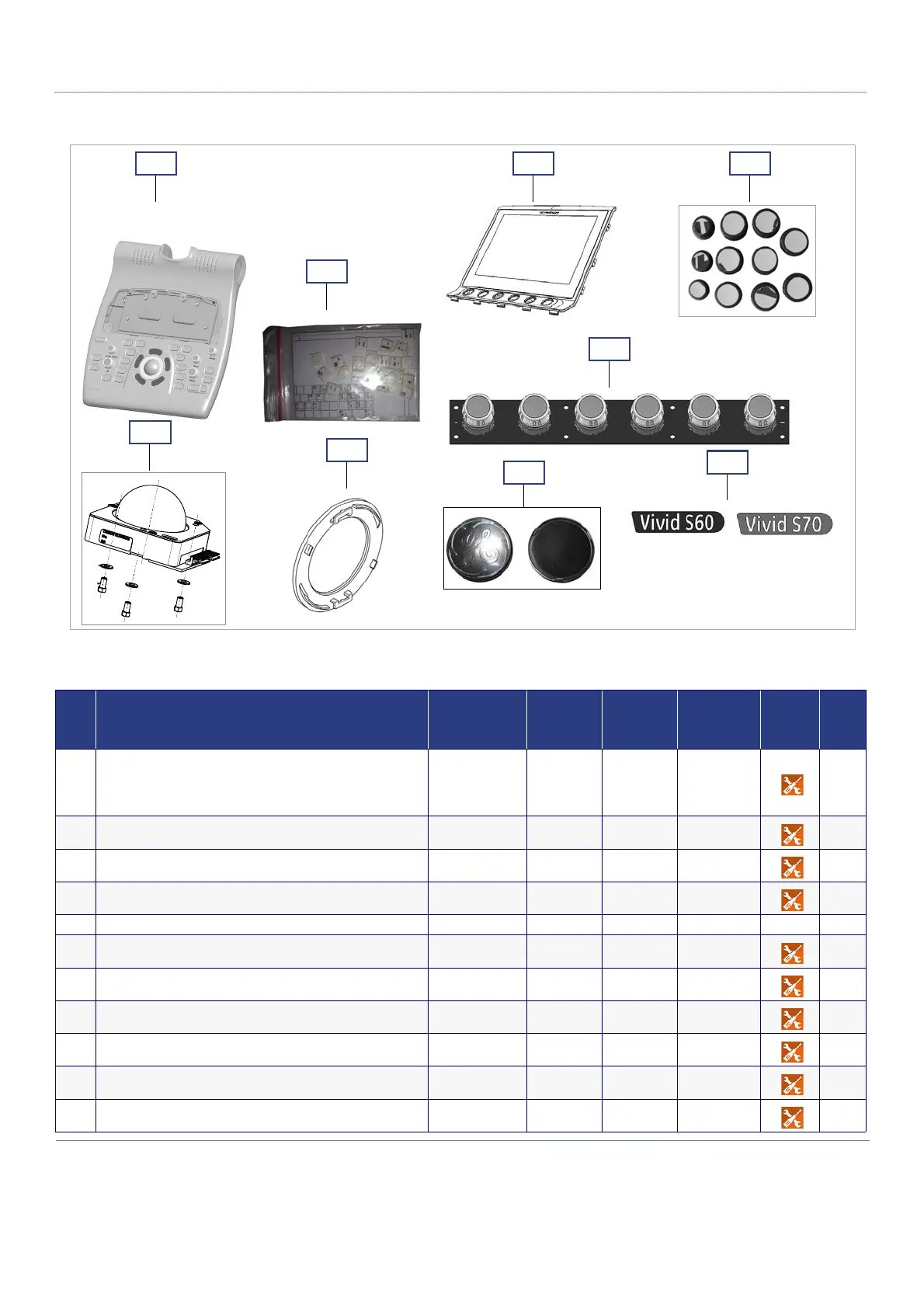

Figure 9-7 Operator Panel - Diagram 1
Table 9-11 Operator Panel
Item Part Name Part Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
CRU
401
Operator Panel Keyboard Assy.
Note: Also necessary to order
Operator Panel label PN S5508332 or S5508332-2
and also GE logo kit 5543611
S5460319
402 Touch Panel Assy. S5449446
403 Knobs Kit for Operator Panel 5490627 4
404 Keycaps Kit for Operator Panel 5490616
405 Screws Kit for Operator Panel 5490615 N/A
406 Touch Screen Rotaries Board S5482578
407 KB Trackball P50 RSPL Kit 5434142
408 Trackball Ring 5661884
409 Label-GE Logo 40mm (2 per kit) 5543611
410 Label_Vivid S60 for Operator panel S5508332
411 Label_Vivid S70 for Operator panel S5508332-2
401 402 403
404
407
408
410
409
Necessary to also order
Operator Panel Label
PN S5508332 (Vivid S60)
or PN S5508332-2 (Vivid S70)
Also, GE logo
406
RP
RP
RP
RP
RP
RP
RP
RP
RP
RP
