8-3-14 Alphanumeric Keycaps Replacement Procedure
The Alphanumeric Keyboard is shown in Figure 8-69.
8-3-14-1 Tools
Appropriate flat screwdriver.
8-3-14-2 Time Required
5 min
8-3-14-3 Preparations
None
8-3-14-4 Alphanumeric Keycap Removal Procedure
• Using a flat screwdriver gently release the defective keycap as shown in Figure 8-70.
8-3-14-5 Keycaps for Operator Panel Installation Procedure
• Return each replacement keycap to its appropriate position on the keyboard by gently pressing the
keycap into position ensuring that it is firmly engaged.

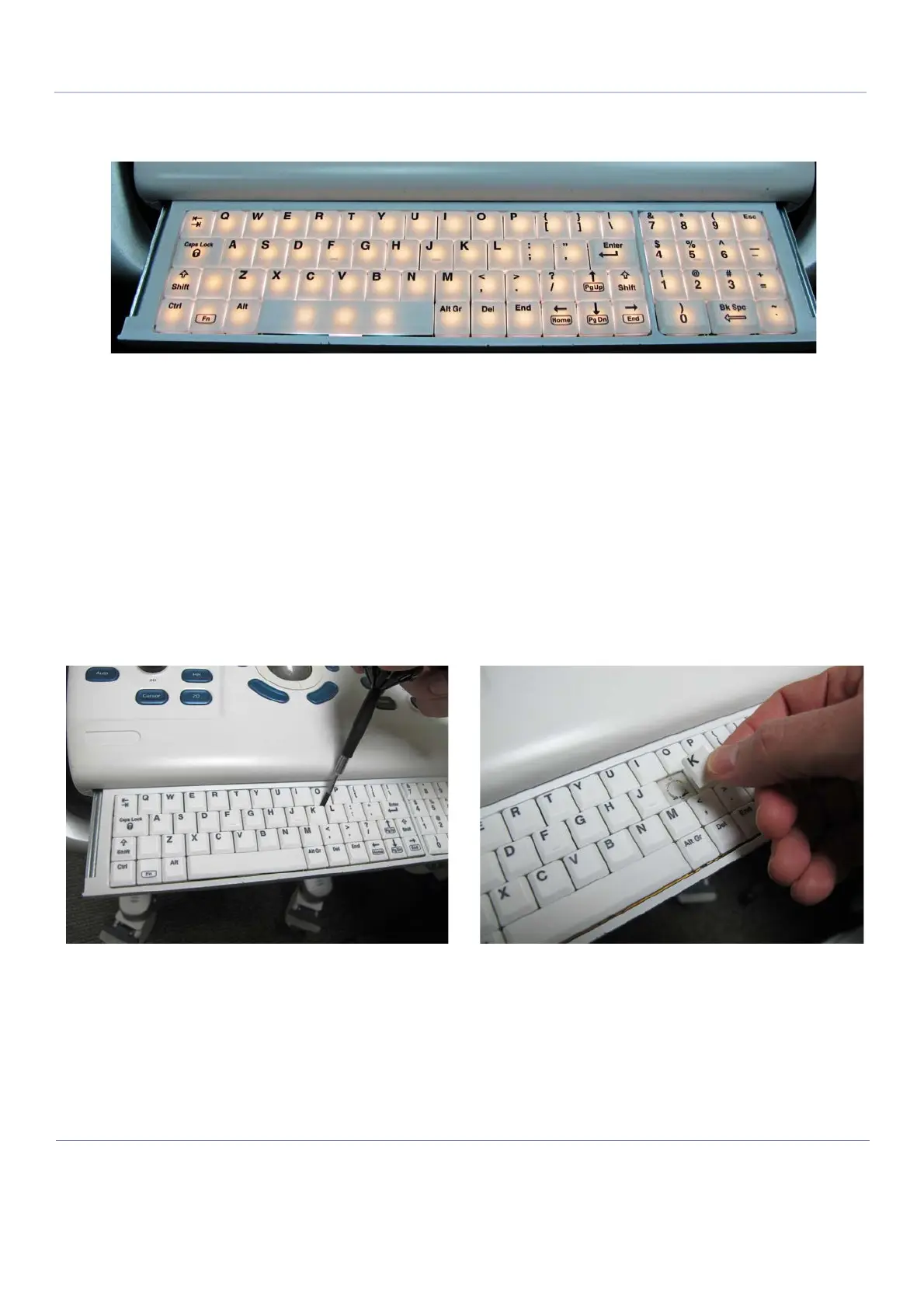

Figure 8-69 Alphanumeric Keyboard
FRU Part #
Refer to Table 9-12 on page 9-11.
Figure 8-70 Alphanumeric Keyboard
