IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL

Chapter 3 - System Setup 3-57

PRELIMINARY

3-10-3 Product Locator Installation Card

NOTE: The Product Locator Installation Card shown may not be the same as the provided Product Locator card.

From the factory, a sheet with five Product Locator cards for transportation and one for Installation are

included.

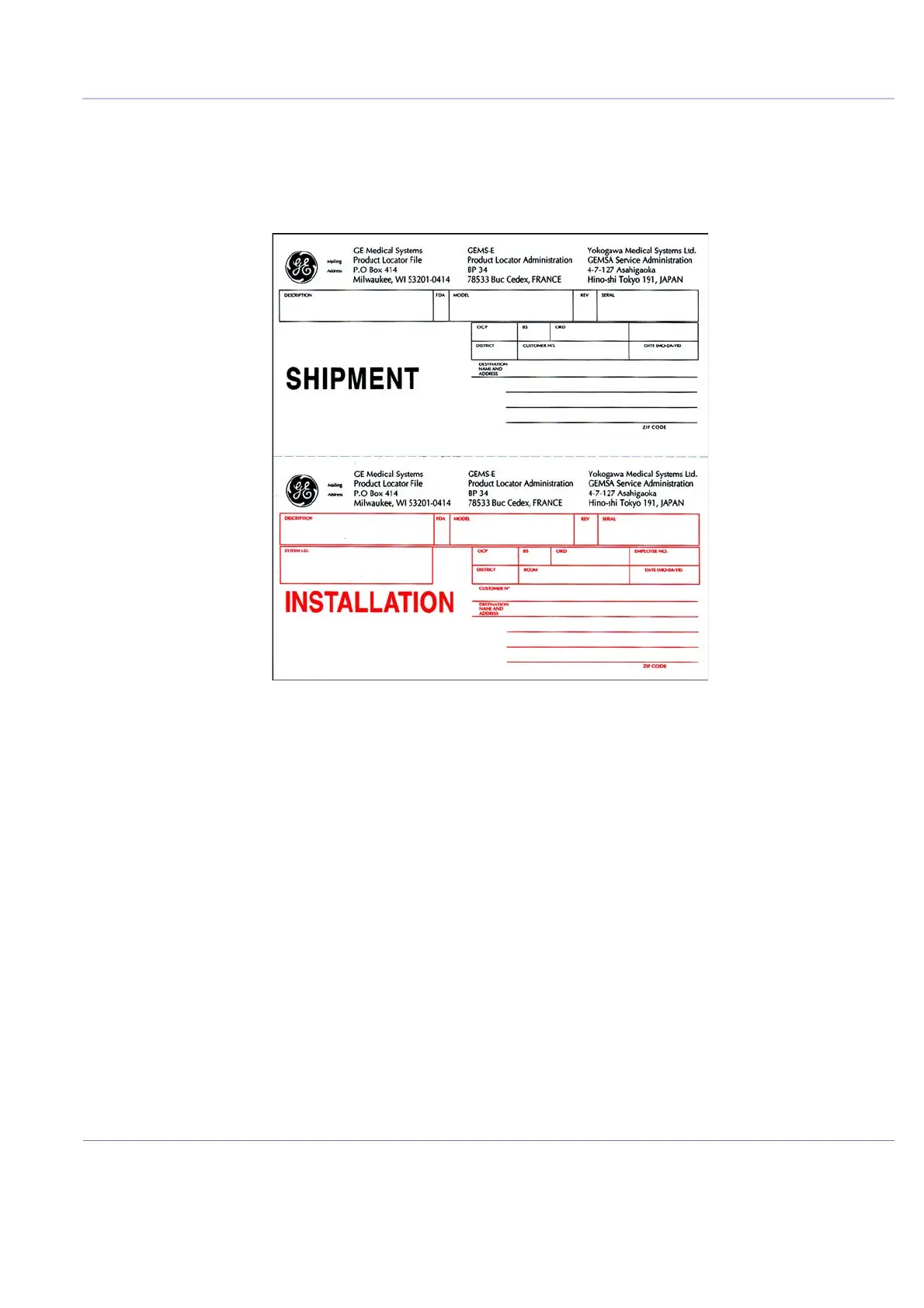

Figure 3-41 Product Locator Installation Card (Example)
