8-5-8 CPU Partition Replacement Procedure
NOTE: The CPU partition is located on the rear side of the BEP- see Figure 8-129.
8-5-8-1 Tools
Appropriate Phillips and flat screwdrivers.
8-5-8-2 Time Required
20 min
8-5-8-3 Preparations
Shut down the Vivid S60/Vivid S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-8-4 CPU Partition Removal Procedure
1.) Remove the BEP:
2.) Place the BEP on a clean work surface with the CPU Partition facing upwards.
3.) Remove the two securing screws (shown in Figure 8-129) that attach the CPU Partition to the BEP.
4.) Gently slide the CPU Partition upwards and remove it from the BEP.

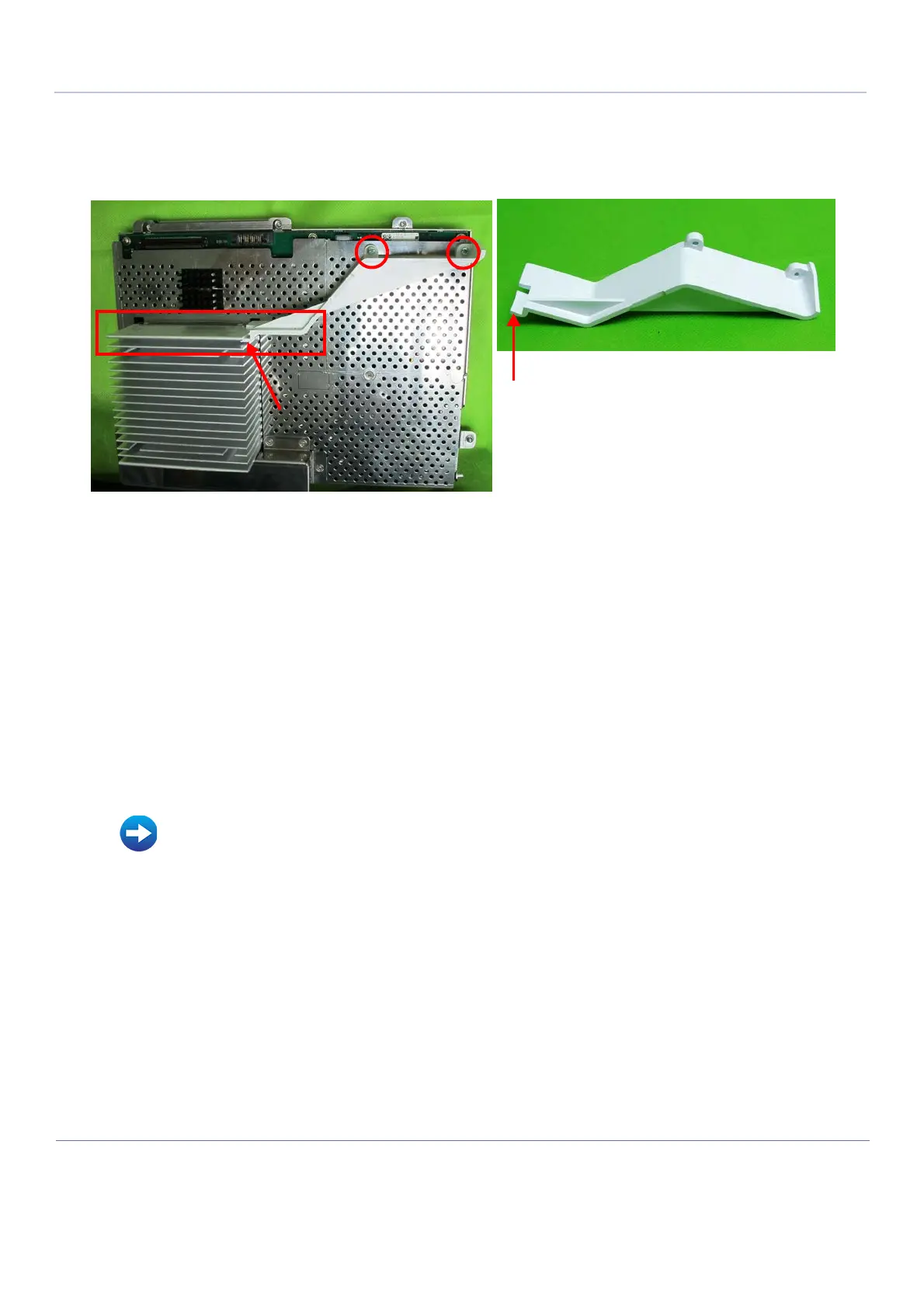

Figure 8-129 CPU Partition on BEP
FRU Part #
Refer to Table 9-14 on page 9-13.
• BEP Removal Procedure on page 8 - 94
