IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL

Chapter 5 - Components and Function (Theory) 5-7

PRELIMINARY

5-4-2 Upper Section - Positioning Control

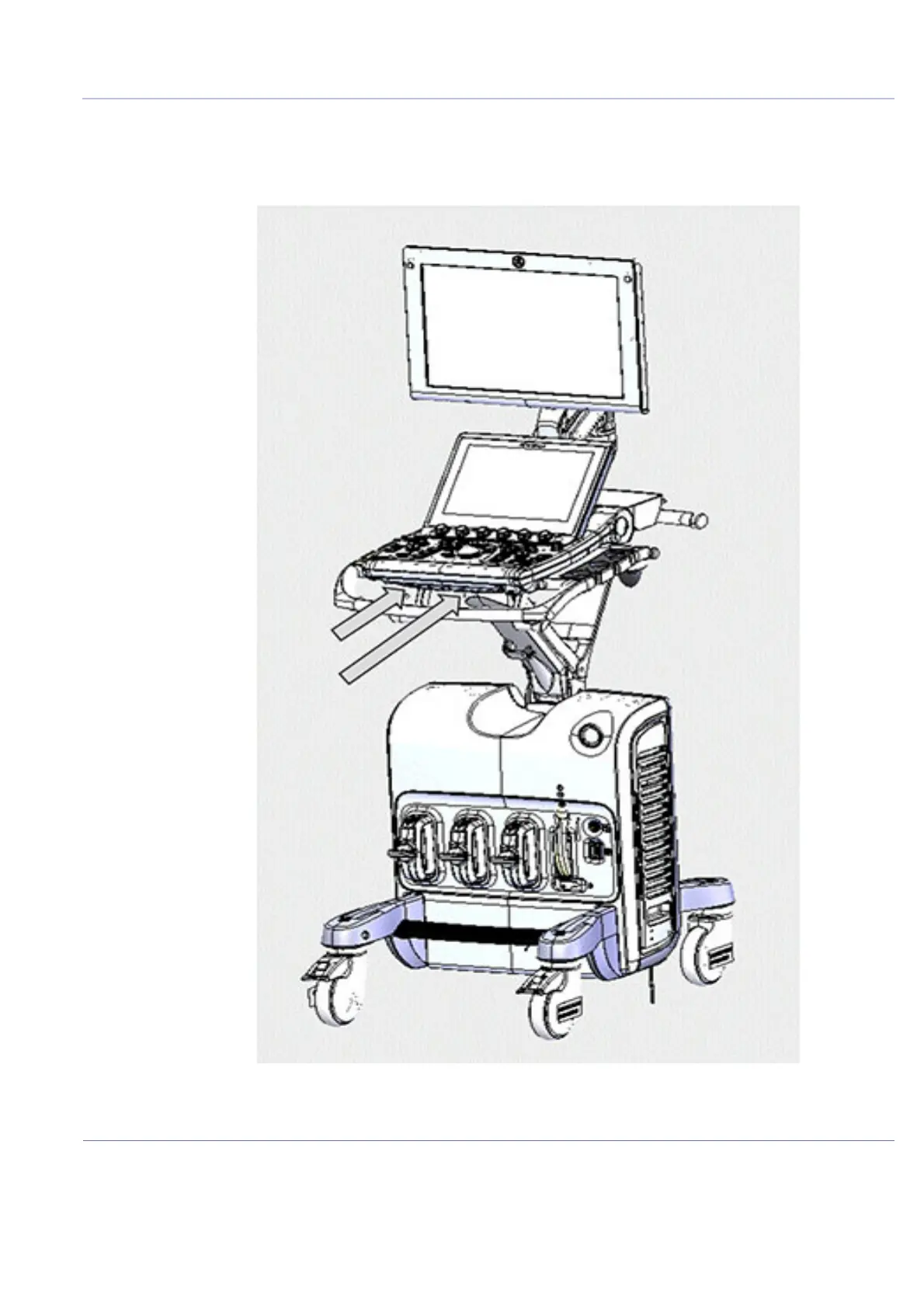

Figure 5-4 Vivid™ S60/Vivid™ S70 Ultrasound Scanner - Upper Section Positioning Control

UI + 30

Swivel Control

UI Up/Down Control
