8-5-23 Battery Replacement Procedure
8-5-23-1 Tools
Phillips screwdriver.
8-5-23-2 Time Required
1 min
8-5-23-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-23-4 Battery Removal Procedure
1.) Remove the AC Distribution Box cover:
2.) Remove the 2 securing screws from the battery compartment - Figure 8-176 (left).
3) Slide the battery out of the AC Distribution Box - Figure 8-176 (right).
FRU Part #
Refer to Table 9-13 on page 9-12.
• AC Distribution Box Cover Removal Procedure on page 8 - 29

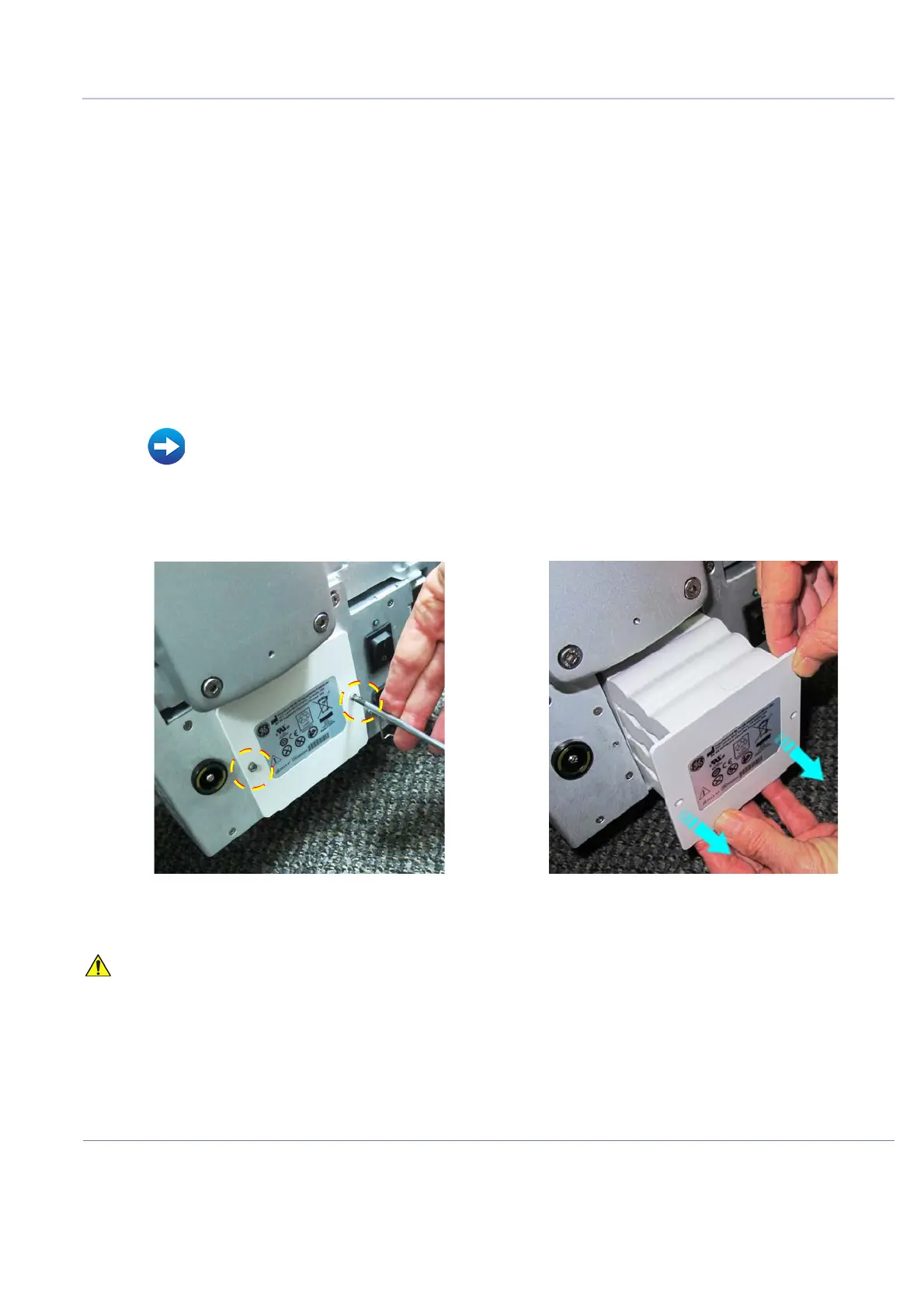

Figure 8-176 Removing the Screw on the Battery Compartment
CAUTION
WHEN REMOVING A DEFECTIVE BATTERY, ENSURE THAT IT IS DISPOSED OF IN
ACCORDANCE WITH LOCAL REGULATIONS.
ALTERNATIVELY, FORWARD IT TO GE HEALTHCARE FOR PROPER DISPOSAL.
