IRECTION FR091521, REVISION 1 VIVID™ S60N/VIVID™ S70N PROPRIETARY SERVICE MANUAL
5-16 Section 5-7 - Top Console with Monitor, Operator Control Panel and Touch Screen
PRELIMINARY
Section 5-7
Top Console with Monitor, Operator Control Panel and Touch Screen
5-7-1 Monitor (Main Display)
The display monitor is a super-wide 19" or 21.5'' LCD screen.
To facilitate comfortable positioning for the operator, the height of the Main Display can be adjusted as
required. Figure 5-3 on page 5-6 shows the Vivid™ S60/Vivid™ S70 ultrasound scanner in the up and
down positions.
For optimal viewing, the screen angle is adjustable; tilting may be between +90
o
and -15
o
NOTE: The positioning capabilities of the Main Display are illustrated in Figure 5-6 on page 5-9.
In order to optimize the display settings, a light-sensing device (ambient light sensors) located on each
side of the Monitor is used for measuring the ambient light. This data is processed by the main CPU
which adapts the display setting, accordingly.
5-7-2 Operator Control Panel and Speakers
The Vivid™ S60/Vivid™ S70 Operator Control Panel (the OPIO module) comprises the following main
components:
• Extended Keyboard
• Touch Screen - LCD multi-touch panel
• Alphanumeric Keyboard (optional)
Contained within the Operator Control Panel are the following:
• Set of 24 hard-buttons and 11 rotaries (the Extended Keyboard)
• One 2" trackball
• Electronics and cables for the operation of the Touch Screen Module (Power, DP & USB)
• Set of 2 stereo speakers

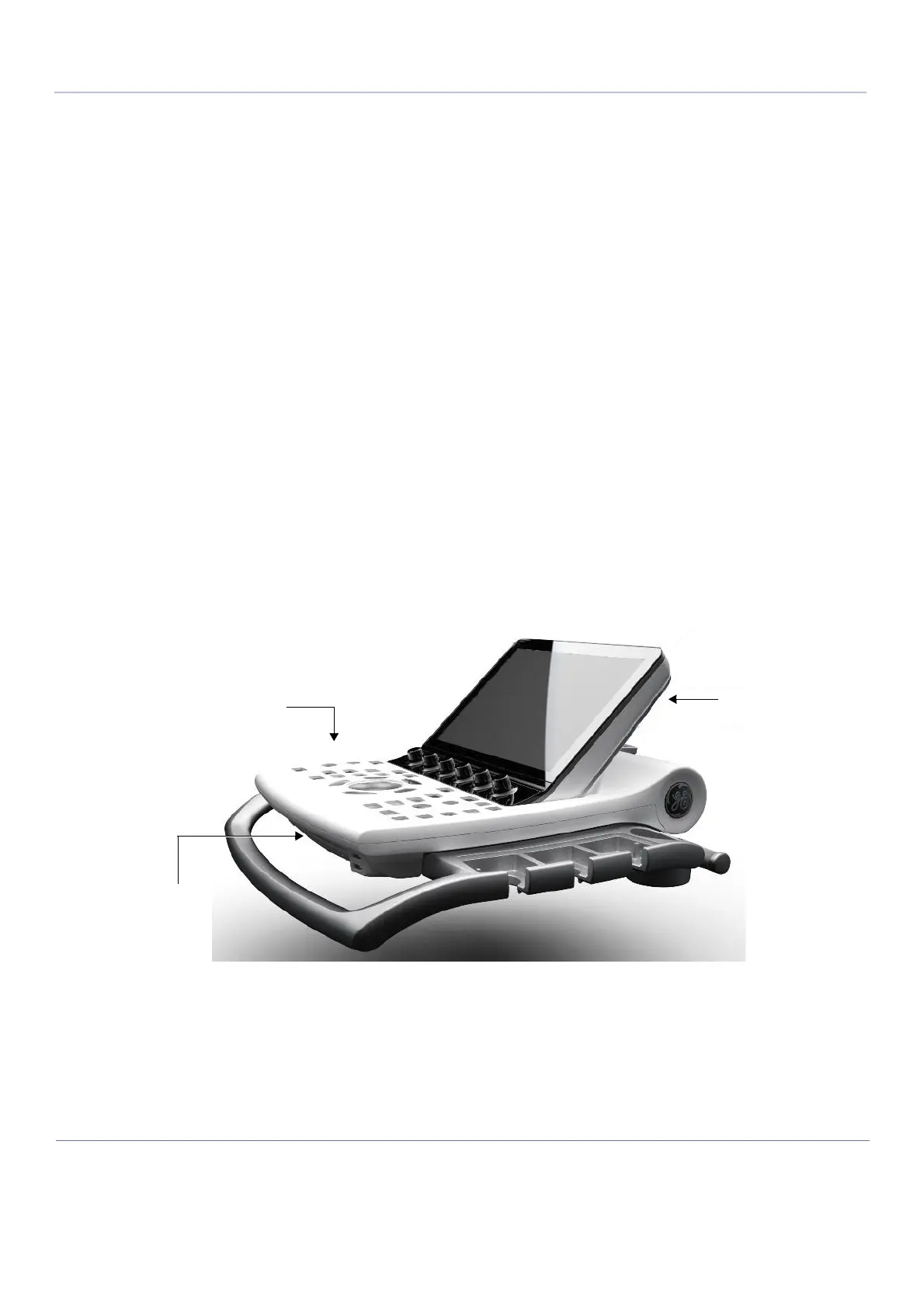

Figure 5-16 Operator Control Panel (without Alphanumeric Keyboard option)
Touch Screen
Extended Keyboard
Alphanumeric Keyboard
Location of Optional
