D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-32 Section 8-3 - Control Console Components - Replacement Procedures
PRELIMINARY
8-3-1-4 Remove the 21.5 inch Monitor (cont’d)
2.) The cables are secured with P clamps and screws.
Disconnect the monitor cables from the monitor as described below:
a.) Disconnect the DVI cable, including P clamp and screw[1].
b.) Remove the serrated lock washer and screw to release the Ground cables [2].
c.) Disconnect the USB cable, including P clamp and screw [3].
d.) Disconnect the Power cable, including P clamp and screw [5].
e.) Remove the serrated lock washer and screw to release the Ground cable from the Power
Cable [4].
f.) Remove screw and P clamp positioned in center of monitor [8] securing two cables plus ground
wire from the arm.
3.) Remove the two securing screws [7].
4.) Loosen the two captive screws [6].
5.) Hold the monitor with both hands and carefully move it to align the captive screws with the widest
part of the key-hole slots and remove the monitor.
Carefully place the monitor face-down on a clean, soft, stable surface.
NOTE: After removing the Front Cover, if not installing the replacement Monitor immediately, keep the cover
and screws in a safe place as they will be required later for refitting to the new Monitor.

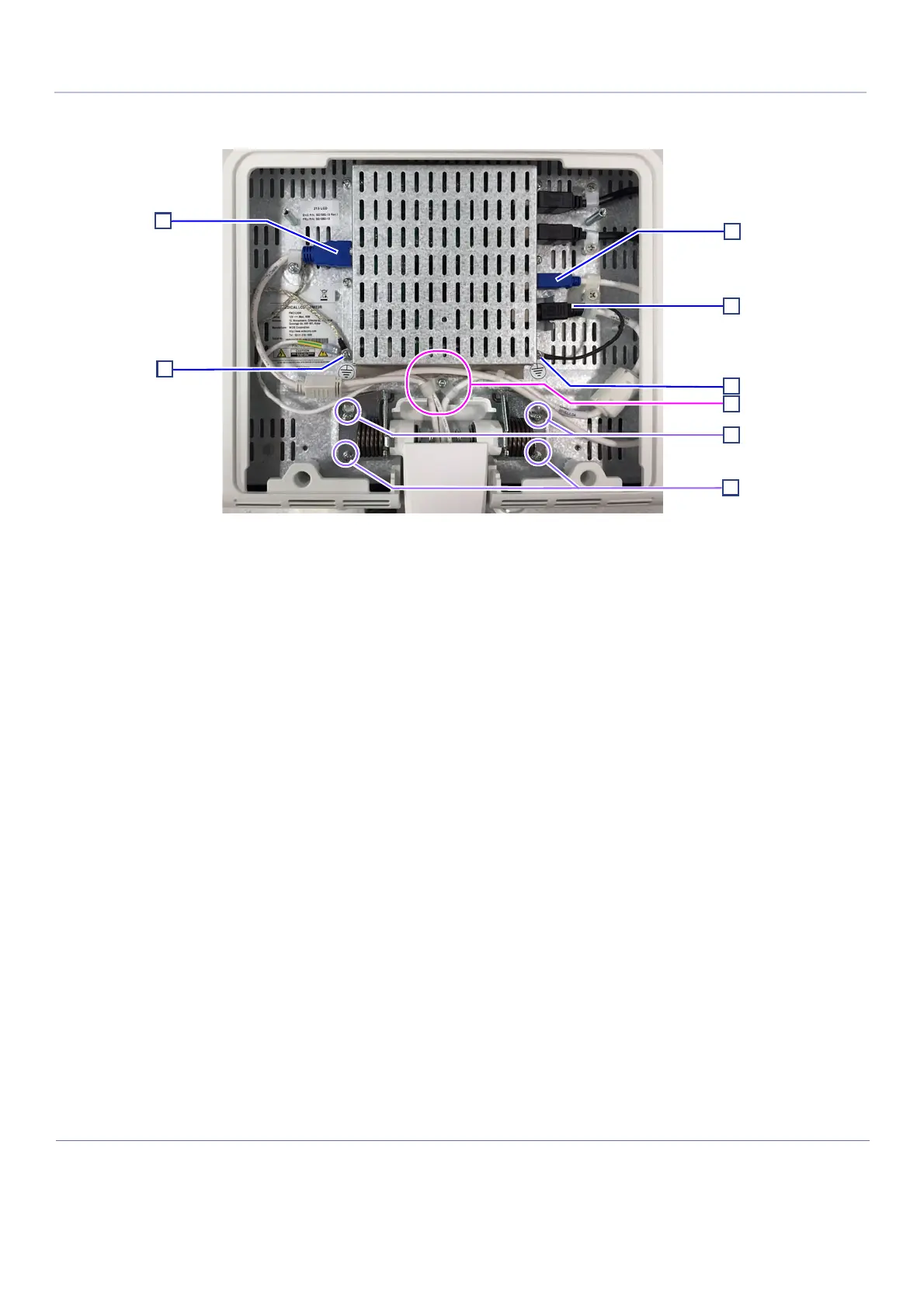

1 - BIF-to-Display: HDMI
2 - Ground (from HDMI cable and to Arm)
3 - USB
4 - Ground (from power cable)
5 - Power-to-Display
6 - Captive screws
7 - Securing screws
8 - Screw and P clamp
Figure 8-33 Monitor Cables
