IRECTION FR091521, REVISION 1VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 4 - General Procedures and Functional Checks 4-11
PRELIMINARY
4-2-7 LCD Monitor Position Adjustment
The LCD monitor position can be adjusted for easy viewing.
4-2-7-1 To Unlock/Lock the LCD Monitor
4-2-7-1-1 To Unlock and Move the LCD Monitor
1) Turn the release knob clockwise to unlock the LCD monitor- Figure 4-9 [3].
The LCD monitor can be moved freely in all directions.
2) Hold the upper part of the LCD monitor to adjust the position of the monitor (Figure 4-8).

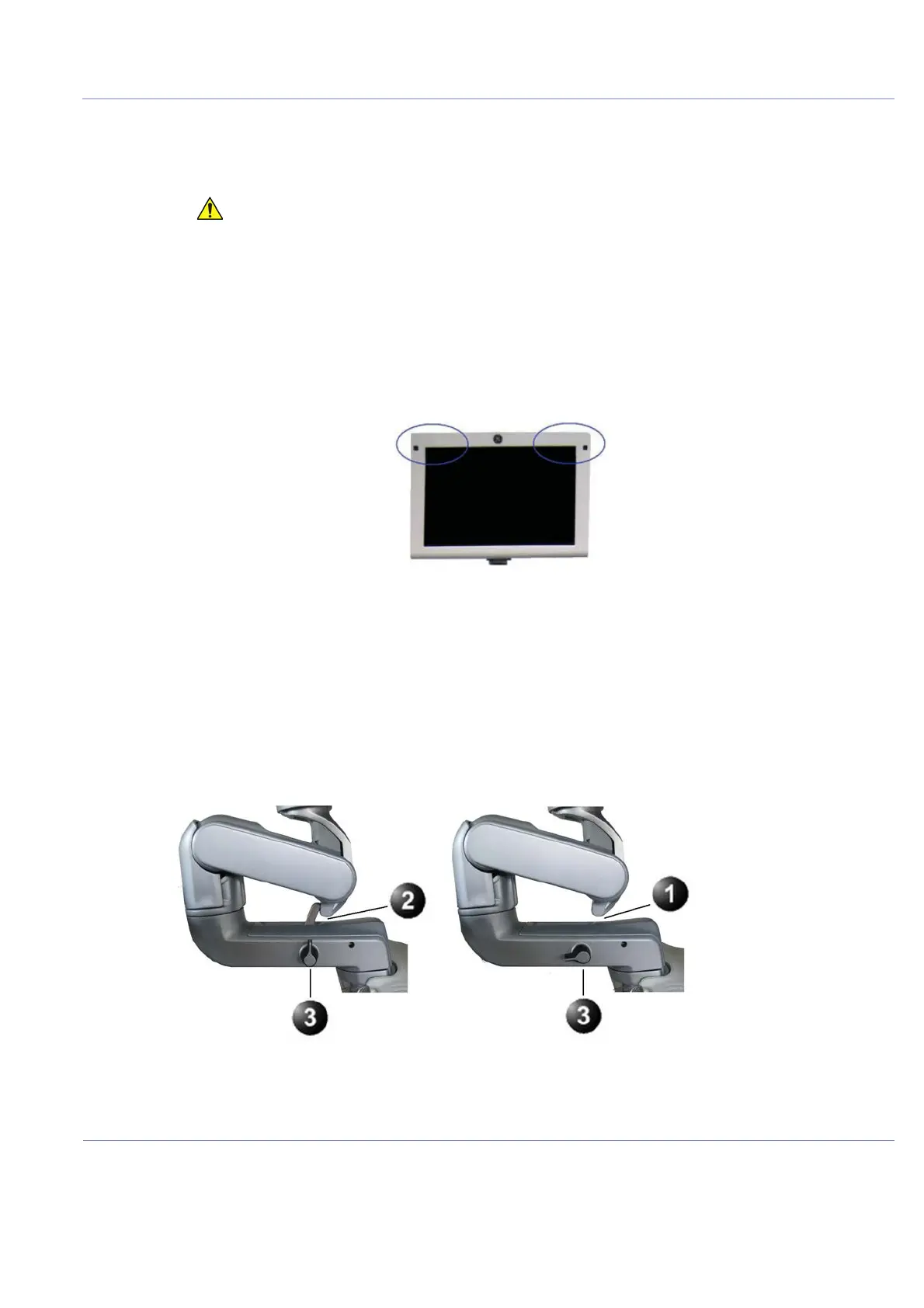

Figure 4-8 Positioning the LCD Monitor
NOTE: When lifting up the monitor from the folded-down state, you can hold the upper corner of the monitor.
4-2-7-1-2 To Lock the LCD Monitor
1) Turn the release knob counter-clockwise to raise the lock.
2) Move the LCD monitor sideways to lock the arm’s joints.
3) Push the monitor down into parked position.
Figure 4-9 LCD Monitor Locking Mechanism
To avoid injury or damage, make sure nothing is within the
range of motion before moving the monitor and monitor arm.
This includes both objects and people.
1. Unlocked LCD monitor
2. Locked LCD monitor
3. Release knob
