IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 5 - Components and Function (Theory) 5-15
PRELIMINARY
5-6-2 Modules Accessed from the Rear
Access to the AC Box and Battery is from the rear of the system, by removal of the Lower Rear Cover.
The Main Cage FAN is also accessed from the rear, by removal of the Upper Rear Cover.

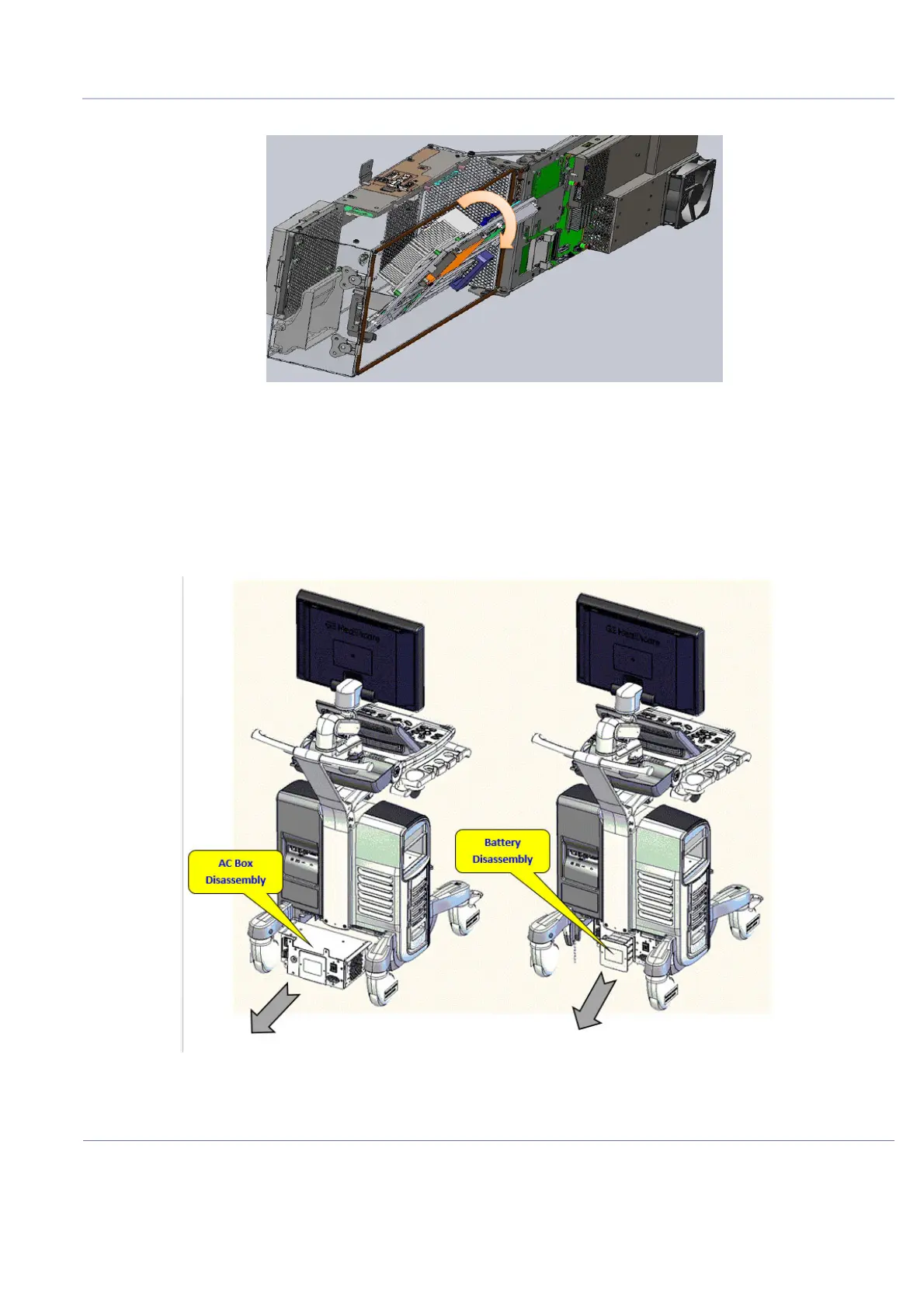

Figure 5-14 Electronic Cage - Access to the Back End Unit
Figure 5-15 Modules Accessed from the Rear
