IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 9 - Renewal Parts 9-7
PRELIMINARY
9-3-2 Covers

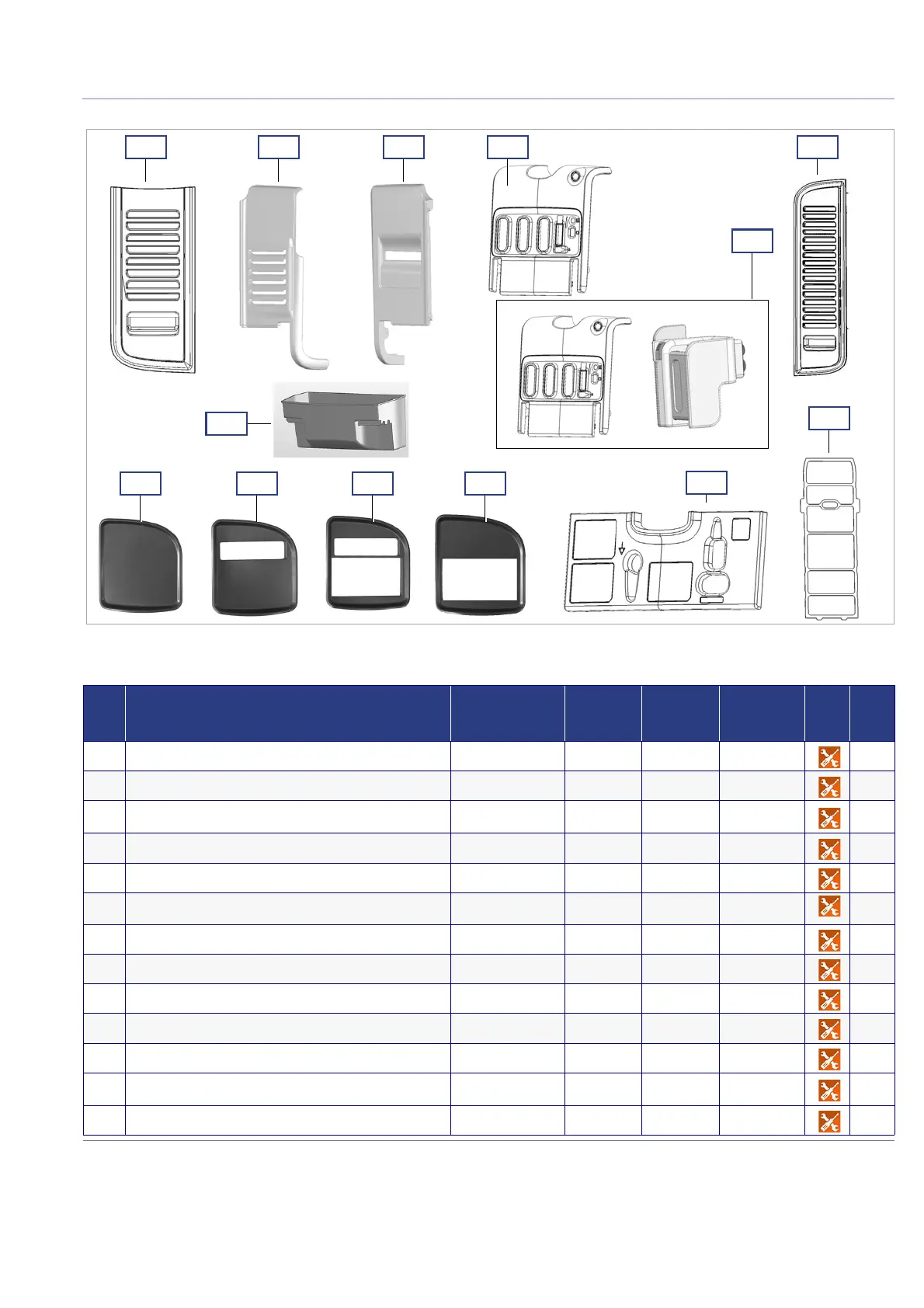

Figure 9-4 Covers - Diagram 1
Table 9-8 Covers - Diagram 1
Item Part Name Part Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
CRU
201 Cover: Rear Right S5490604
202 Cover: Rear Left S5490603
203
Cover: Front Assy.
Note: also necessary to order GE logo kit PN 5543611
S5490614
204 Cover: AC Box S5490612
205 Cover: Air Inlet - Left Side S5490611
206 Air Filter S5432149
Yes
207 Cover: Right Side S5490610
208 Cover: Right Side Blank S5490605
209 Cover: DVD Assy. S5490608
210 Cover: DVD and Printer S5490607
211 Cover: Printer assembly S5490609
212
RS Cable Locker Assy. (cable restrainer)
Note: also necessary to order GE logo kit PN 5543611
S5534095
213 Basket for Probe Cable Management Kit 5555123
201 202 203 205
204
206
207
208 209 210 211
Necessary to also order:
GE logo kit PN 5543611
212
Necessary to also order:
GE logo kit PN 5543611
213
