D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-20 Section 8-2 - Covers - Replacement Procedures
PRELIMINARY
8-2-9 Right Rear Cover Replacement Procedure
8-2-9-1 Tools
Phillips-type screwdriver.
8-2-9-2 Time Required
10 min
8-2-9-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-2-9-4 Right Rear Cover Removal Procedure
Note: The right rear cover is secured to the base of the mechanical platform by two screws: one
at the top of the cover; one through a securing tab on the inner right side of the cover
(Figure 8-17).
1) Disconnect any peripherals currently connected to the system.
2) Remove the following covers: right side, DVD, left side, front.
Refer to Table 9-8 on page 9-7.

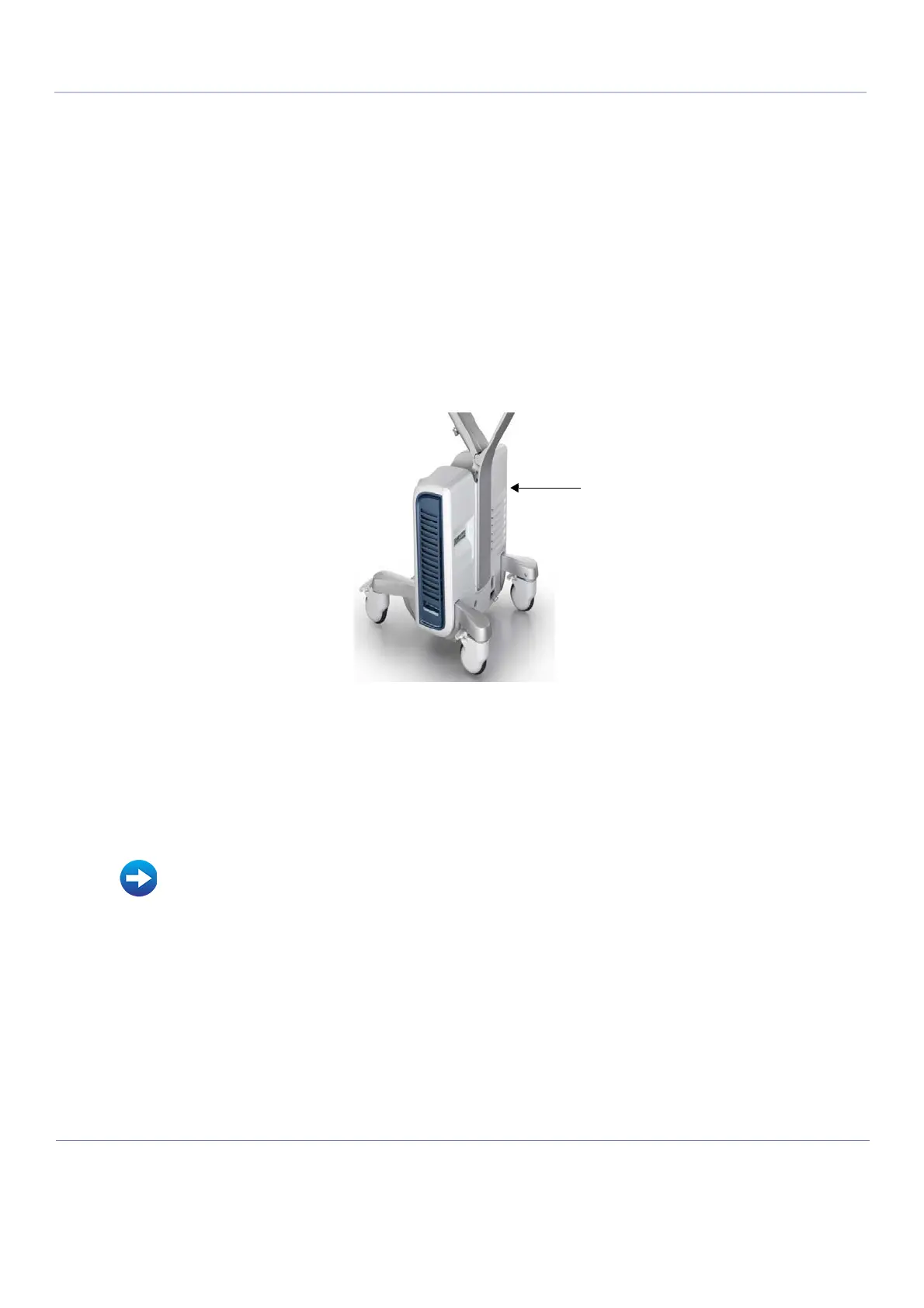

Figure 8-16 Right Rear Cover
• Right Side Cover Removal Procedure on page 8 - 10
• DVD Cover Removal Procedure on page 8 - 11
• Air Inlet (Left Side) Cover Removal Procedure on page 8 - 7
• Front Cover Removal Procedure on page 8 - 16
To Next Page
