8-146 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
8-5-23-5 Battery Installation Procedure
1) Insert a replacement battery into the battery compartment as shown in Figure 8-177 below.
2.) Make sure the battery is properly inserted all the way.
3) Return the two securing screws (previously removed) - Figure 8-176.
4) Refit the AC Distribution Box cover:
5.) Turn ON power to the Vivid™ S60/Vivid™ S70 ultrasound scanner.
THE Vivid™ S60/Vivid™ S70 BATTERY HAS A SAFETY DEVICE.
DO NOT ATTEMPT TO DIS-ASSEMBLE OR ALTER THE BATTERY!
Always observe the precautions listed in Vivid S60N/Vivid S70N External Labels on page
1 - 22.
USE ONLY BATTERIES APPROVED BY GE HEALTHCARE AS SUITABLE FOR USE WITH THE
Vivid™ S60/Vivid™ S70 ULTRASOUND SCANNER

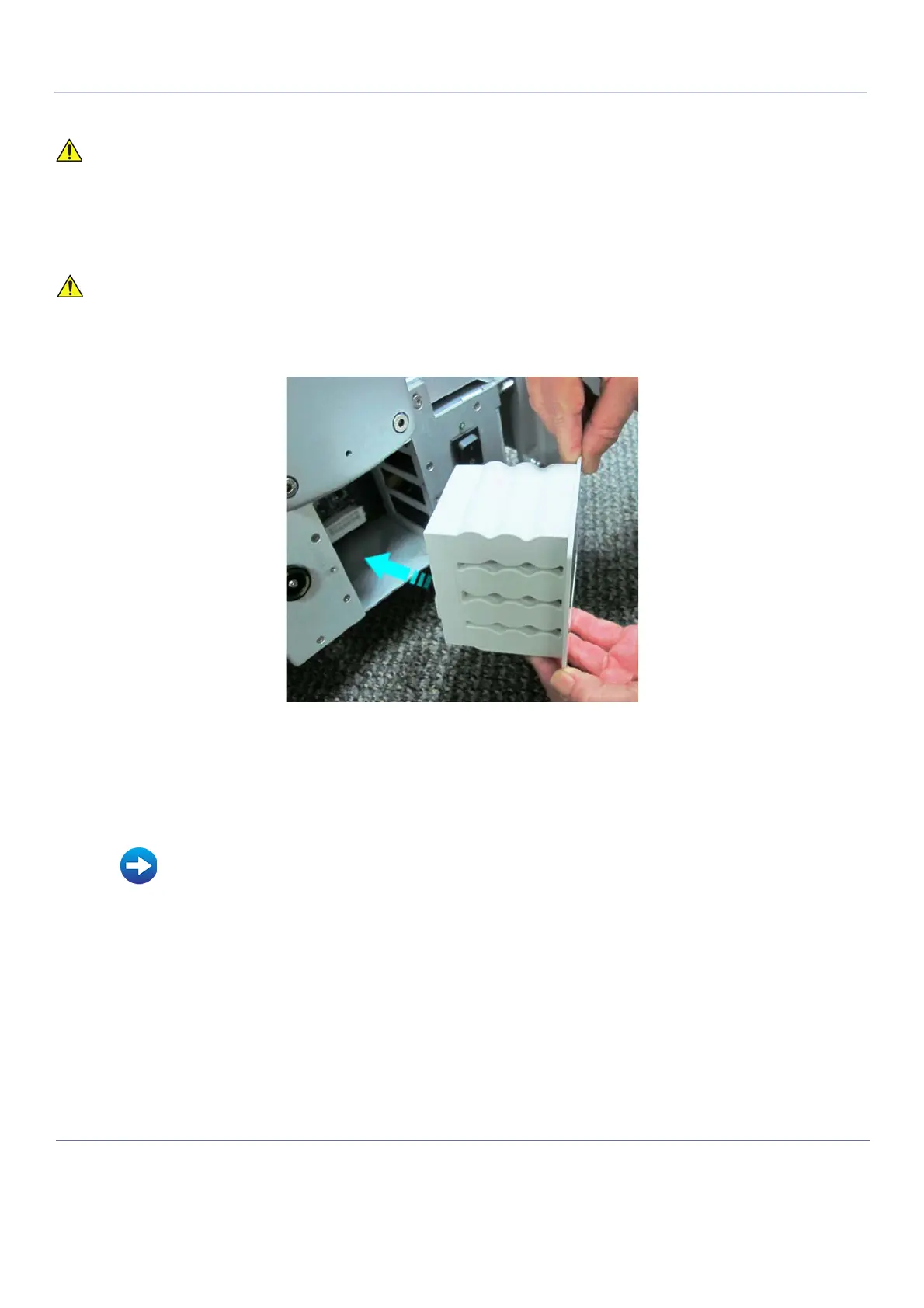

Figure 8-177 Installation of Battery in AC Distribution Box Compartment
• AC Distribution Box Cover Removal Procedure on page 8 - 29
