D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-116 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
8-5-12 CFE Release Arm Replacement Procedure
8-5-12-1 Tools
Appropriate Phillips screwdriver.
8-5-12-2 Time Required
15 minutes
8-5-12-3 Preparation
Shut the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-12-4 CFE Board Release Arm Removal Procedure
The lever-shaped CFE Release Arm is located on the PSB Board - see Figure 8-142.
1) Remove the CFE Board:
2) Uninstall the CFE Release Arm (Lever) by unscrewing the two securing screws as indicated
in Figure 8-142, above.
8-5-12-5 CFE Release Arm Installation Procedure
1) Install a new CFE Release Lever in position on the PSB and secure with the two securing screws
previously removed.
2) Refit the CFE Board:
Refer to Table 9-16 on page 9-15.

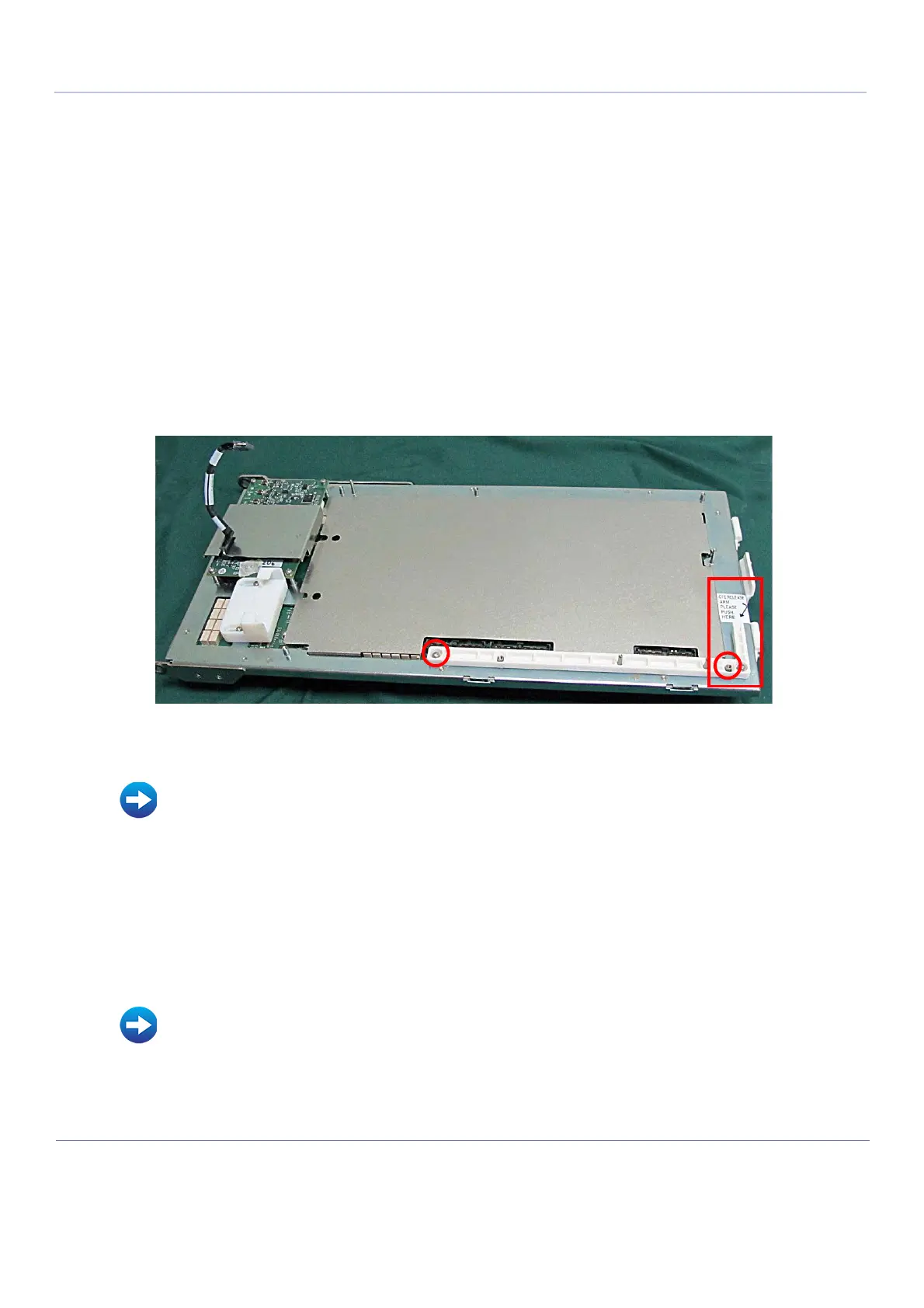

Figure 8-142 Location of CFE Release Arm
• CFE Board Removal Procedure on page 8 - 112
• CFE Board Installation Procedure on page 8 - 115
