IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-115
PRELIMINARY
8-5-11-5 CFE Board Installation Procedure
1.) Fit the four TRX32 Boards (previously removed) into a new CFE Board.
Refer to TRX32 Boards Installation Procedure on page 8 - 129.
2.) Gently align the new CFE Board on the guide pins located on the base of the Cage
(Figure 8-141 below) and lower the CFE Board into position.
3.) Return and fasten the 6 retaining screws (previously removed).
4.) Return the FEPS to its position on the CFE board:
5.) Reconnect the ECG-to-CFE cable to the CFE Board.
6) Return the Front End door assembly to the system, reconnect the cables (previously disconnected),
close the cabinet cage door and fasten securely with the two latches:
7.) Refit the following covers: front, DVD, right side, left side
8.) Proceed to the instructions for performing a Vivid™ S60 or Vivid™ S70 software installation
procedure, commencing with step 11 on page 8-180.

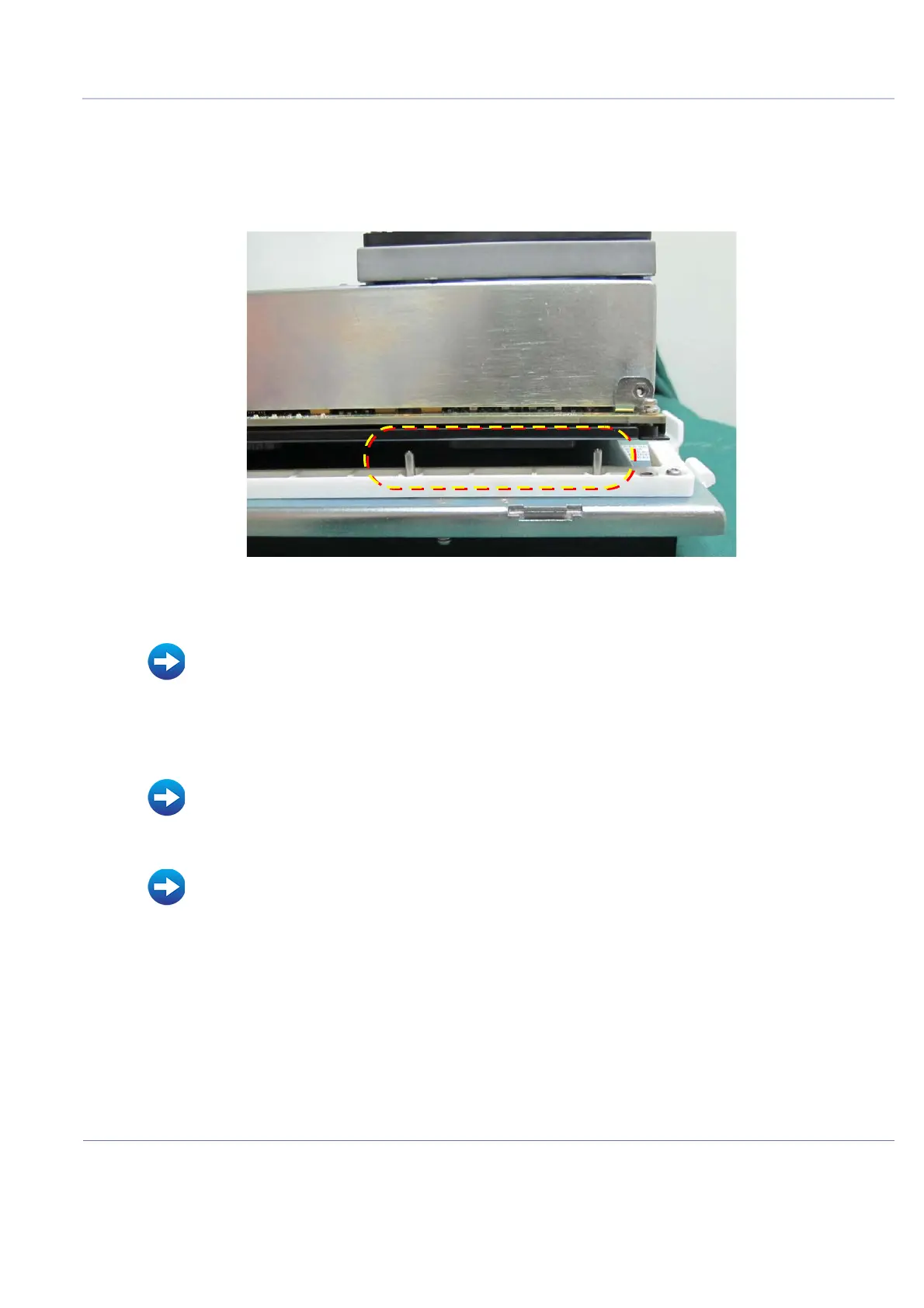

Figure 8-141 CFE Board Aligned on Guide Pins
• Front End Power Supply (FEPS) Installation Procedure on page 8 - 111
• Front End Door Assembly Closing and Installation Procedure on page 8 - 87
• Front Cover Installation Procedure on page 8 - 19
• DVD Cover Installation Procedure on page 8 - 12
• Right Side Cover Installation Procedure on page 8 - 10
• Air Inlet (Left Side) Cover Installation Procedure on page 8 - 8
