D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-154 Section 8-6 - Mechanical Platform Components - Replacement Procedures
PRELIMINARY
8-6-6-4 Removing the LCD Arm Riser
1.) Remove the cables one by one.
2.) Unscrew three screws and remove the LCD Arm Riser.
8-6-6-5 Install the LCD Arm Riser
Install the LCD Arm Riser by performing Removing the LCD Arm Riser on page 8 - 154 in reverse
sequence.
Torque:
• The tree M5 screws shall be tightened with Torque: 5.8 Nm +/- 5%.
• The tree M3 screws shall tightened with Torque: 1.3 Nm +/- 5%.

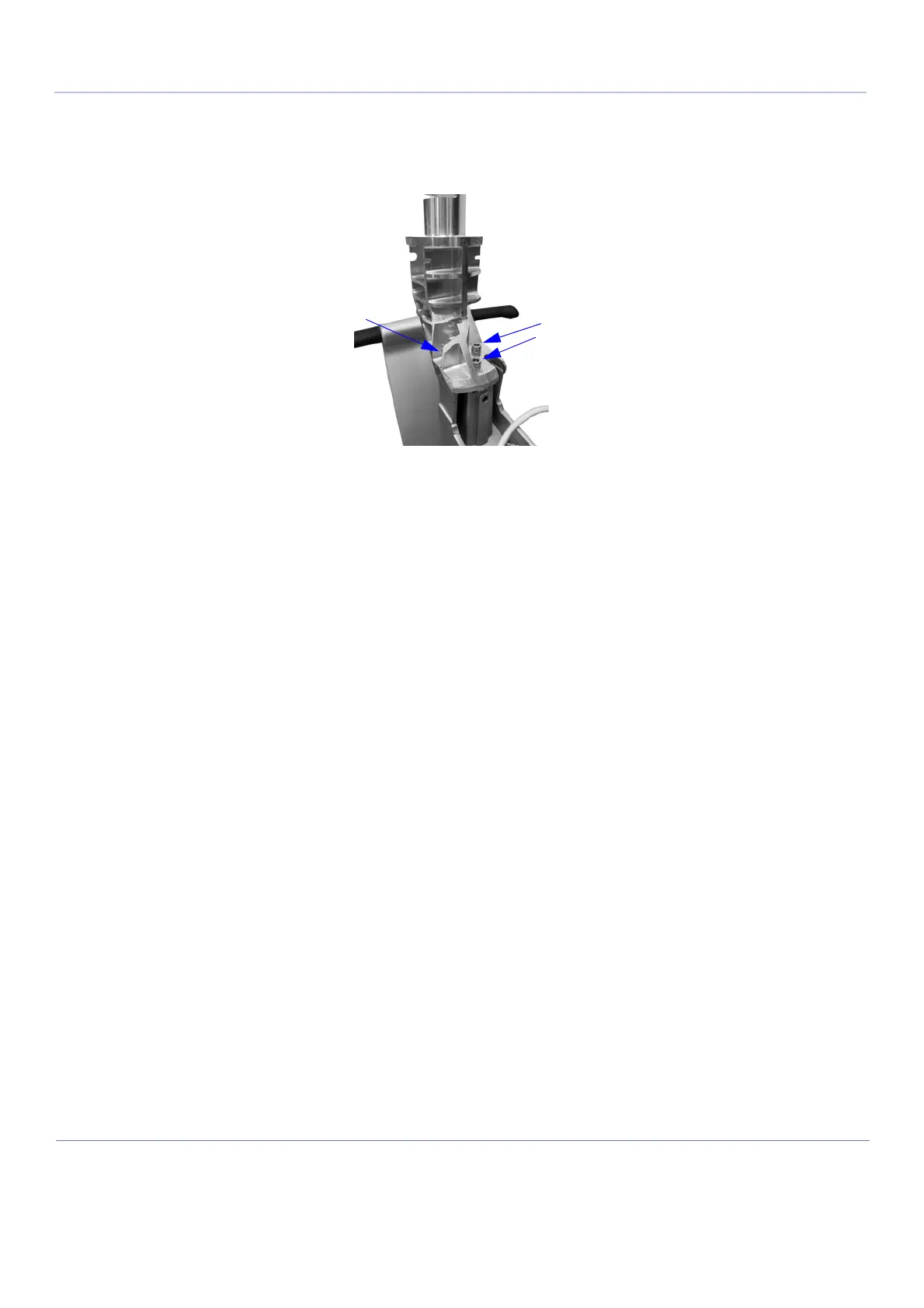

Figure 8-188 Unscrew three screws and remove the LCD Arm Riser
