IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
1-22 Section 1-1 - Overview
PRELIMINARY
1-7-3 Vivid S60N/Vivid S70N External Labels
In addition to the labels described in the previous section, an additional label may be found on the
Vivid S60N/Vivid S70N ultrasound unit, as described in the following section.
1-7-3-1 GND Label
Indicates the protective earth (grounding) terminal. The GND label (Figure 1-3 below) is located at the
rear of the system.

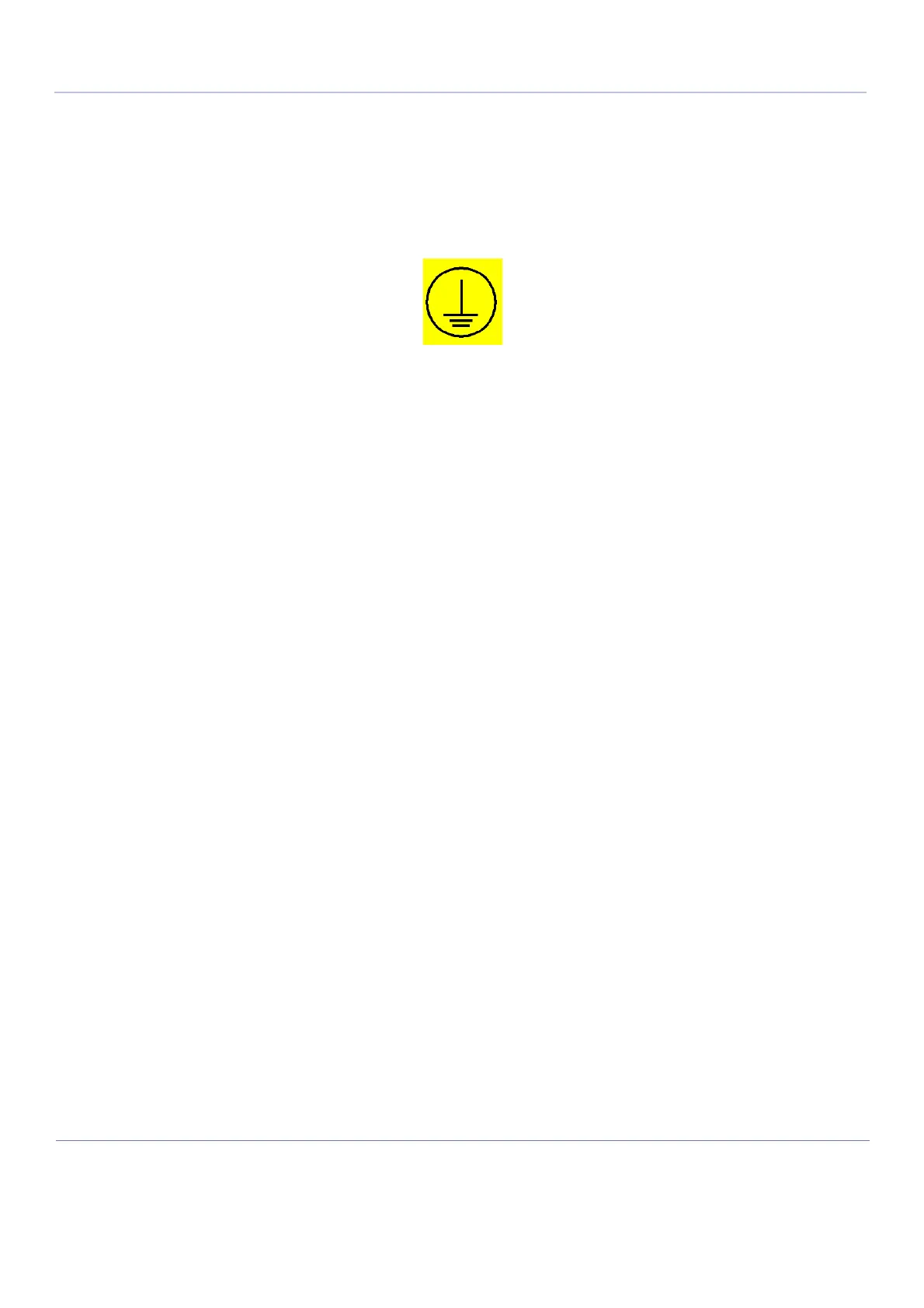

Figure 1-3 GND Label
