GE Vivid S60N - Fan (AC Distribution Box) Installation Procedure

D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-144 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
5.) Remove the other 3 remaining securing rubber holders.
8-5-22-5 Fan (AC Distribution Box) Installation Procedure
NOTE: When assembling a new AC Box Fan on the fan base, make use of the replacement rubber holders
(kit supplied with the new Fan).
1.) From the underside of the fan, thread the rubber holder through the aperture on the fan and pass
the rubber holder through the aperture on the fan base - Figure 8-175.
2.) Pull the rubber holder through from above the fan base until it fastens the fan securely to the base.
Repeat this task using the 3 remaining rubber holders provided.
3.) Connect the fan cable to the connector on the AC Distribution Box - Figure 8-174.
4.) Place the Fan in position then fasten with the 4 securing screws (previously removed) - Figure 8-173.
5.) Install the AC Distribution Box:
6.) Turn ON power to the system.

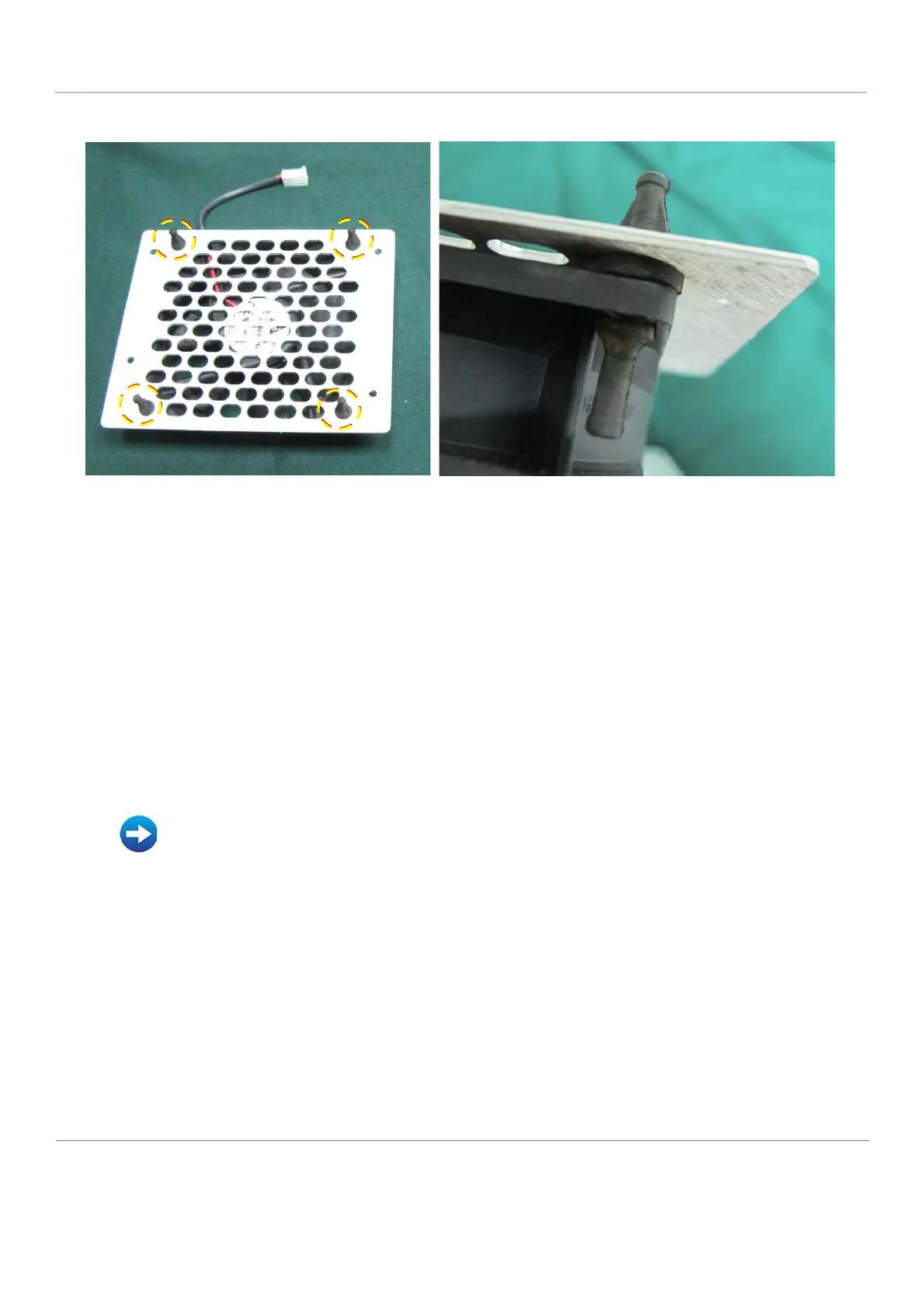

Figure 8-175 Flexible Rubber Holders - Cut and Remove
• AC Distribution Box Removal Procedure on page 8 - 139
