IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-11
PRELIMINARY
8-2-4 DVD Cover Replacement Procedure
Note: The removal and installation procedures for all the peripheral device covers are all very similar.
The various covers clip onto the mechanical platform with 4 snap-lock securing clips on the
inner side of the cover - the clips are like those illustrated in Figure 8-5 on page 8-10.
8-2-4-1 Tools
Phillips screwdriver.
8-2-4-2 Time Required
5 min
8-2-4-3 Preparations
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-2-4-4 DVD Cover Removal Procedure
The DVD Cover is shown in Figure 8-6.
1) Remove the right side cover:.
2.) Grip the bottom of the DVD cover and pull it towards you to release it from the snap-lock securing
clips.
Refer to Table 9-8 on page 9-7.
• Right Side Cover Removal Procedure

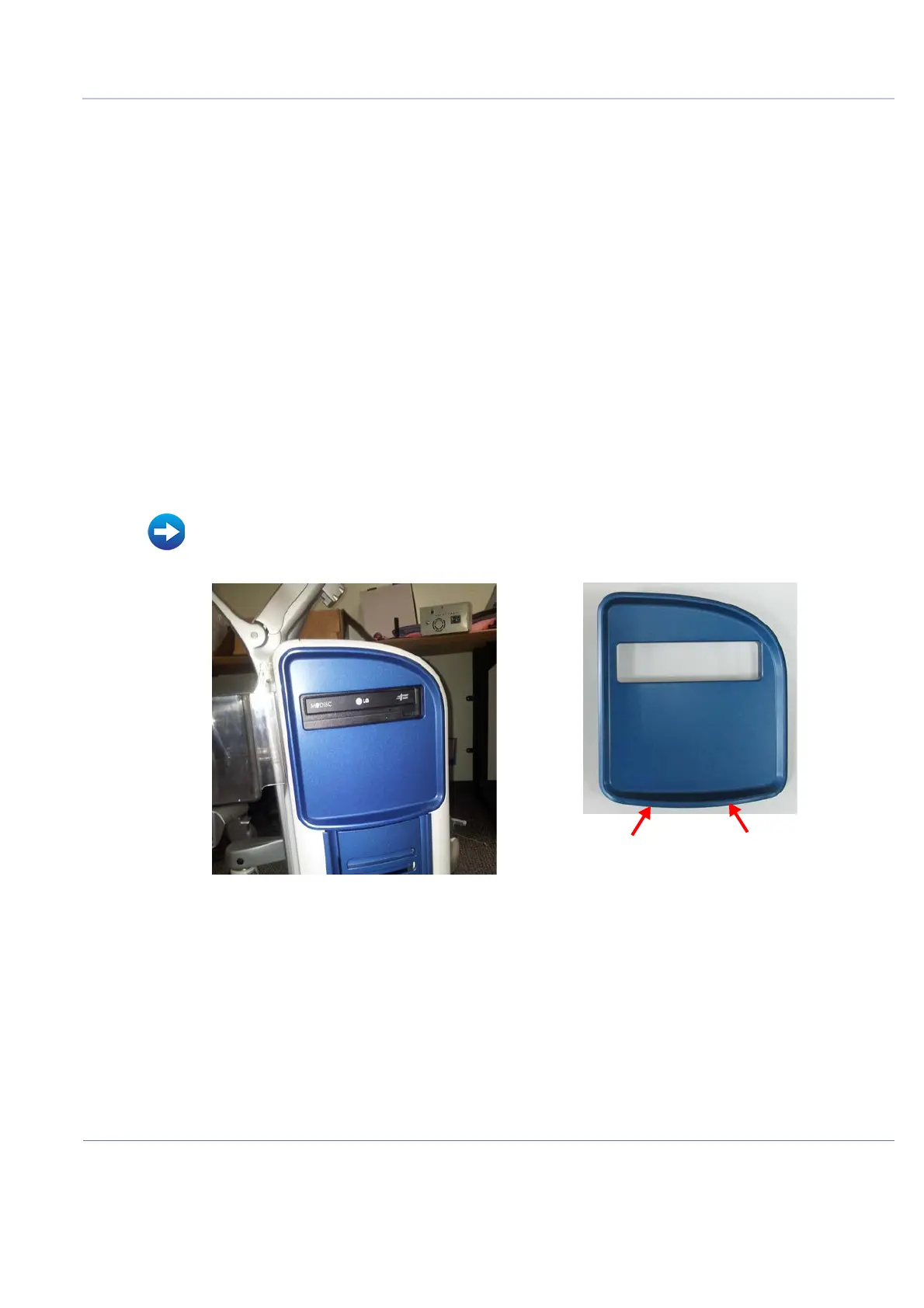

Figure 8-6 Removing the DVD Cover
To Next Page
