IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-171
PRELIMINARY
8-6-13 Brake and Locking Wheels Replacement Procedure
NOTE: The procedure below is the same whether replacing a Brake Locking Wheel (Front Wheel:) or a Rear
Wheel.
8-6-13-1 Tools
Use the appropriate flat screwdriver and a 6mm Allen key, as indicated in the Brake and Locking Wheels
replacement procedure.
8-6-13-2 Time Required
45 min
8-6-13-3 Preparations
Make sure the system is standing securely on a level surface, with the wheels in the locked position.
8-6-13-4 Brake and Locking Wheels Removal Procedure
1) Using a flat screwdriver, carefully remove the plastic screw cap covering the securing screw on the
inner side of the wheel housing, as shown in Figure 8-208.
2) Using a 6mm Allen key, loosen and remove the screw that secures the wheel shaft in the wheel
securing socket.
Refer to Table 9-7 on page 9-6

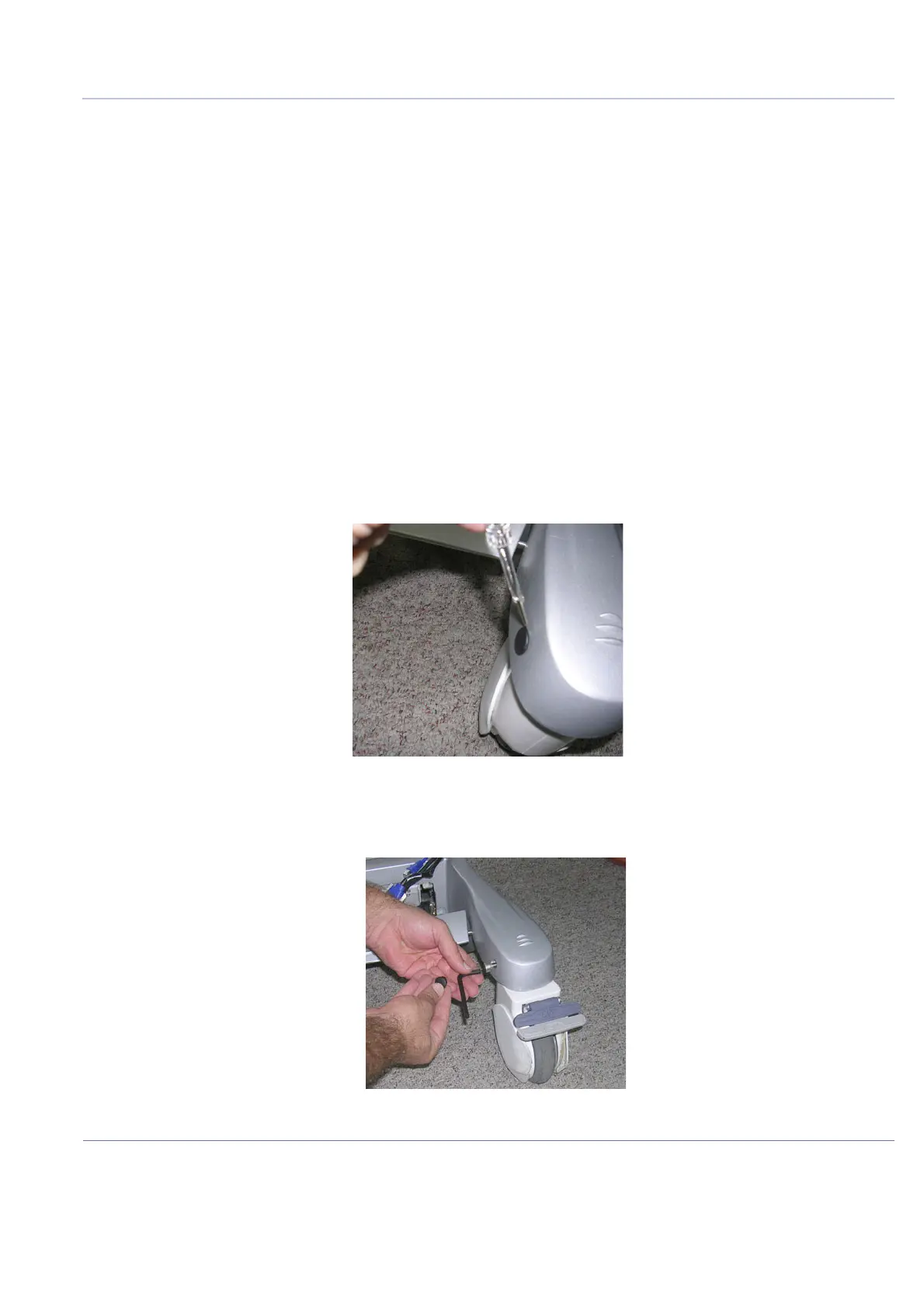

Figure 8-208 Removing the Screw Cap
Figure 8-209 Removing the Securing Screw
