IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
9-6 Section 9-3 - Renewal Parts Lists and Diagrams
PRELIMINARY
9-3-1 Mechanical Hardware Parts (cont’d)

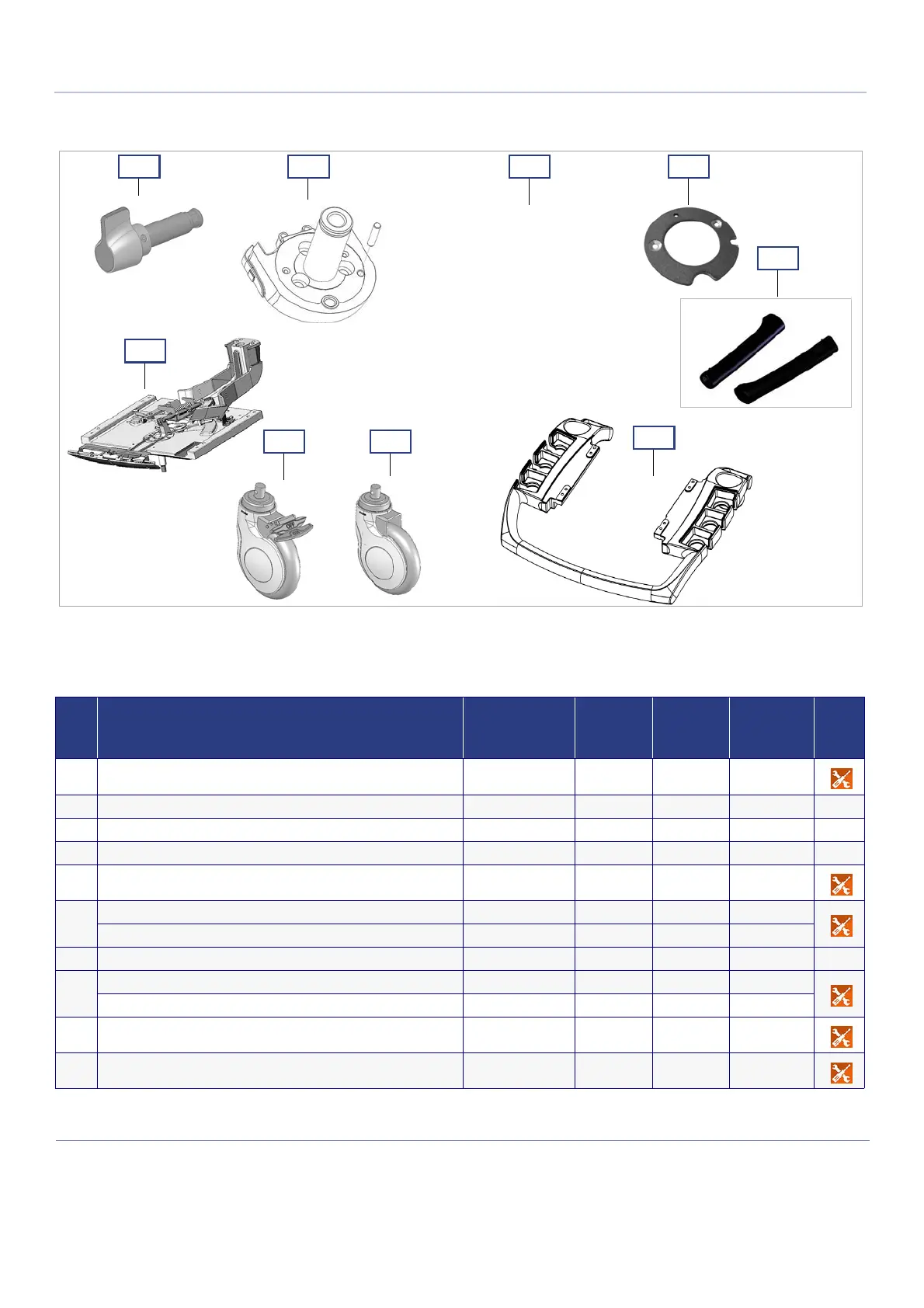

Figure 9-3 Mechanical Hardware Parts - Diagram 3
Table 9-7 Mechanical Hardware Parts - Diagram 3
Item Part Name Part Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
116 Arm release knob module S5475537
117 First Axis with pin S5491951
118 Not Used On This Product
119 Sliding ring for first axis S5476640
120 Mechanical Assy. Interface base for operator panel S5450417
121
Wheel: Castor DT150BR74-W603U - with brake 5748387 S5508379
Wheel_Front_6inch with brake locking S5508379 5748387
122 Not Used On This Product
123
Wheel: Castor DT150DVR74-W603U - with direction lock 5748386 S5508380
Wheel_Rear_6inch with free swivel S5508380 5748386
124 Probe Shelf - Vivid™ S6 S2421613
125 Rear Handle Kit S2424091
116 117 118
123
124
119
125
NOT USED ON THIS PRODUCT
120
121
To Next Page
