Chapter 4 - General Procedures an
d Functional Checks
4-25
PRELIMINARY
4-3-5-3

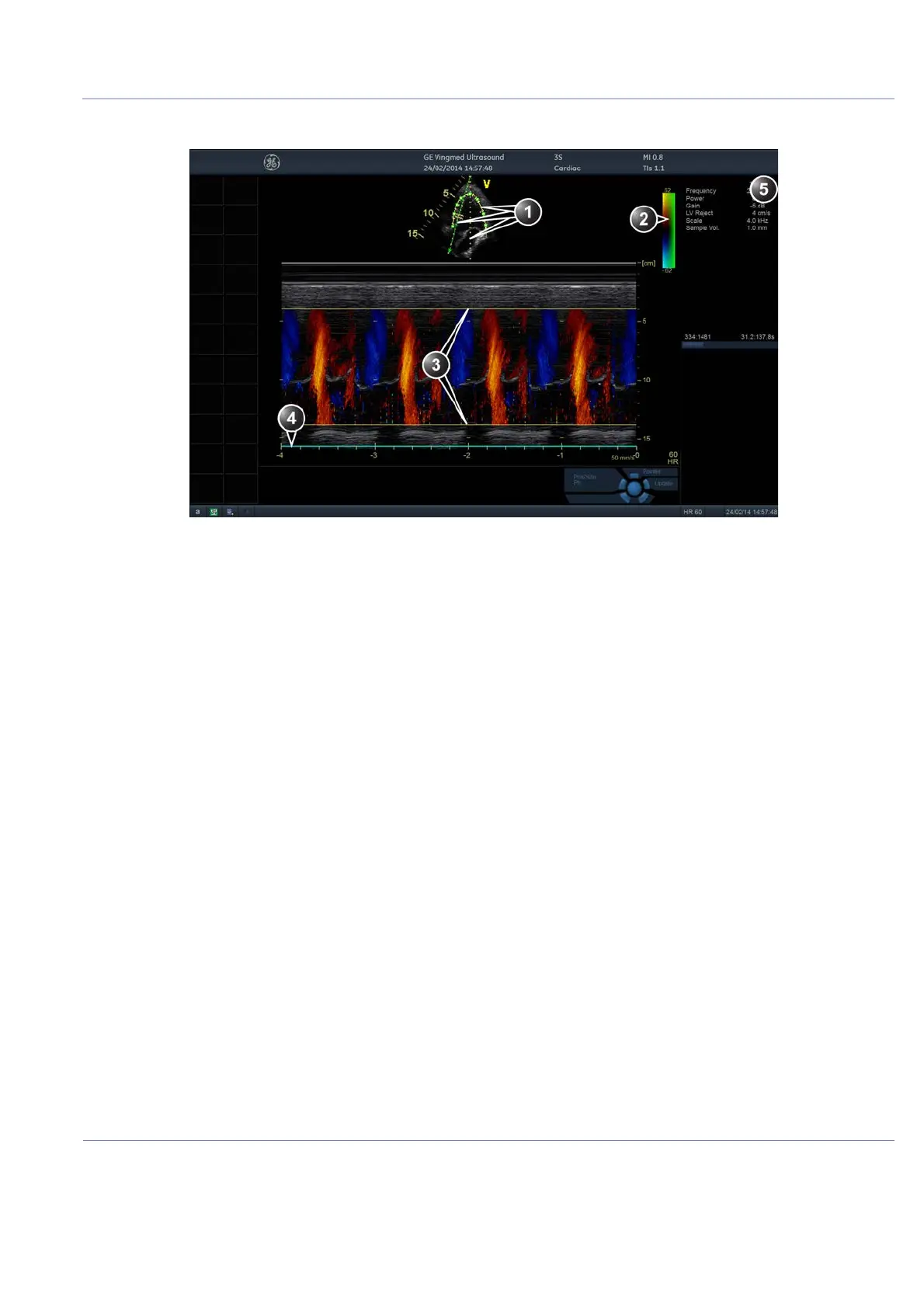

Color M-Mode Overview
Figure
4-18 Color M-Mode Screen (Composit
e)
1.
T
ime motion cursors (M-Mode, AMM and Curved AMM)
2. Color
bar
3.
Flow sector marker
4. T
ime
scale
5. Parameter
window
170
