IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-142 Section 8-5 - Electronic Cage Components - Replacement Procedures
PRELIMINARY
8-5-22 Fan (AC Distribution Box) Replacement Procedure
8-5-22-1 Tools
Phillips screwdriver.
8-5-22-2 Preparation
Shut down the Vivid™ S60/Vivid™ S70 ultrasound unit, as described in Power Shut Down on page 4 - 7.
8-5-22-3 Time Required
10 minutes
8-5-22-4 Fan (AC Distribution Box) Removal Procedure
NOTE: Access to the Fan is from the right side of the AC Distribution Box - Figure 8-172.
1.) Remove the AC Distribution Box and place it on a clean stable surface:
FRU Part #
Refer to Table 9-17 on page 9-16.

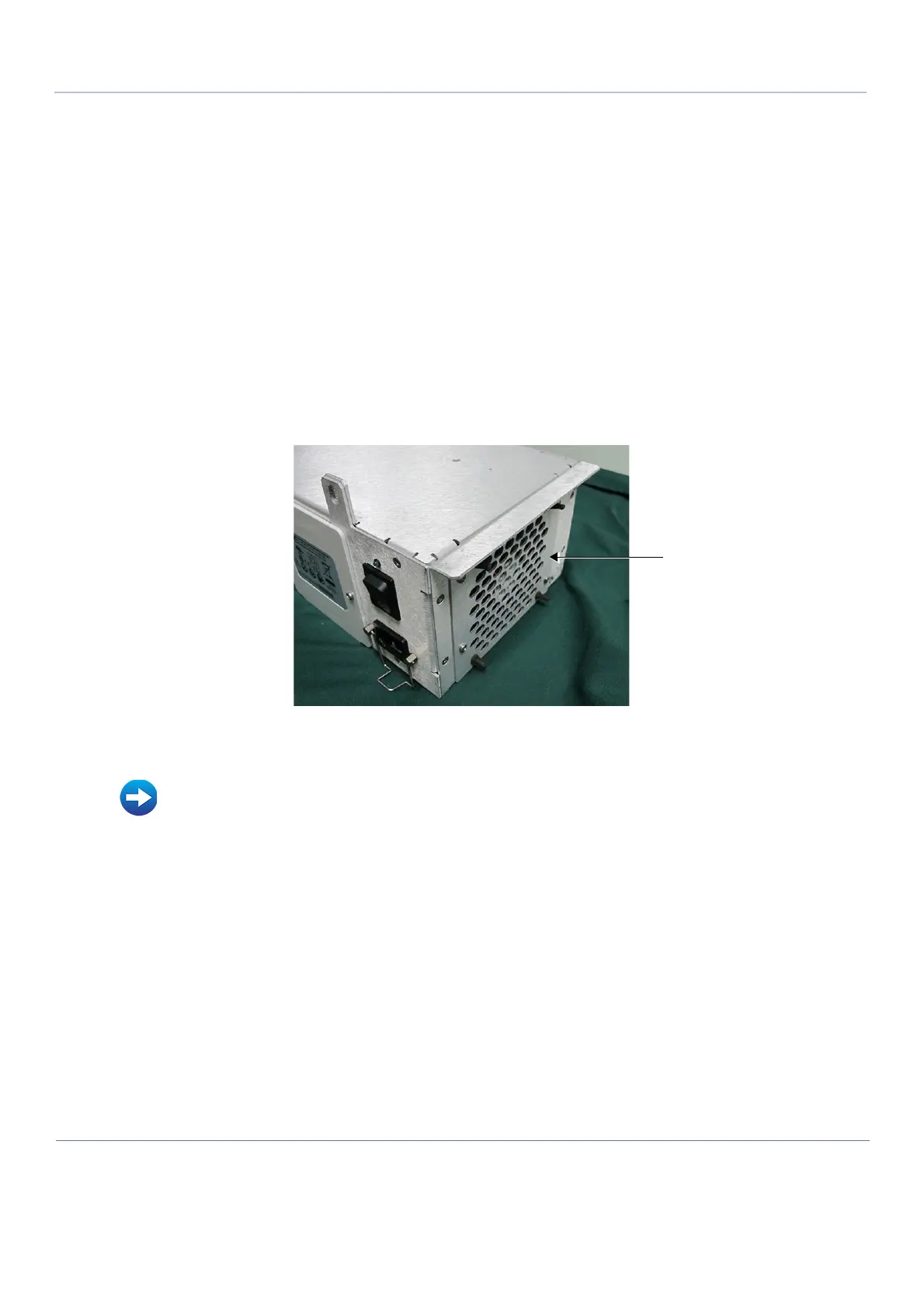

Figure 8-172 AC Distribution Box Fan - Location
AC Distribution Box Removal Procedure on page 8 - 139
Fan
