D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-143
PRELIMINARY
2.) Remove the 4 Fan securing screws from the side of the AC Box - Figure 8-173 below.
3.) Carefully withdraw the AC Box Fan and disconnect the fan cable from the connector on the
AC Distribution Box - see Figure 8-174 below.
4.) To remove the fan from its base, stretch one of the flexible rubber securing holders (grommets) and
cut it. Then pull it away from the fan’s base to remove it - see Figure 8-175 below

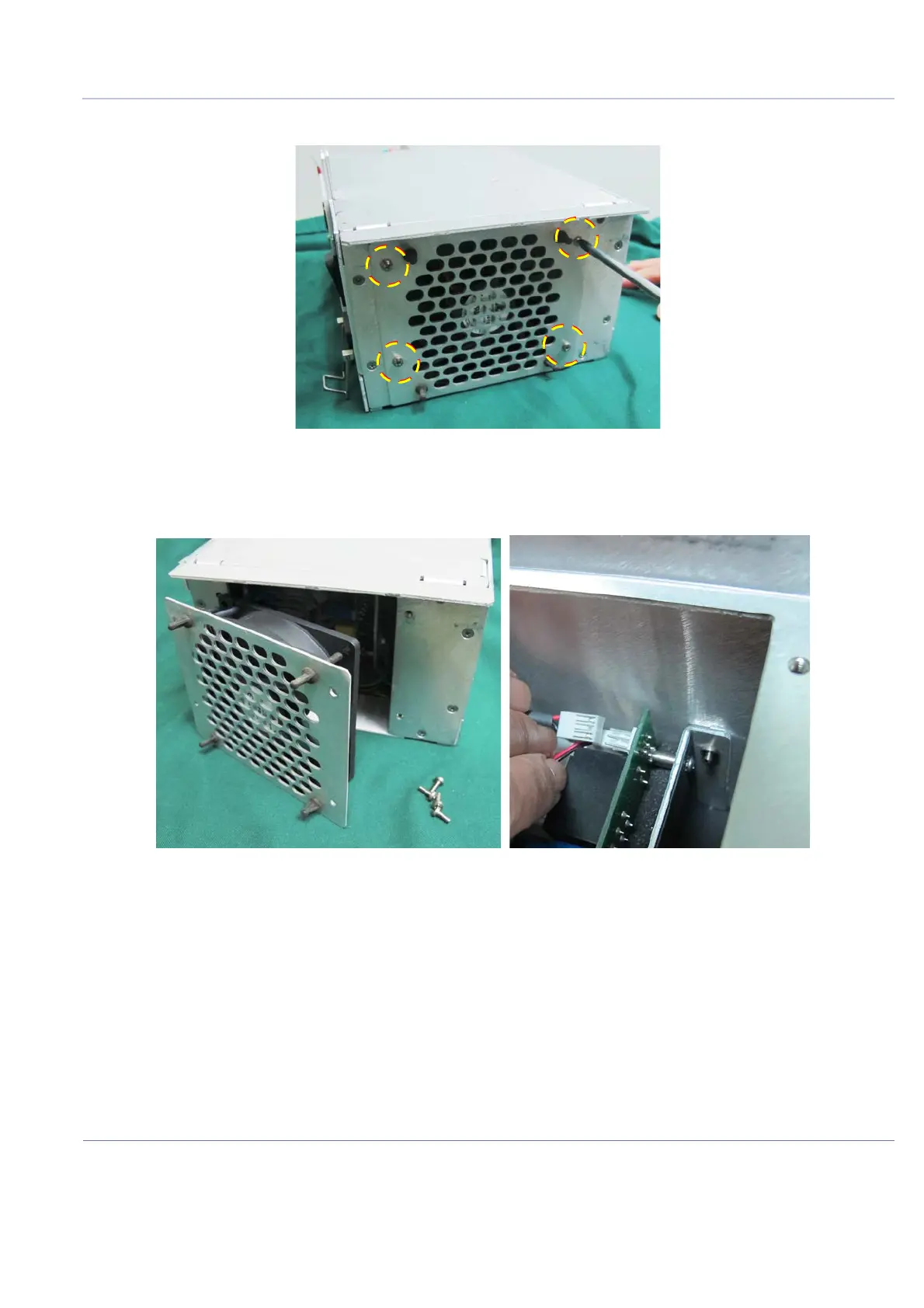

Figure 8-173 AC Box Fan Securing Screws
Figure 8-174 Disconnect the Fan Cable from the AC Distribution Box
