GE Vivid S60N - Probe Cup Holders Replacement Procedure; Tools; Probe Cup Holders Removal Procedure; Probe Cup Holders Installation Procedure

D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-50 Section 8-3 - Control Console Components - Replacement Procedures
PRELIMINARY
8-3-9 Probe Cup Holders Replacement Procedure
8-3-9-1 Tools
No special requirements
8-3-9-2 Probe Cup Holders Removal Procedure
The probe cup-holders are located on either side of the operator’s panel - see - Figure 8-56.
• From beneath the operator’s panel, press the gel-cups upwards and remove them.
8-3-9-3 Probe Cup Holders Installation Procedure
• Place a new set of probe-cup holders in their respective positions on the operator’s panel.
FRU Part #
Refer to Table 9-9 on page 9-8.

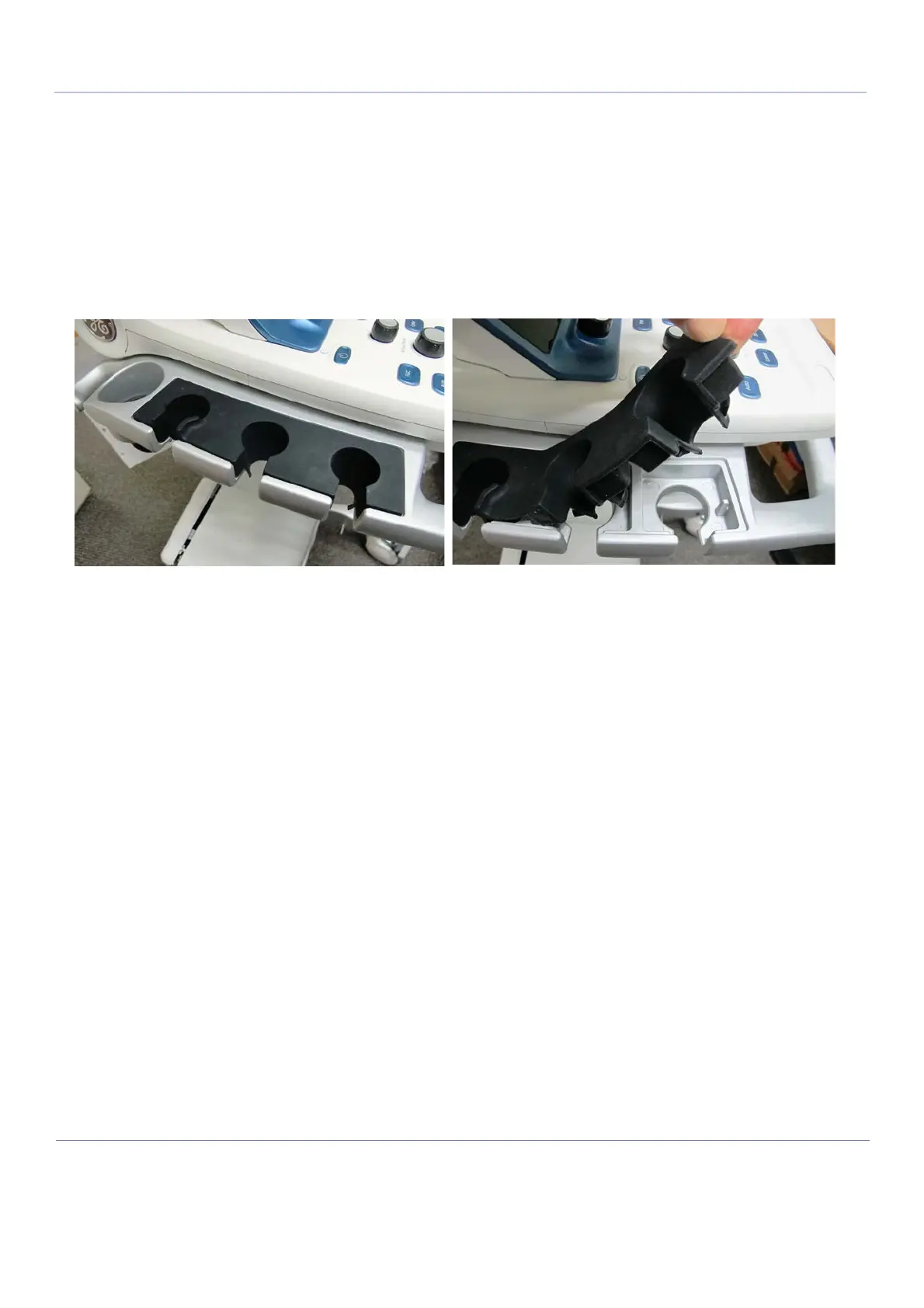

Figure 8-56 Probe Cup Holders
