IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
8-22 Section 8-2 - Covers - Replacement Procedures
PRELIMINARY
6.) Push the cover up and away from you (Figure 8-19) and remove from the system.
8-2-9-5 Right Rear Cover Installation Procedure
1) Return the right rear cover to its original position at the rear of the system, taking care to tilt it
sufficiently so that the lower portion overlaps the system chassis on the right side - Figure 8-19.
2) Make sure the cutout in the cover is properly aligned with the locating pin (Figure 8-18) then push
the cover downwards to secure it in position.
3) Return the screw (previously removed) to the securing tab on the inner right side of the cover and
tighten securely - Figure 8-17, right.
4) Return the screw (previously removed) to the top bracket of the cover and tighten securely
Figure 8-17, left.
5) Install the following covers: front, left side, DVD, right side
6.) Reconnect any peripherals previously connected to the system.
.

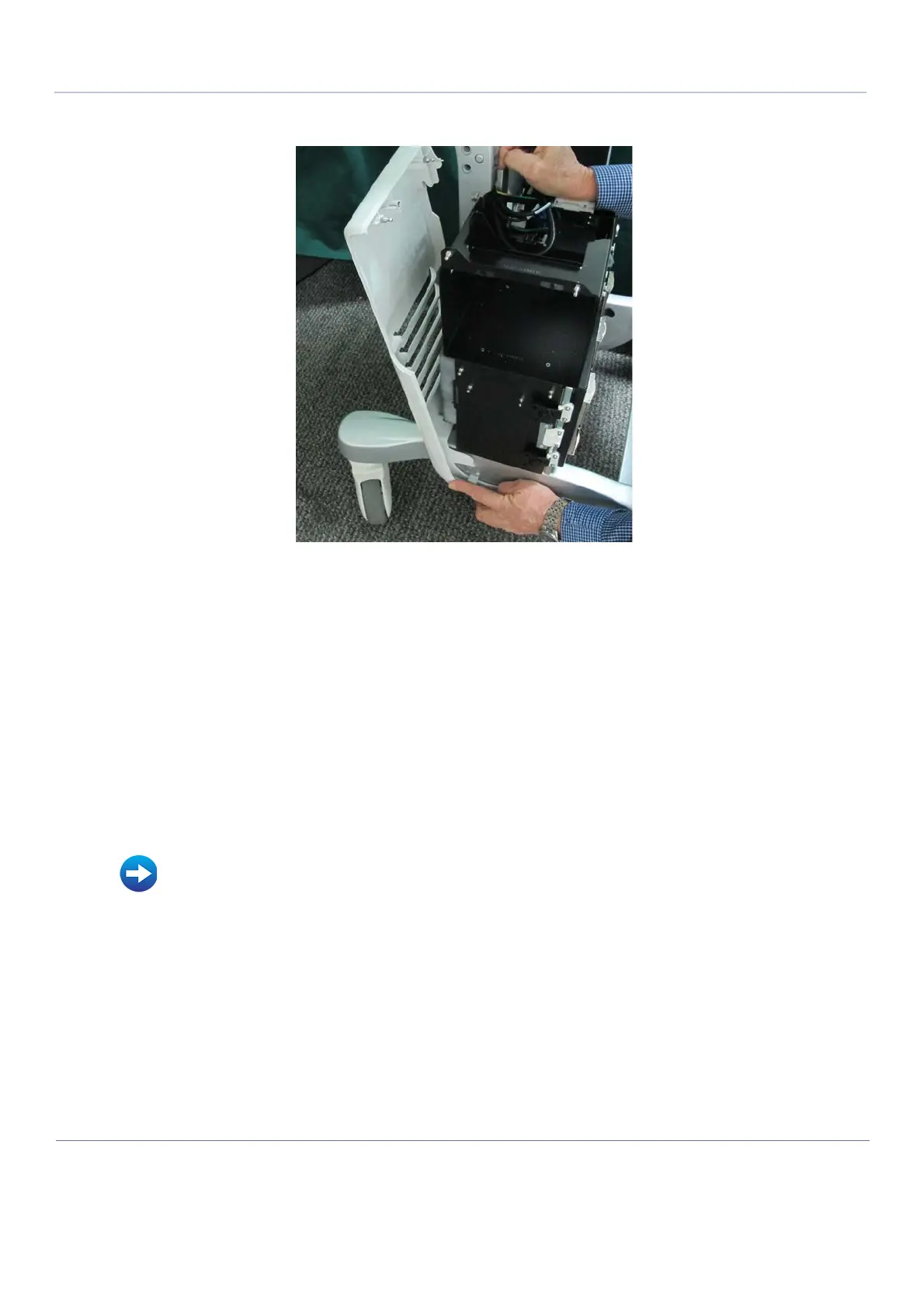

Figure 8-19 Removing the Right Rear Cover
• Front Cover Installation Procedure on page 8 - 19
• Air Inlet (Left Side) Cover Installation Procedure on page 8 - 8
• DVD Cover Installation Procedure on page 8 - 12
• Right Side Cover Removal Procedure on page 8 - 10
