D
IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-21
PRELIMINARY
3) Remove the screw from the top bracket of the cover (Figure 8-17, left).
4.) Remove the screw from the securing tab on the bottom inner right side of the cover
(Figure 8-17, right).
5) Lift the cover upwards and carefully release the top of cover from the locating pin on the side of the
mechanical platform (shown in Figure 8-18).

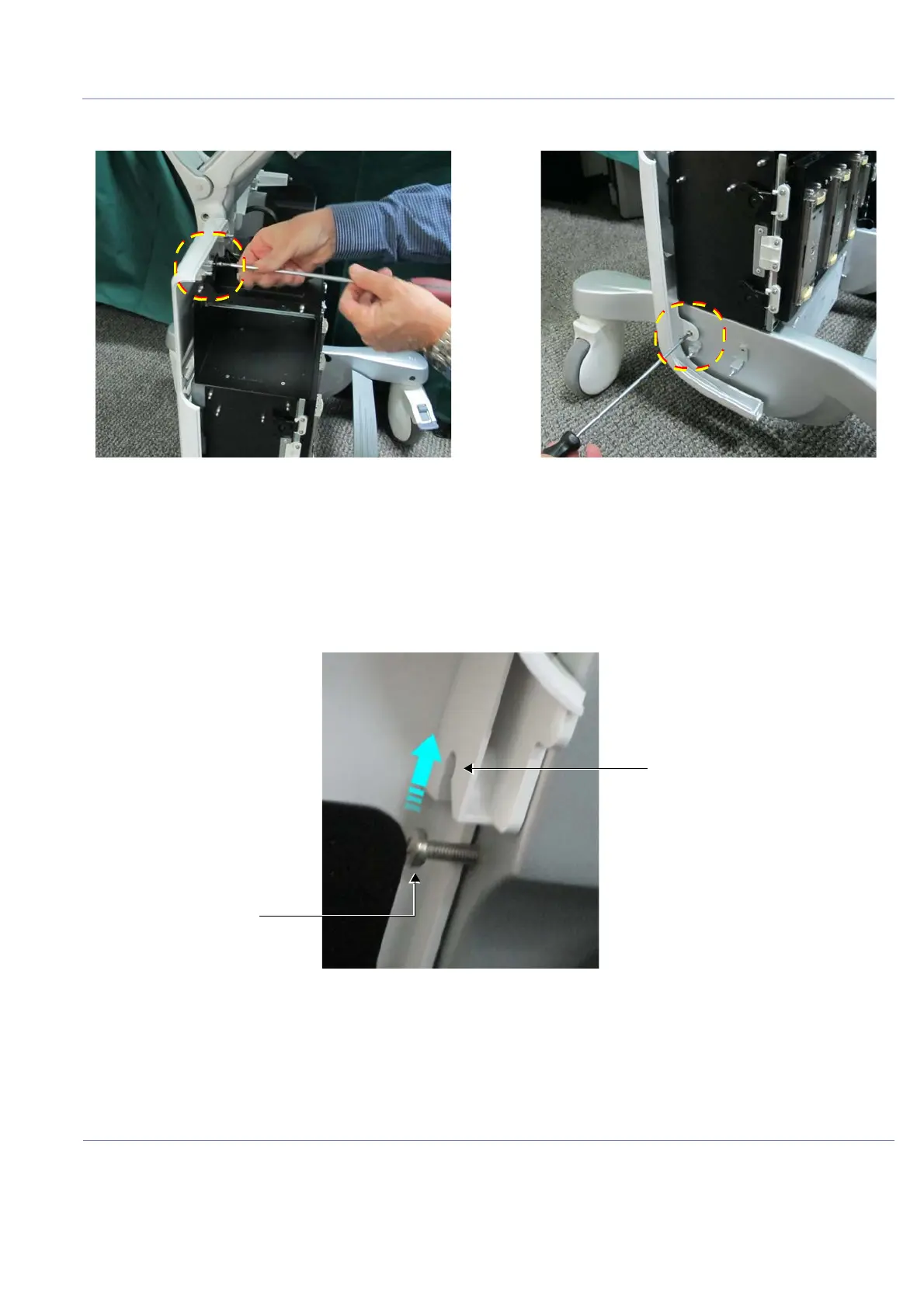

Figure 8-17 Right Rear Cover - Removing Securing Screws
Figure 8-18 Releasing Top of Cover from Locating Pin
Cutout in Cover
Locating Pin
To Next Page
