8-170
Section 8-6
- Mechanical Platfo
rm Components - Rep
lacement Procedu
res
PRELIMINARY
When moving the sy
stem
:
Prepare the sys
tem as shown in
Figure 8-207
, with the monitor screen folded
downwards
.
NOTE:
Image for illustration pu
rposes only (p
ending update).
7.)
Turn ON power to the system.

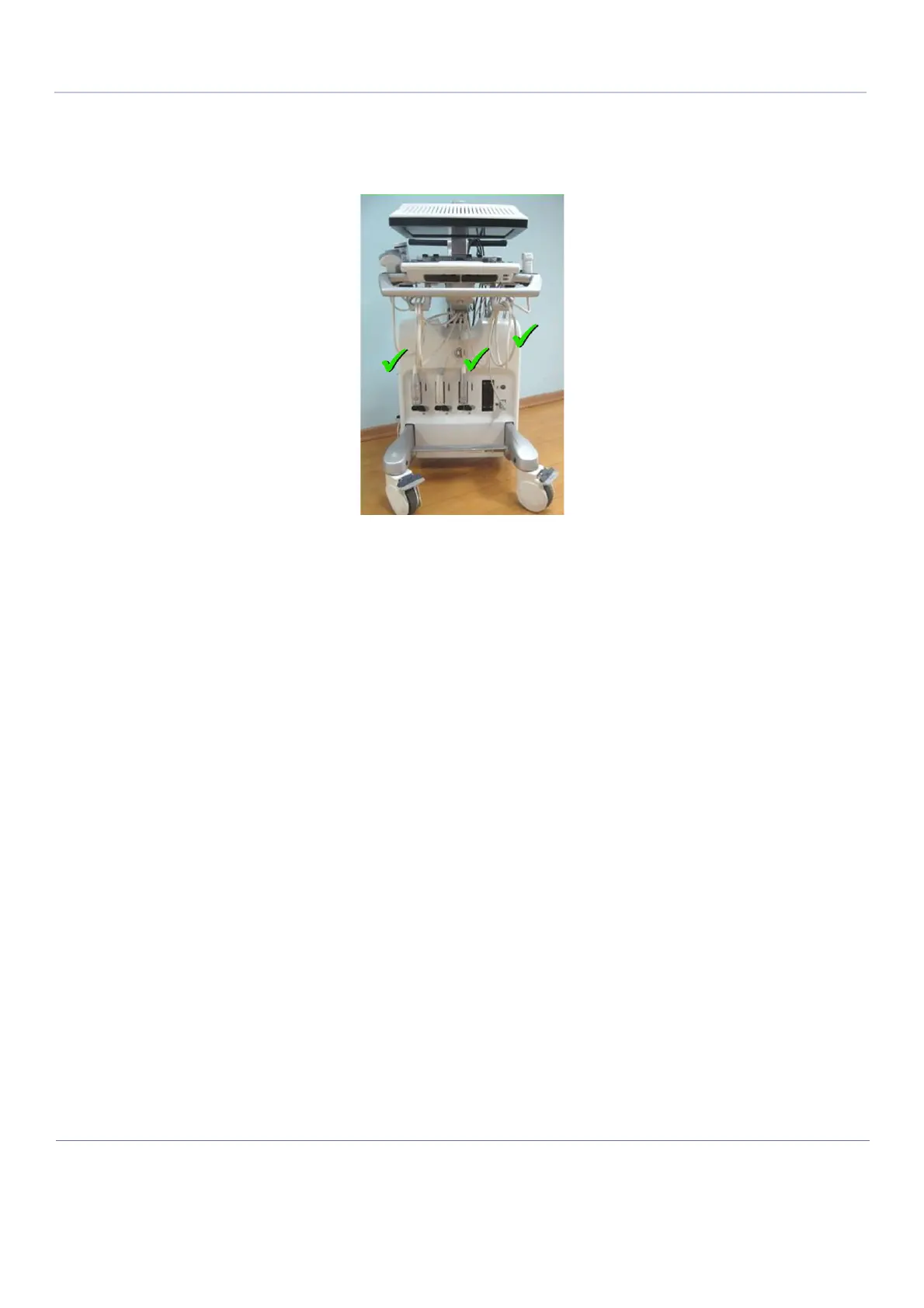

Figure 8-207 Viv
id™ S60/Vivid™ S70
Scanner and Cables - Ready for
Moving
399
401
