8-5-10-5 Front End Power Supply (FEPS) Installation Procedure
1) Return a new FEPS to its position on the Front End door assembly - see Figure 8-135 below.
2) Follow the FEPS removal procedure step 3, in reverse order.
3) Return the Front End door assembly to the system, reconnect the cables (previously disconnected),
close the cabinet cage door and fasten securely with the two latches:
4) Refit the following covers: front, DVD, right side, left side
5) Turn ON power to the system.

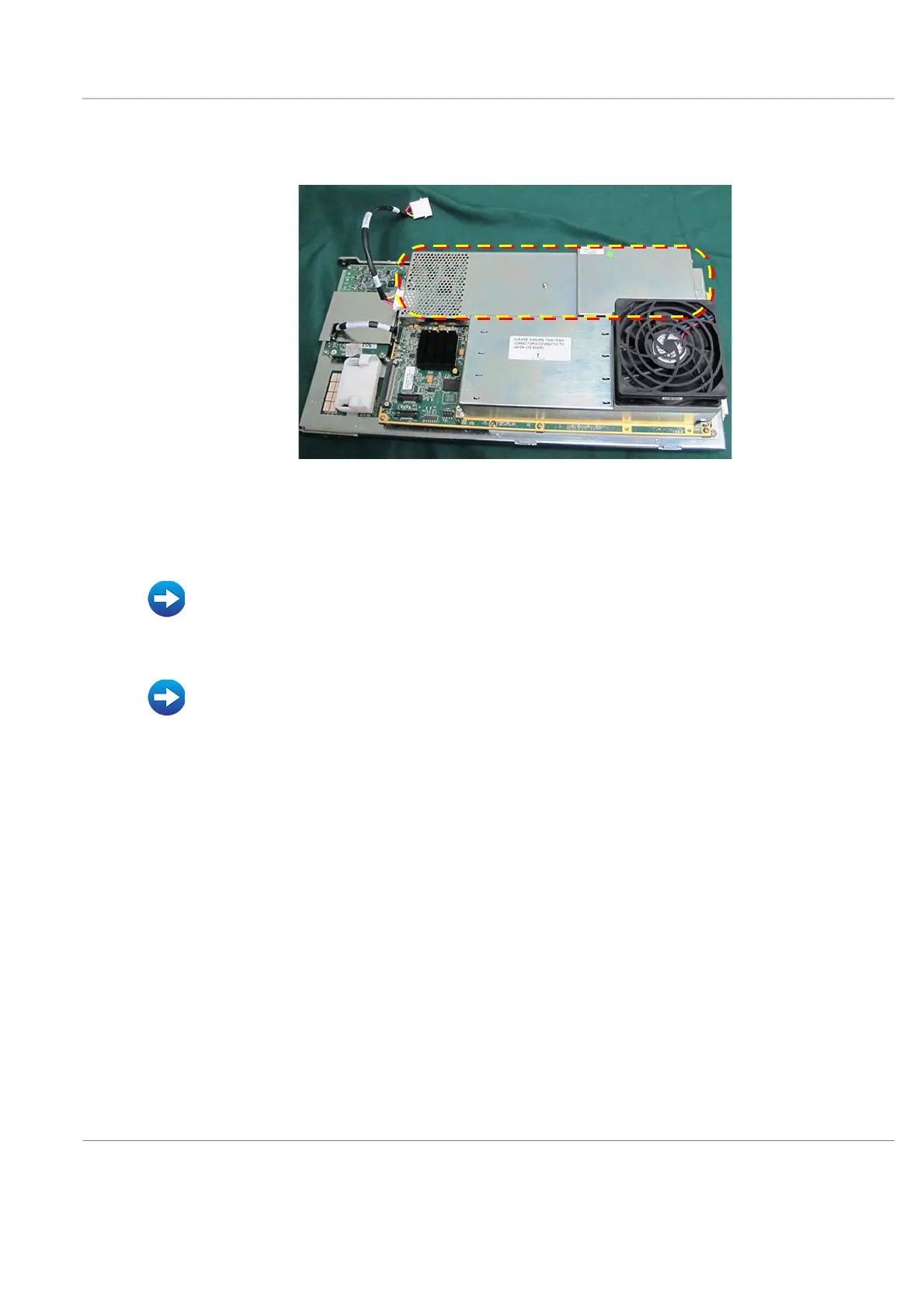

Figure 8-135 FEPS Located on the Front End Door Assembly
• Front End Door Assembly Closing and Installation Procedure on page 8 - 87
• Front Cover Installation Procedure on page 8 - 19
• DVD Cover Installation Procedure on page 8 - 12
• Right Side Cover Installation Procedure on page 8 - 10
• Air Inlet (Left Side) Cover Installation Procedure on page 8 - 8
