LCR-8000 Series User Manual
158

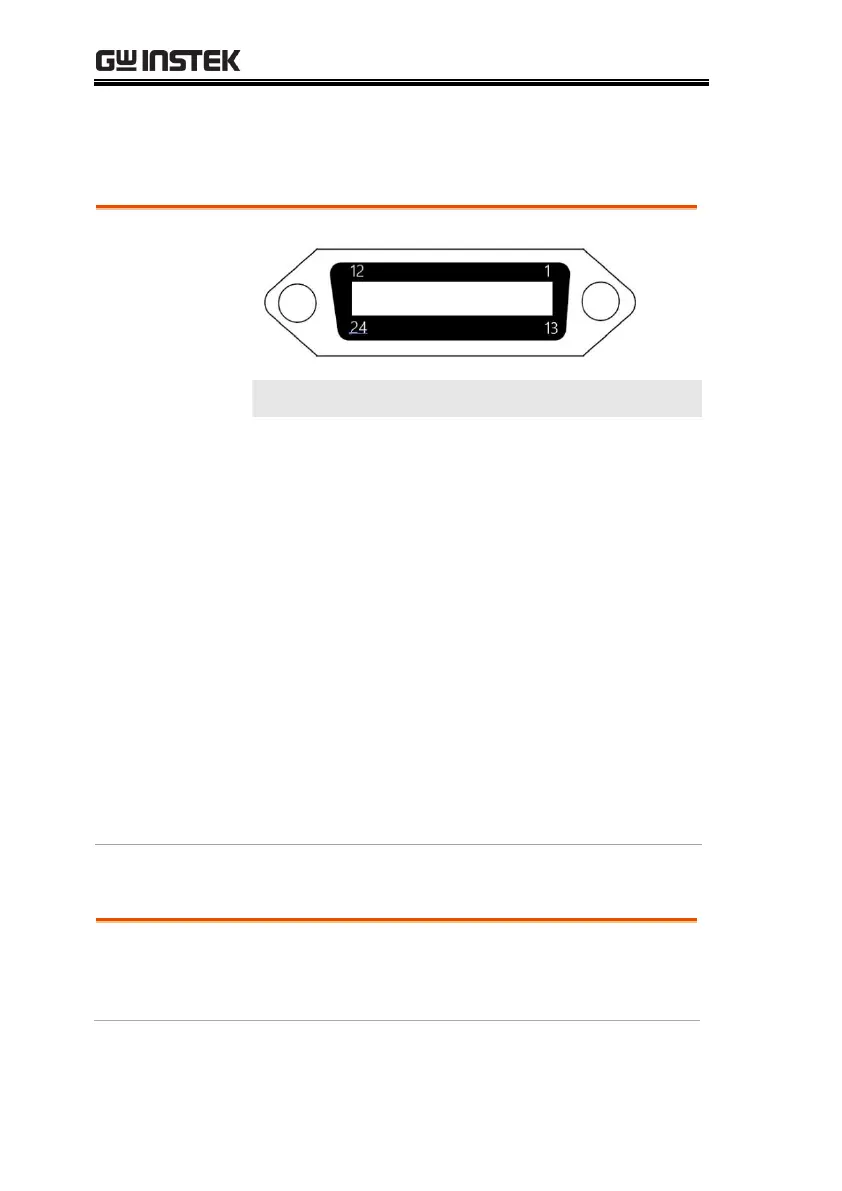

Configure GPIB Interface
24-pin block
GPIB Pin
Assignments
Pin
Definition
Pin
Definition
1
Dataline1
13
Dataline5
2
Dataline2
14
Dataline6
3
Dataline3
15
Dataline7
4
Dataline4
16
Dataline8
5
EOI
17
REN
6
DAV
18
Ground
7
NRFD
19
Ground
8
NDAC
20
Ground
9
IFC
21
Ground
10
SRQ
22
Ground
11
ATN
23
Ground
12
Shield
24
Signal ground
LAN Interface
10/100 Base T Ethernet, 8 pins
The instrument will be connected to the LAN (Local Area Network)
ports.
