GW Instek LCR Series User Manual

LCR-8000 Series User Manual
16
Appearance

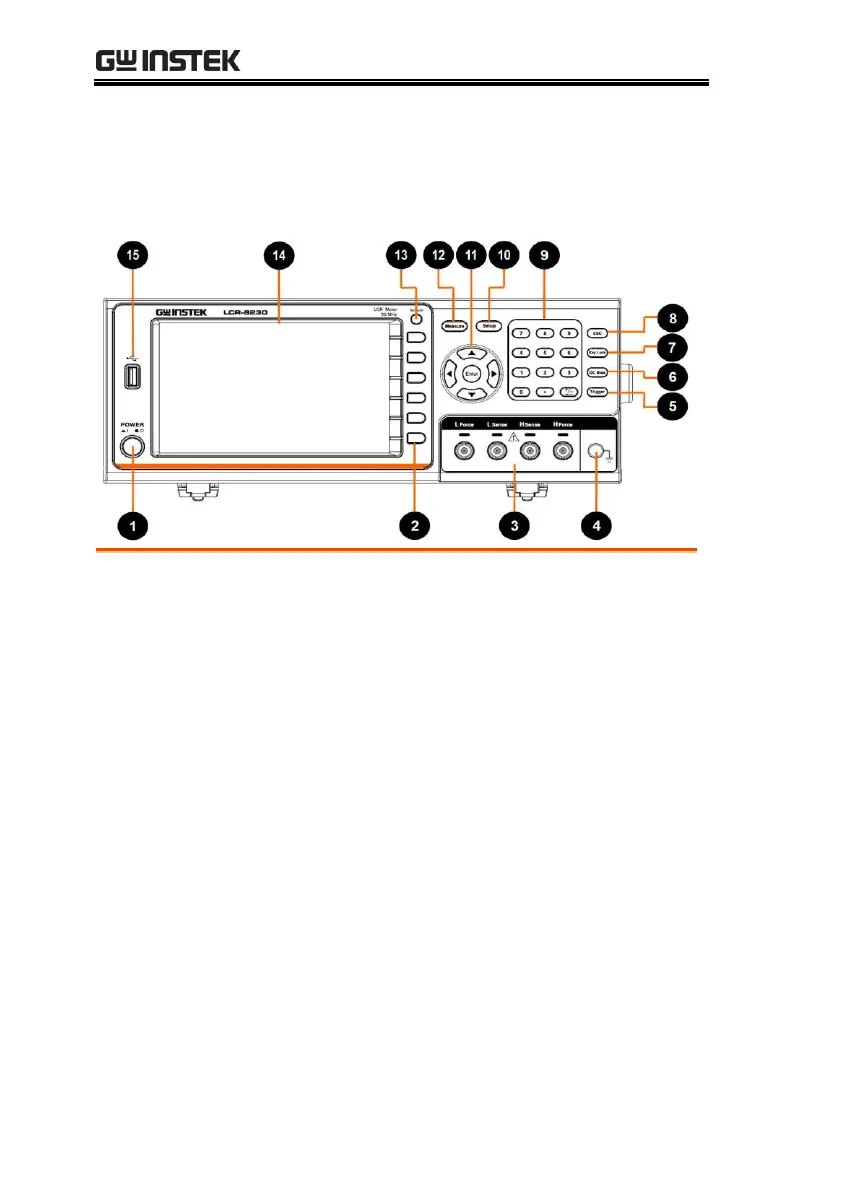

Front Panel
1
Power
This key is used to turn the device
instrument on/off.
2
Function
For executing the function indicated
for the position corresponding to the
Function key.
Soft keys for use to select
corresponding option which located
on the right of the LCD screen.
3
Test
terminals
Test terminals are used to connect test
fixture.
4
Ground
Terminal
This terminal is used for grounding.
5
Trigger
If trigger mode is set to external, this
key can be used to measure trigger.

GW Instek LCR Series Specifications

General

Brand	GW Instek
Model	LCR Series
Category	Measuring Instruments
Language	English
