GW Instek LCR Series User Manual

SWEEP (GRAPH MODE)
71

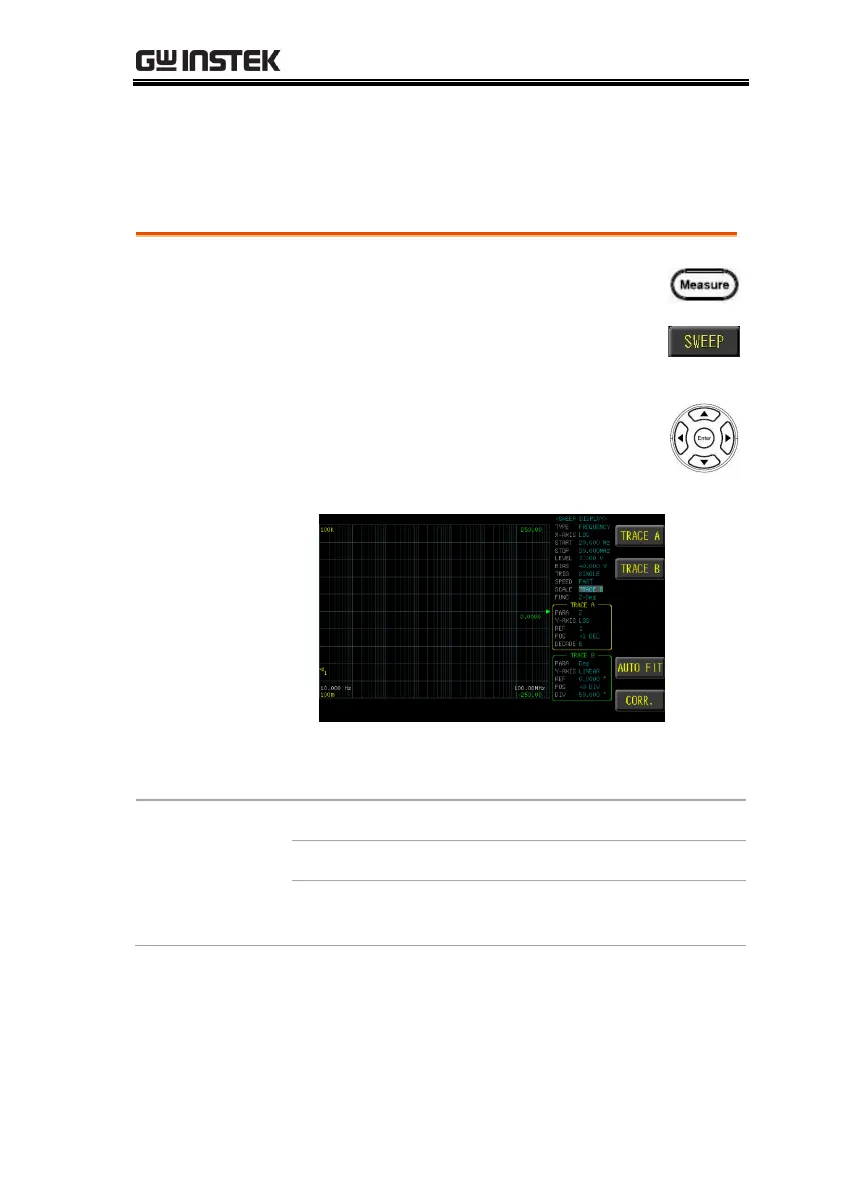

Setting scale
The scale of the Y-axis is displayed with the setting of trace A or
trace B.
Steps
1. Press the Measure button to enter
[MEAS DISPLAY] page, and then
press the SWEEP function button on
the right side of the LCD to enter the
[SWEEP DISPLAY] page.
2. Use arrow keys to move the cursor
and select SCALE item on the
[SWEEP DISPLAY] page.
3. Use option key on the right of the LCD screen
to select a scale type for this sweep item.
Available
parameter
TRACE A
Adjust with the trace A setting
TRACE B
Adjust with the trace B setting
AUTO
FIT
Automatically adjust the Y-axis scale
and position of the sweep graph
