GW Instek LCR Series User Manual

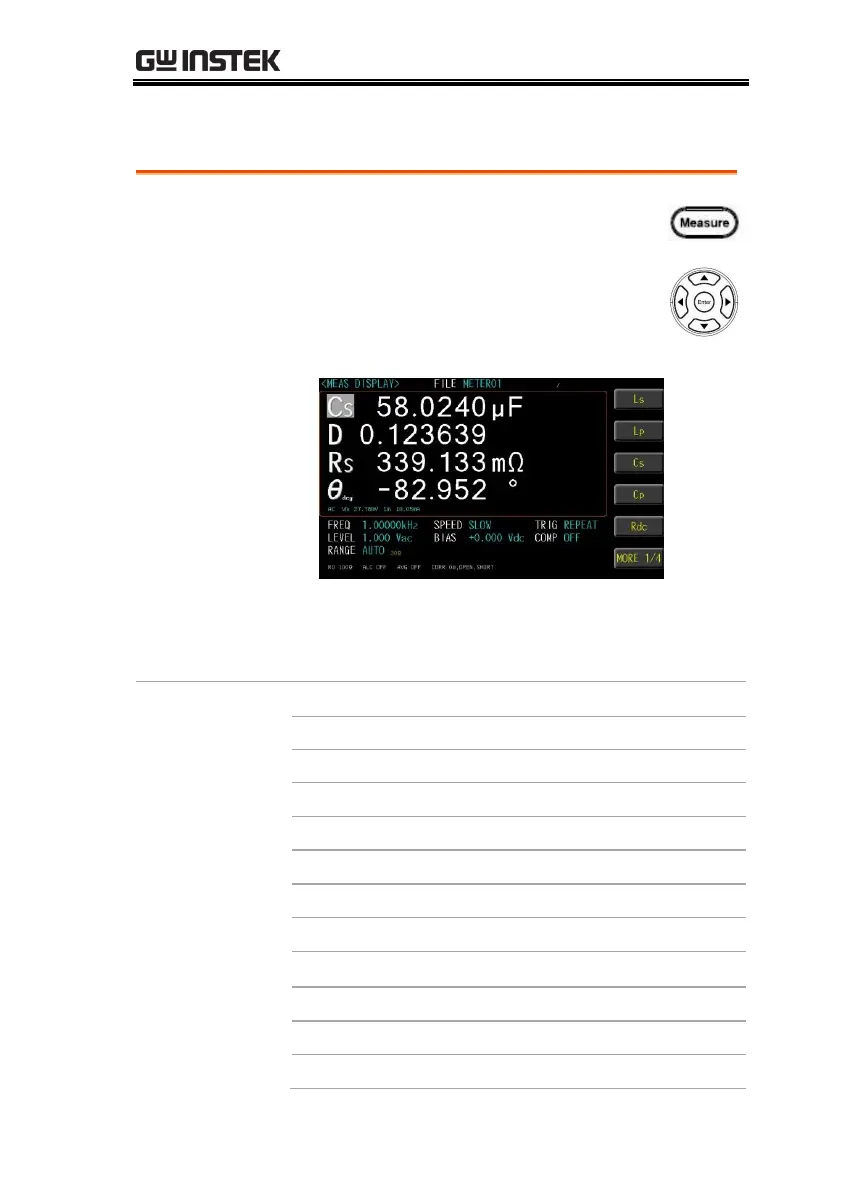

MEASURE (METER MODE)
25
Setting parameter
Steps
1. Press the Measure button to enter
[MEAS DISPLAY] page.
2. Use arrow keys to move the cursor
and select Parameter 1~4 item on the
[MEAS DISPLAY] page.
3. Use option key on the right of the LCD screen
to select a parameter for this measurement
item.
Parameter
Ls
Equivalent Series Inductance
Lp
Equivalent Parallel Inductance
Cs
Equivalent Series Capacitance
Cp
Equivalent Parallel Capacitance
Rdc
DC Resistance
Rs
Equivalent Series Resistance (ESR)
Rp
Equivalent Parallel Resistance
Z
Absolute value of impedance
θ
deg
Phase angle of impedance(degree)
θ
rad
Phase angle of impedance(radian)
Q
Quality Factor, (Q = 1/D)
D
Dissipation Factor
, Loss coefficient (tanδ)
